BYH 60V and 64V motive series
E-Bike Batteries
LiFePO4 battery packs for electric bicycles, combining long-cycle cells, integrated BMS protection and Bluetooth monitoring across four capacity configurations.
Product overview
Built around the application.
The YAHUA e-bike battery family is developed around the electrical, mechanical and duty-cycle requirements of the vehicle. Battery selection should be confirmed against controller current, charger profile, installation space and expected range.
High energy density and extended range
Large-format prismatic LiFePO4 cells support stable voltage output and extended two-wheel riding range.
More than 5,000 cycles
Cycle life exceeds 5,000 cycles at 0.5C and 100% depth of discharge across all four models.
Lightweight integrated format
Integrated LiFePO4 construction reduces pack weight compared with capacity-equivalent lead-acid systems; the actual difference depends on the selected battery configuration.
Bluetooth 4.0 monitoring
The configured mobile interface provides state of charge, voltage, current, temperature, cycle count and abnormal-alarm data.
Model overview

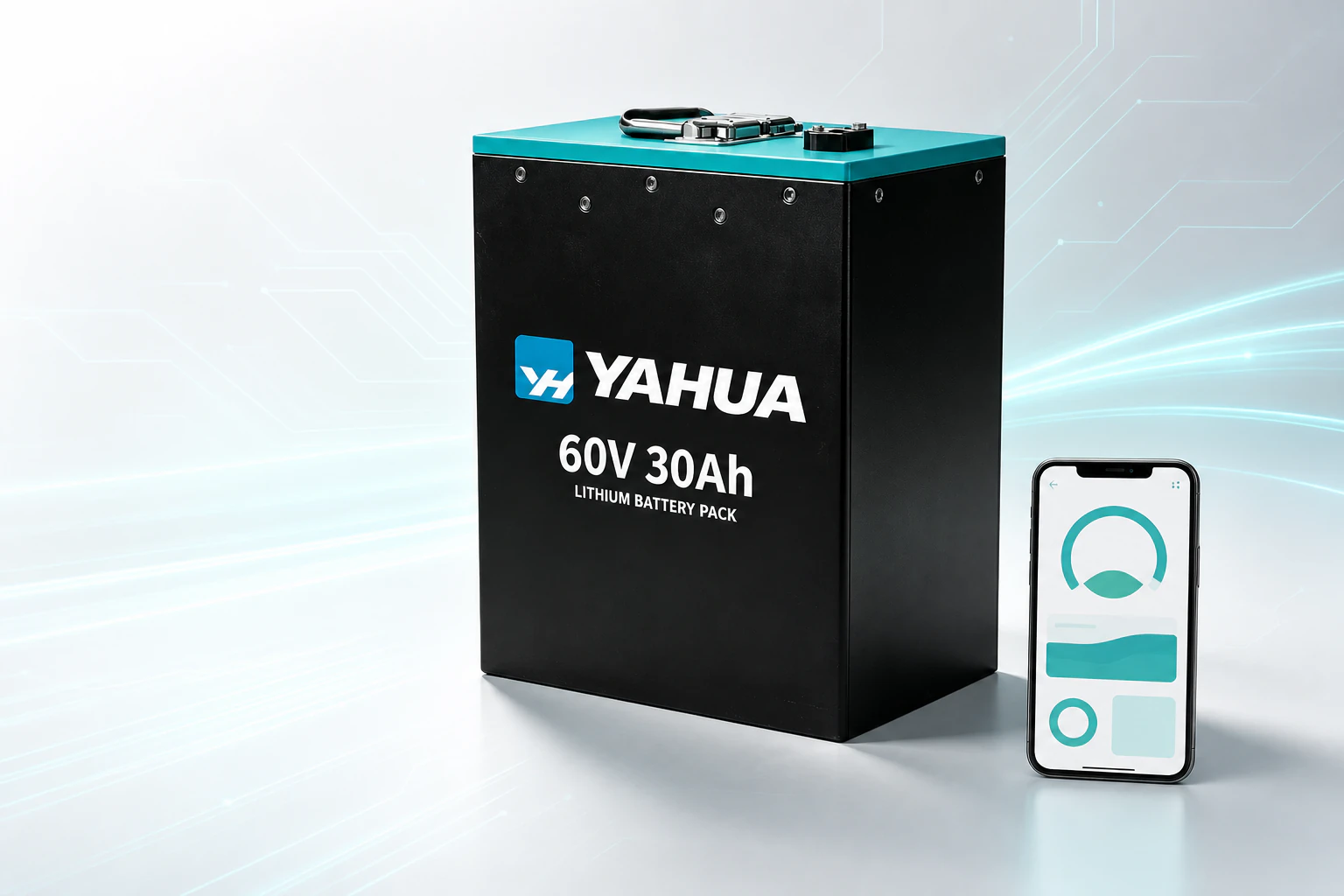

60V 30Ah
Lithium Battery Pack
Reliable power for electric two-wheel mobility
High energy density
Large-format prismatic LiFePO4 cells support stable power in a compact pack.
Long-cycle performance
Cycle life exceeds 5,000 cycles at 0.5C and 100% DOD.
Smart BMS protection
Voltage, current and temperature are monitored during operation.
Bluetooth 4.0 monitoring
The configured mobile interface shows charge, voltage, current, temperature, cycles and alarms.

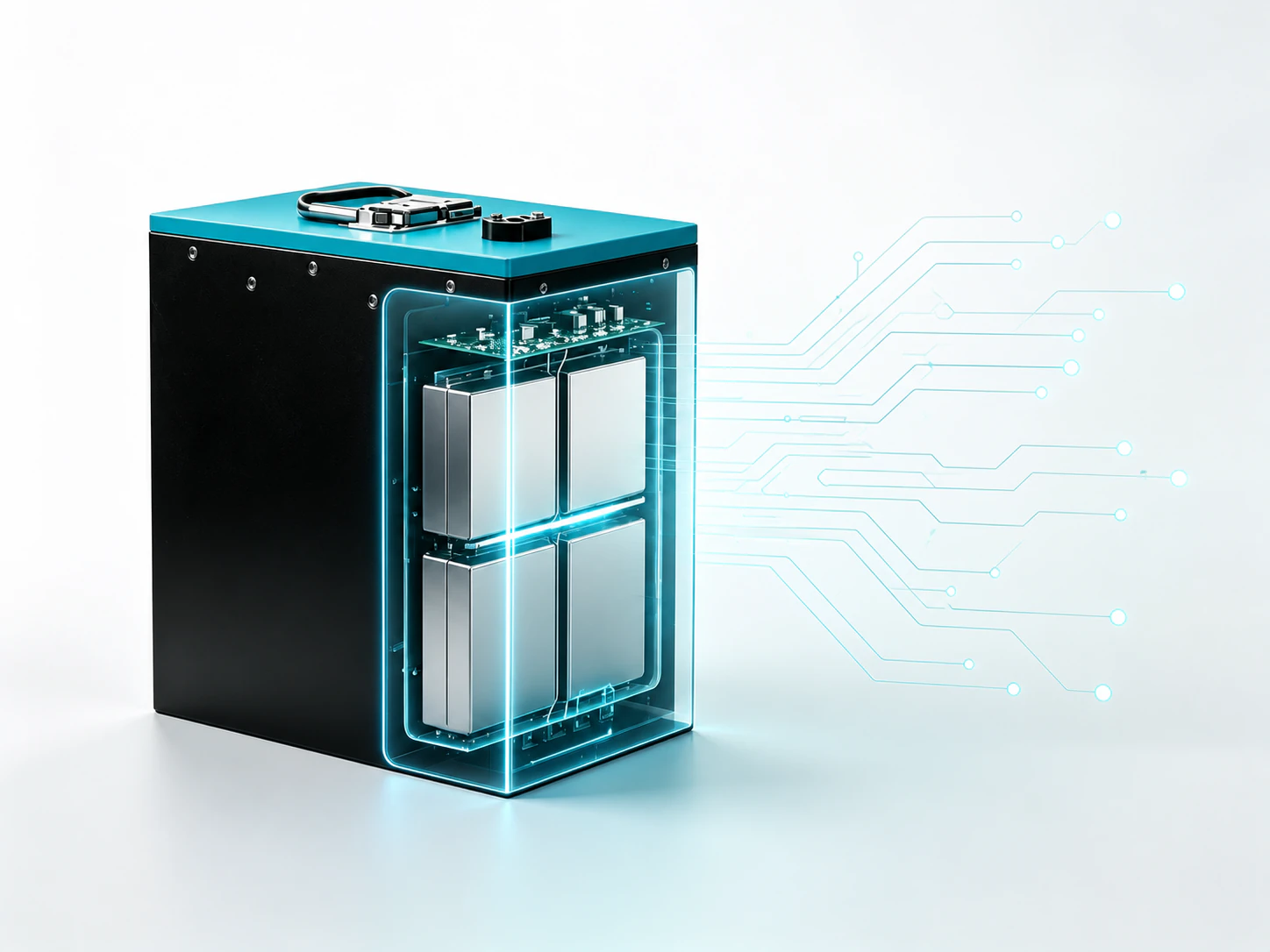

Protection architecture

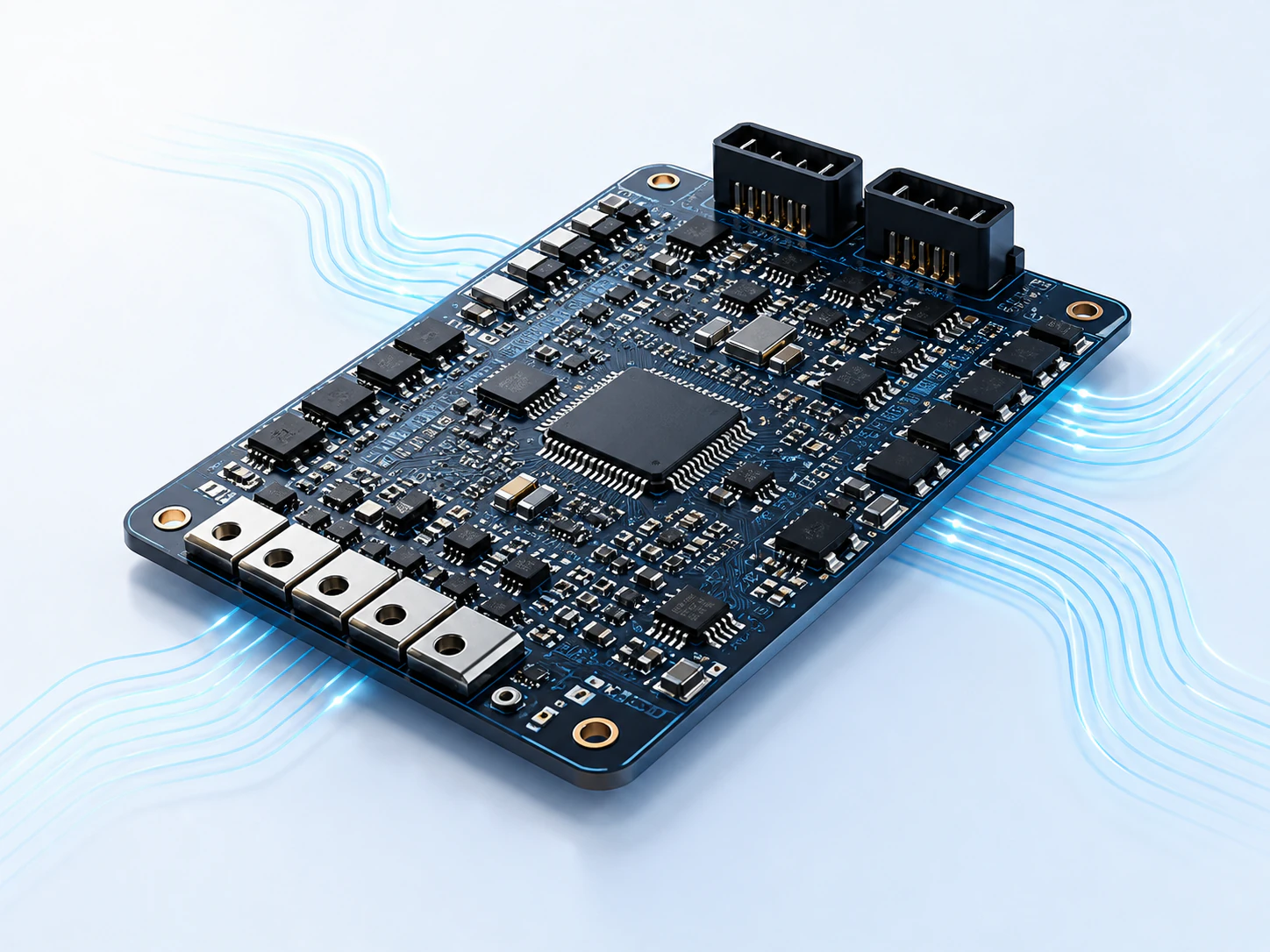

BMS protection function diagram
Built-in smart management for safer battery operation
Continuous voltage, current and temperature monitoringOvercharge protection
Stops charging when cell voltage exceeds the configured safe threshold.
Over-discharge protection
Disconnects output before damaging deep discharge.
Overcurrent protection
Limits discharge during high-load conditions.
Short-circuit protection
Cuts output when a short circuit is detected.
Temperature protection
Monitors pack temperature and protects cells from overheating.
Application engineering

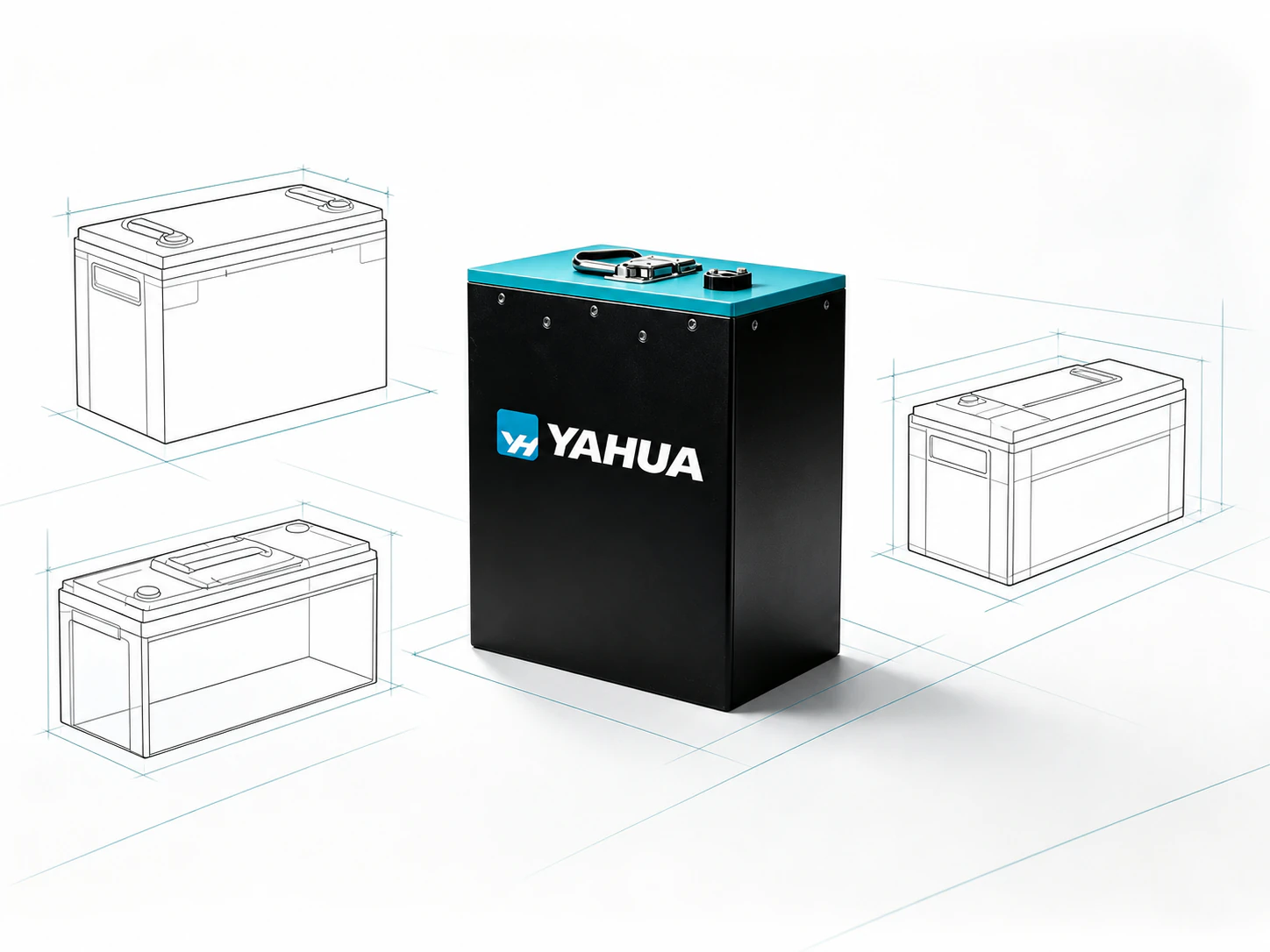

Customizable e-bike battery solutions
Tailored size, capacity and BMS design for electric two-wheel projects
Voltage and capacity
Match the electrical architecture and required range.
Enclosure and interface
Adapt dimensions, mounting and connectors to the vehicle.
Smart BMS configuration
Confirm current limits, communications and monitoring options.
Final voltage, capacity, enclosure and BMS settings require application engineering confirmation.
Model overview

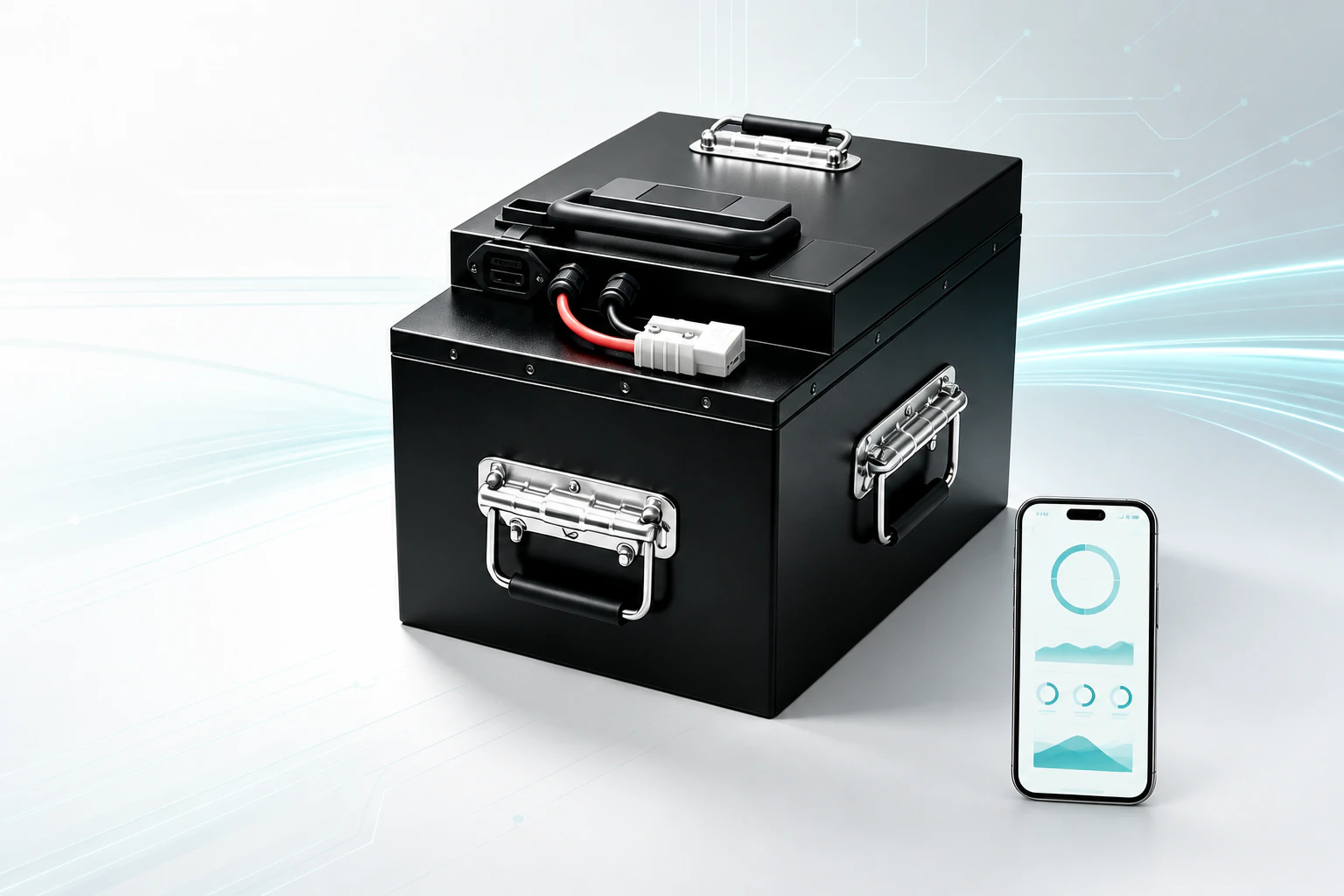

60V 45Ah
Lithium Battery Pack
Reliable power for electric two-wheel mobility
High energy density
Large-format prismatic LiFePO4 cells support stable power in a compact pack.
Long-cycle performance
Cycle life exceeds 5,000 cycles at 0.5C and 100% DOD.
Smart BMS protection
Voltage, current and temperature are monitored during operation.
Bluetooth 4.0 monitoring
The configured mobile interface shows charge, voltage, current, temperature, cycles and alarms.
Protection architecture
BMS protection function diagram
Built-in smart management for safer battery operation
Continuous voltage, current and temperature monitoringOvercharge protection
Stops charging when cell voltage exceeds the configured safe threshold.
Over-discharge protection
Disconnects output before damaging deep discharge.
Overcurrent protection
Limits discharge during high-load conditions.
Short-circuit protection
Cuts output when a short circuit is detected.
Temperature protection
Monitors pack temperature and protects cells from overheating.
Application engineering
Customizable e-bike battery solutions
Tailored size, capacity and BMS design for electric two-wheel projects
Voltage and capacity
Match the electrical architecture and required range.
Enclosure and interface
Adapt dimensions, mounting and connectors to the vehicle.
Smart BMS configuration
Confirm current limits, communications and monitoring options.
Final voltage, capacity, enclosure and BMS settings require application engineering confirmation.
Model overview

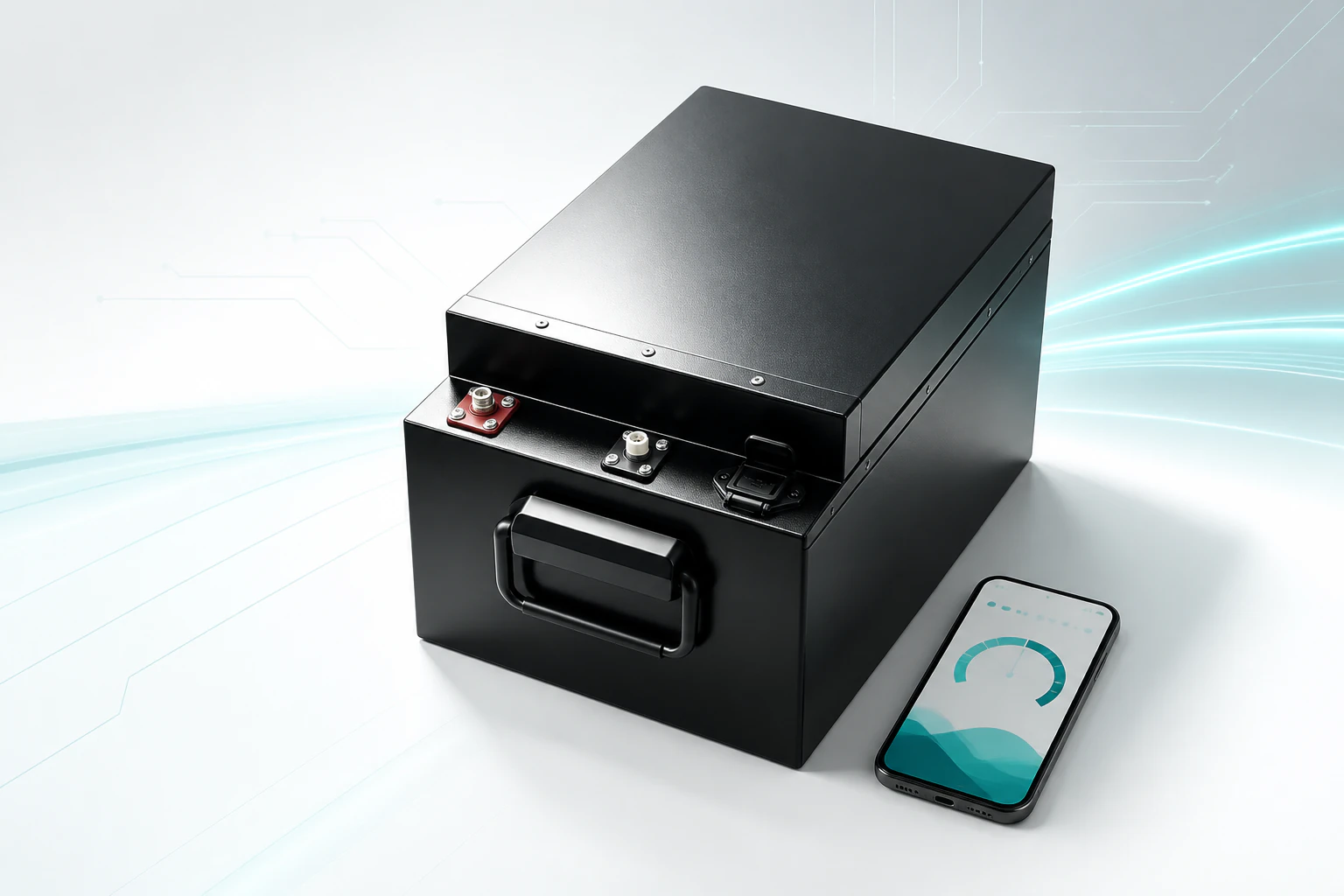

60V 60Ah
Lithium Battery Pack
Reliable power for electric two-wheel mobility
High energy density
Large-format prismatic LiFePO4 cells support stable power in a compact pack.
Long-cycle performance
Cycle life exceeds 5,000 cycles at 0.5C and 100% DOD.
Smart BMS protection
Voltage, current and temperature are monitored during operation.
Bluetooth 4.0 monitoring
The configured mobile interface shows charge, voltage, current, temperature, cycles and alarms.
Protection architecture
BMS protection function diagram
Built-in smart management for safer battery operation
Continuous voltage, current and temperature monitoringOvercharge protection
Stops charging when cell voltage exceeds the configured safe threshold.
Over-discharge protection
Disconnects output before damaging deep discharge.
Overcurrent protection
Limits discharge during high-load conditions.
Short-circuit protection
Cuts output when a short circuit is detected.
Temperature protection
Monitors pack temperature and protects cells from overheating.
Application engineering
Customizable e-bike battery solutions
Tailored size, capacity and BMS design for electric two-wheel projects
Voltage and capacity
Match the electrical architecture and required range.
Enclosure and interface
Adapt dimensions, mounting and connectors to the vehicle.
Smart BMS configuration
Confirm current limits, communications and monitoring options.
Final voltage, capacity, enclosure and BMS settings require application engineering confirmation.
Model overview

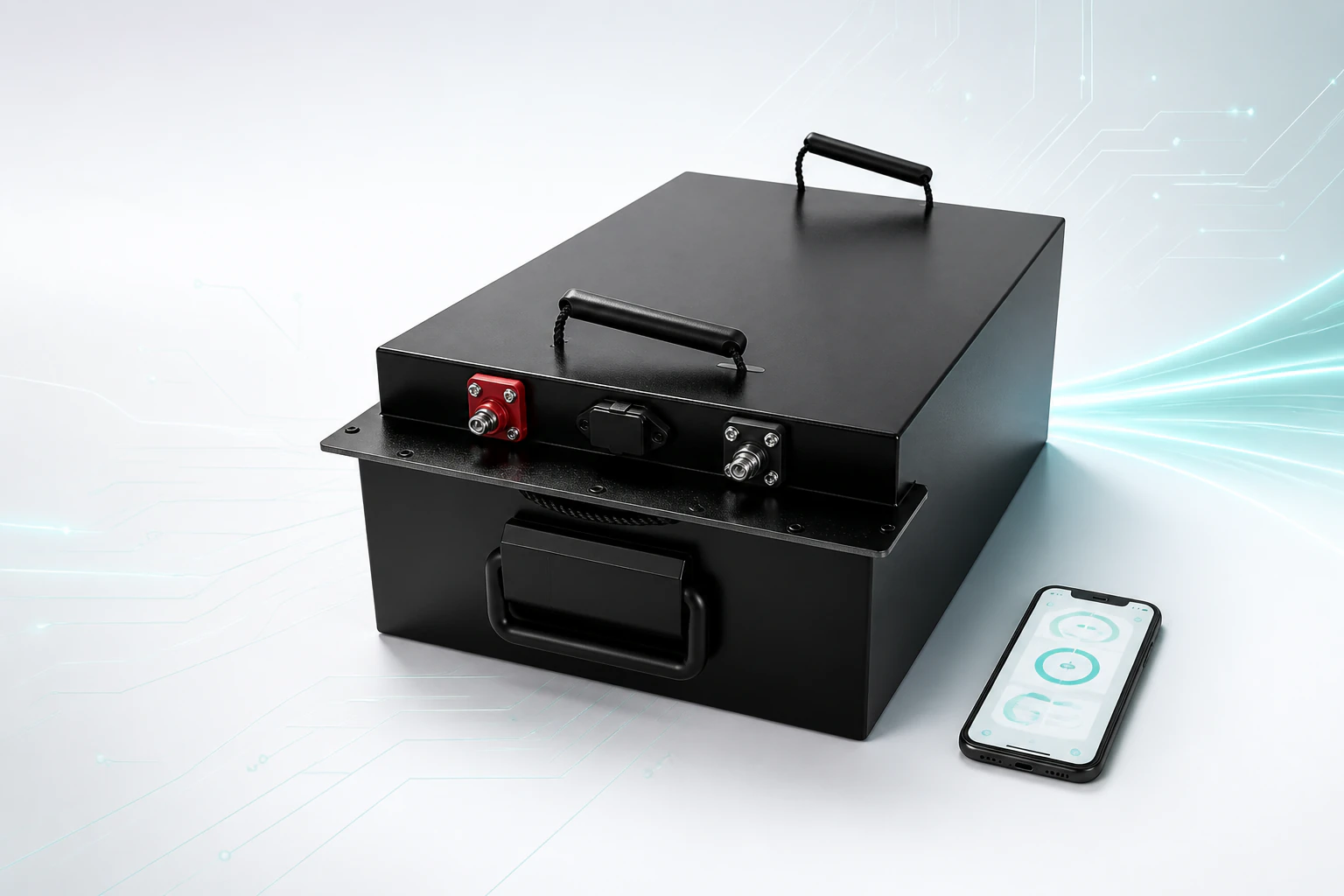

64V 60Ah
Lithium Battery Pack
Reliable power for electric two-wheel mobility
High energy density
Large-format prismatic LiFePO4 cells support stable power in a compact pack.
Long-cycle performance
Cycle life exceeds 5,000 cycles at 0.5C and 100% DOD.
Smart BMS protection
Voltage, current and temperature are monitored during operation.
Bluetooth 4.0 monitoring
The configured mobile interface shows charge, voltage, current, temperature, cycles and alarms.
Protection architecture
BMS protection function diagram
Built-in smart management for safer battery operation
Continuous voltage, current and temperature monitoringOvercharge protection
Stops charging when cell voltage exceeds the configured safe threshold.
Over-discharge protection
Disconnects output before damaging deep discharge.
Overcurrent protection
Limits discharge during high-load conditions.
Short-circuit protection
Cuts output when a short circuit is detected.
Temperature protection
Monitors pack temperature and protects cells from overheating.
Application engineering
Customizable e-bike battery solutions
Tailored size, capacity and BMS design for electric two-wheel projects
Voltage and capacity
Match the electrical architecture and required range.
Enclosure and interface
Adapt dimensions, mounting and connectors to the vehicle.
Smart BMS configuration
Confirm current limits, communications and monitoring options.
Final voltage, capacity, enclosure and BMS settings require application engineering confirmation.
Product parameters
Model-specific specifications.
Compare the model-specific electrical, mechanical and operating parameters. Final configuration remains subject to application engineering.
- Model
- BYH6030
- Nominal voltage
- 60.8V
- Nominal capacity
- 30Ah at 0.5C, 25°C
- Rated energy
- 1,824 Wh
- Battery type
- LiFePO4 lithium battery
- Cycle life
- >5,000 cycles at 0.5C, 100% DOD
- Monthly self-discharge
- <3%
- Weight
- 16 kg
- Dimensions
- 184 × 156 × 290 mm
- Charge/discharge efficiency
- 100% at 0.2C
- Certifications
- CE · IEC 62619 · UN38.3
CE · IEC 62619 · UN38.3
- Model
- BYH6045
- Nominal voltage
- 60.8V
- Nominal capacity
- 45Ah at 0.5C, 25°C
- Rated energy
- 2,736 Wh
- Battery type
- LiFePO4 lithium battery
- Cycle life
- >5,000 cycles at 0.5C, 100% DOD
- Monthly self-discharge
- <3%
- Weight
- 19 kg
- Dimensions
- 370 × 220 × 190 mm
- Charge/discharge efficiency
- 100%
- Certifications
- CE · IEC 62619 · UN38.3
CE · IEC 62619 · UN38.3
- Model
- BYH6060
- Nominal voltage
- 60.8V
- Nominal capacity
- 60Ah at 1C, 25°C
- Rated energy
- 3,648 Wh
- Battery type
- LiFePO4 lithium battery
- Cycle life
- >5,000 cycles at 0.5C, 100% DOD
- Monthly self-discharge
- <3%
- Weight
- 38 kg
- Dimensions
- 365 × 240 × 185 mm
- Charge/discharge efficiency
- 100%
- Certifications
- CE · IEC 62619 · UN38.3
CE · IEC 62619 · UN38.3
- Model
- BYH6460
- Nominal voltage
- 64V
- Nominal capacity
- 60Ah at 1C, 25°C
- Rated energy
- 3,840 Wh
- Battery type
- LiFePO4 lithium battery
- Cycle life
- >5,000 cycles at 0.5C, 100% DOD
- Monthly self-discharge
- <3%
- Weight
- 42 kg
- Dimensions
- 365 × 240 × 185 mm
- Charge/discharge efficiency
- 100%
- Certifications
- CE · IEC 62619 · UN38.3
CE · IEC 62619 · UN38.3
Applications
Where this family fits.
Model selection should follow the real load, duty cycle, interface, installation environment and destination-market requirements.
Daily electric-bike commuting
Longer-range and heavy-load riding
OEM electric mobility platforms
Engineering scope
One family, configurable layers.
Product features
- Incoming cell screening for internal resistance and voltage consistency
- Cell safety and cycle-life testing within the quality-control process
- Flame-retardant, high-temperature-resistant BMS, enclosure and harness materials
- Full-pack inspection covering BMS protection, Bluetooth communication, voltage consistency and enclosure sealing
- Unique serial-number traceability for maintenance and quality follow-up
- Field-feedback review for BMS tuning, cell matching and after-sales response
Customization
- Voltage and capacity
- Enclosure dimensions and interface
- Vehicle connector, controller-current and charger-profile matching
- Smart BMS settings and communication
- OEM branding and application-specific integration
Product advantages
