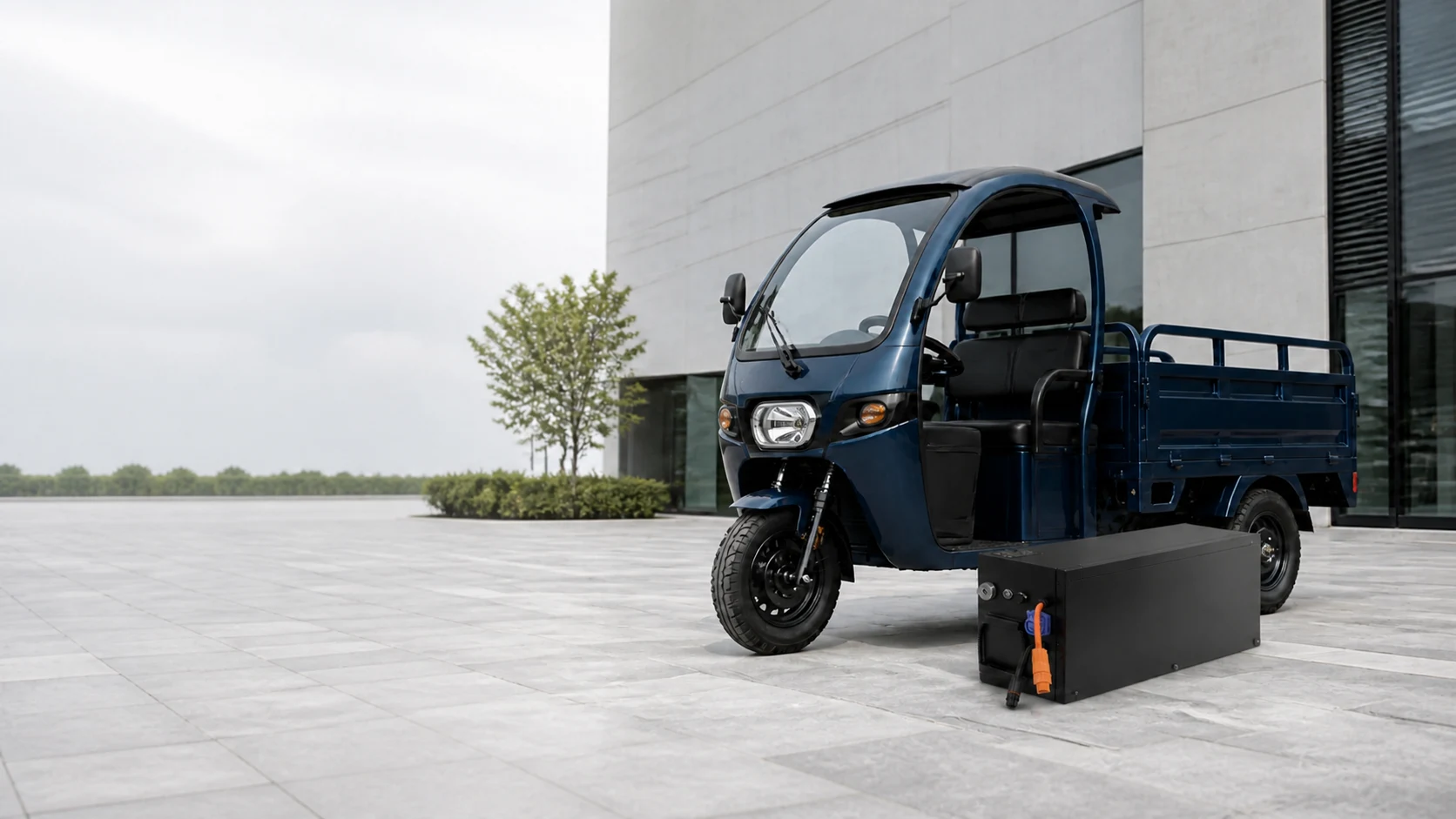

BYH 76V / 76.8V motive series
Electric Tricycle Batteries
76V / 76.8V IP67 LiFePO4 battery packs in 100Ah and 125Ah configurations for electric tricycles, golf carts and related light utility vehicles.
Model range
Select a configuration.
Product overview
Built around the application.
The 76V / 76.8V tricycle series provides two energy and current configurations in a shared protected enclosure format. Vehicle integration must confirm motor-controller demand, regenerative current, charger profile, mounting, Bluetooth requirements and duty cycle.
The specification section presents both parameter blocks separately wherever their values add detail or differ.
All-weather performance
Designed for outdoor operation from -4°F to 131°F, subject to the final battery configuration.
Rugged and vibration resistant
A steel enclosure supports mobile applications exposed to routine shock and vibration.
10+ year long life
The platform is designed for more than ten years of service; actual life depends on operating conditions.
Zero maintenance
Eliminates the routine watering and corrosion management associated with flooded lead-acid batteries.

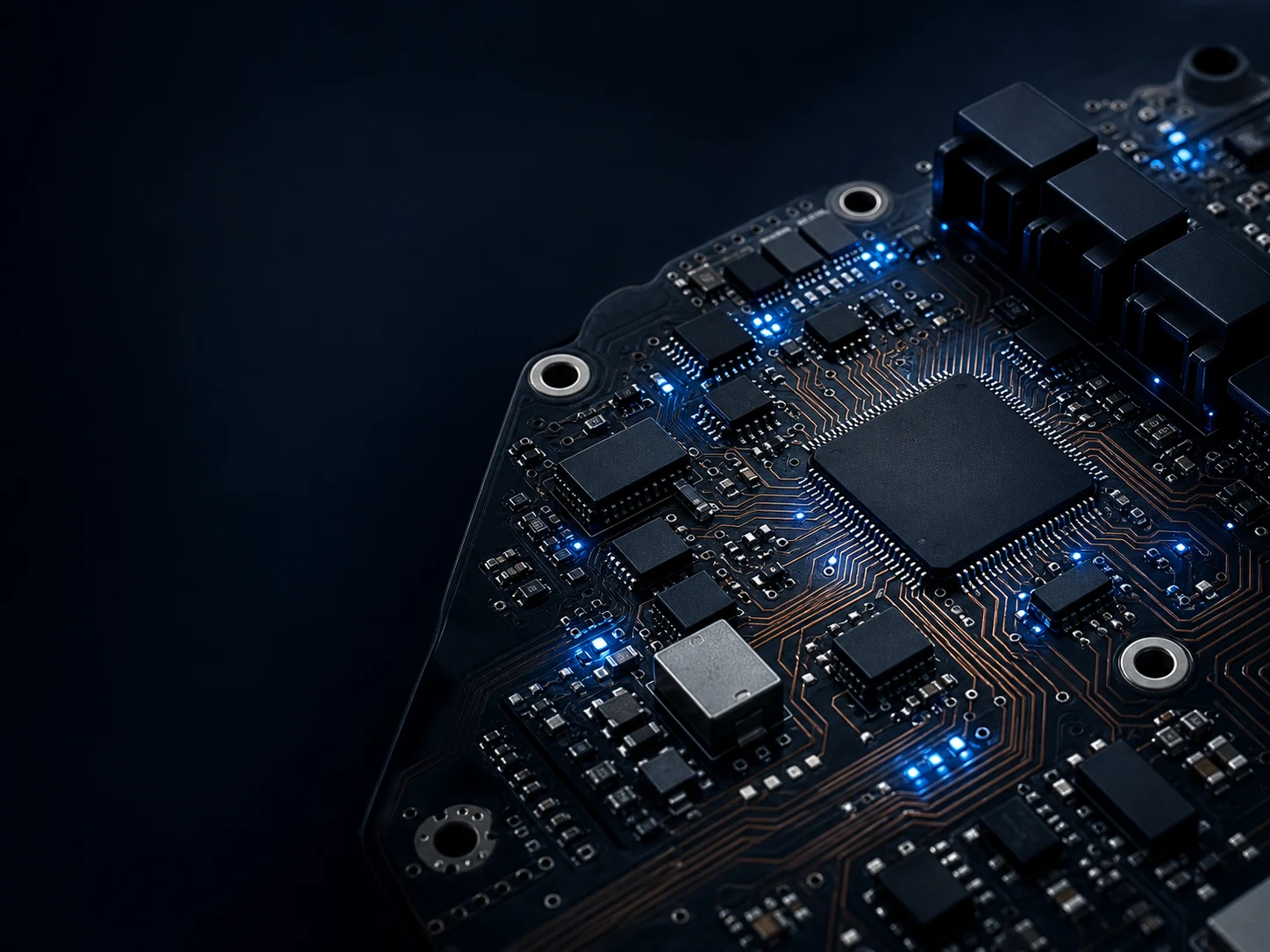

Smart BMS protection
Monitors voltage, current and temperature with multilayer protective functions.
High energy density
Stores more usable energy within a compact motive-vehicle footprint.
Bluetooth monitoring
Supports mobile access to battery status when the selected BMS configuration includes Bluetooth.
Reliable deep-cycle power
Delivers stable output across repeated daily charge and discharge cycles.
Product parameters
Model-specific specifications.
Compare the model-specific electrical, mechanical and operating parameters. Final configuration remains subject to application engineering.
Primary product parameters
- Model
- BYH76100AH
- Nominal voltage
- 76V
- Nominal capacity
- 100Ah
- Energy
- 7.6 kWh
- Battery type
- LiFePO4 lithium battery
- Maximum charge current
- 25–60A (0.2C–0.5C)
- Maximum continuous discharge current
- 100A
- Weight
- Approx. 75 kg / 165.35 lb
- Dimensions
- 604 × 410 × 237.3 mm
- Cycle life
- >5,000
- Certifications
- CE · IEC 62619 · UN38.3
- Charge temperature
- 0–60°C
- Discharge temperature
- -20–60°C
- Storage temperature
- 10–45°C
- Charge/discharge efficiency
- 100% at 0.2C
- IP rating
- IP67
Additional TECH & SPECS block
- Nominal voltage / discharge voltage range
- 76.8V
- Stored energy
- 7.68 kWh
- Reference dimensions
- 604 × 410 × 237.3 mm
- Weight without counterweight
- 147.71 ± 11.02 lb (67 ± 5 kg)
- Driving range
- 60–70 miles (97–113 km)
- Continuous charge / discharge
- 20A / 100A
- Maximum charge / discharge current
- 40A / 300A (5s)
- Charge temperature
- 32–131°F (0–55°C)
- Discharge temperature
- -4–131°F (-20–55°C)
- Storage — 1 month
- -4–113°F (-20–45°C)
- Storage — 1 year
- 32–95°F (0–35°C)
- Casing material
- Steel
- IP rating
- IP67
CE · IEC 62619 · UN38.3
Primary product parameters
- Model
- BYH76125AH
- Nominal voltage
- 76V
- Nominal capacity
- 125Ah
- Energy
- 9.6 kWh
- Battery type
- LiFePO4 lithium battery
- Maximum charge current
- 25–60A (0.2C–0.5C)
- Maximum continuous discharge current
- 125A
- Weight
- Approx. 80 kg / 175.35 lb
- Dimensions
- 604 × 410 × 237.3 mm
- Cycle life
- >5,000
- Certifications
- CE · IEC 62619 · UN38.3
- Charge temperature
- 0–60°C
- Discharge temperature
- -20–60°C
- Storage temperature
- 10–45°C
- Charge/discharge efficiency
- 100% at 0.2C
- IP rating
- IP67
Additional TECH & SPECS block
- Nominal voltage / discharge voltage range
- 76.8V
- Stored energy
- 9.6 kWh
- Reference dimensions
- 604 × 410 × 237.3 mm
- Weight without counterweight
- 176 ± 11.02 lb (75 ± 5 kg)
- Driving range
- 80–100 miles (129–161 km)
- Continuous charge / discharge
- 20A / 100A
- Maximum charge / discharge current
- 40A / 300A (5s)
- Charge temperature
- 32–131°F (0–55°C)
- Discharge temperature
- -4–131°F (-20–55°C)
- Storage — 1 month
- -4–113°F (-20–45°C)
- Storage — 1 year
- 32–95°F (0–35°C)
- Casing material
- Steel
- IP rating
- IP67
CE · IEC 62619 · UN38.3
Applications
Where this family fits.
Model selection should follow the real load, duty cycle, interface, installation environment and destination-market requirements.

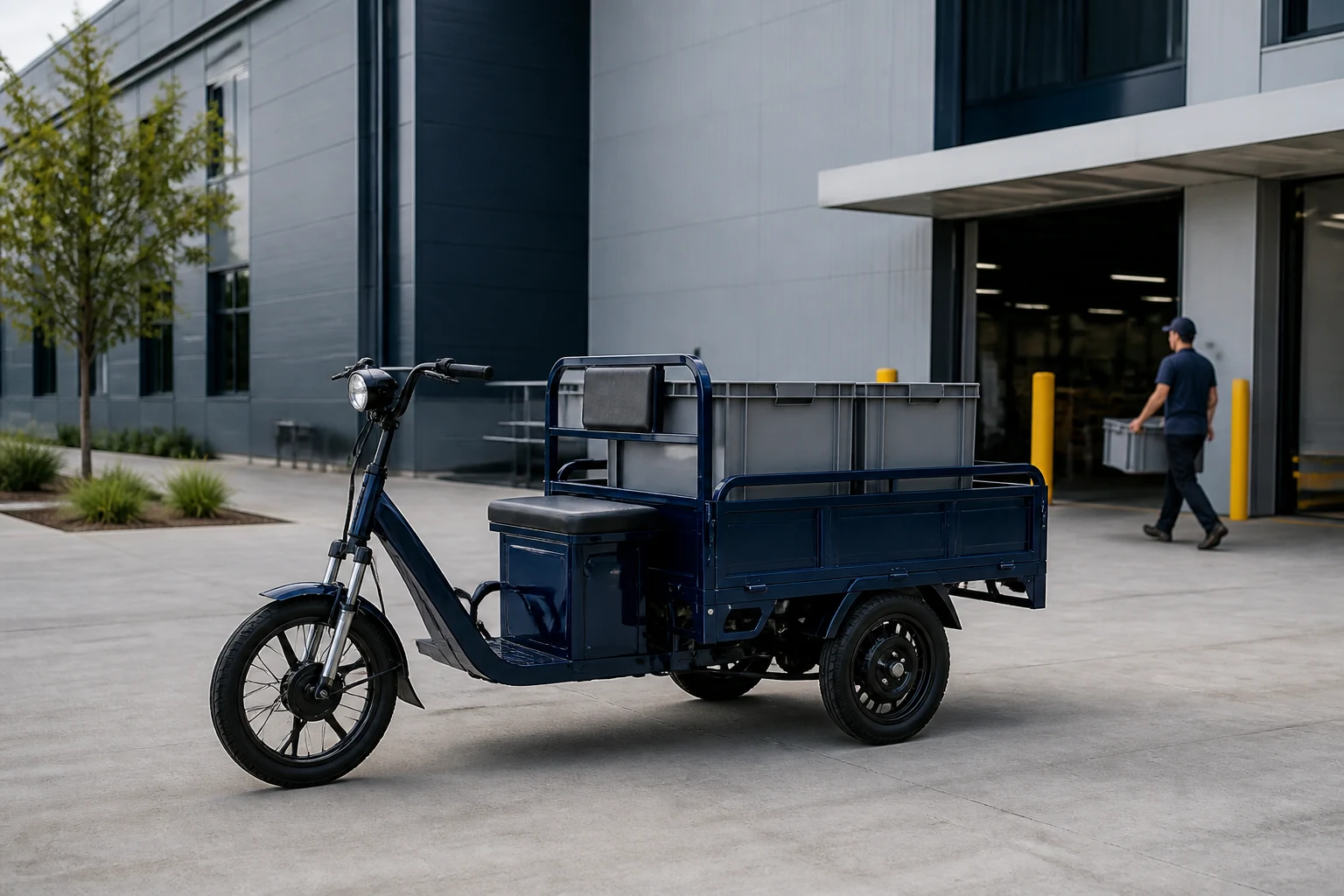

Passenger and cargo electric tricycles
Supports daily passenger transport and last-mile cargo duty when matched to the vehicle controller, charger and operating profile.
Golf carts and low-speed utility vehicles
The shared motive-battery platform can also support compatible low-speed vehicles after interface and duty-cycle confirmation.
OEM motive battery integration
Connector, BMS current settings, mounting and branding can be matched to the vehicle platform.
Lithium upgrade & Smart BMS
Smarter than lead-acid. Protected by design.
Product features
- Longer cycle life reduces frequent battery replacement
- Maintenance-free design eliminates watering and corrosion
- Higher energy density saves space and supports longer operation
- All-weather performance supports work from -4°F to 131°F
- Shared 604 × 410 × 237.3 mm steel enclosure footprint
Customization
- Vehicle interface and connector
- BMS current settings
- Mounting and OEM branding
