BYH7230 electric motorcycle battery

Electric Motorcycle Battery

A 73.6V 30Ah LiFePO4 battery pack for electric motorcycles, combining 2,208 Wh of energy, long-cycle cells, smart BMS protection and Bluetooth 4.0 monitoring.

Energy2,208 Wh

Capacity30Ah

Weight23 kg

Size420 × 230 × 260 mm

Discuss this product View specifications

Selected model73.6V 30Ah

Product overview

Built around the application.

The BYH7230 is developed for the electrical, mechanical and duty-cycle requirements of electric motorcycles. Its 73.6V, 30Ah LiFePO4 architecture provides 2,208 Wh of rated energy in a 420 × 230 × 260 mm enclosure.

Final integration must confirm controller demand, peak and continuous current, charger profile, installation space, environmental exposure and the expected riding range before the pack is selected and configured for a vehicle.

High energy density and extended range

Large-format prismatic LiFePO4 cells support stable voltage delivery and extended two-wheel riding range.

More than 5,000 cycles

Cycle life exceeds 5,000 cycles at 0.5C and 100% depth of discharge.

Compact integrated enclosure

The 420 × 230 × 260 mm pack consolidates the cells, BMS and vehicle interfaces in one transportable enclosure.

Real-time battery visibility

Bluetooth 4.0 monitoring provides state of charge, voltage, current, temperature, cycle count and abnormal-alarm data.

YAHUA BYH7230 electric motorcycle battery with high-energy-density, smart BMS and Bluetooth monitoring features

BMS protection diagram for the YAHUA 72V 30Ah battery showing overcharge, over-discharge, overcurrent, short-circuit and temperature protection

YAHUA BYH7230 battery with custom enclosure, capacity and BMS configuration options

Product features

System advantages

Overcharge and over-discharge protection

The smart BMS stops charging above the safe voltage limit and prevents deep discharge.

Overcurrent and short-circuit protection

Output is limited under high-load conditions and disconnected when a short circuit is detected.

Temperature monitoring

Continuous temperature monitoring protects the cells from overheating during operation.

Bluetooth 4.0 monitoring

The mobile interface provides state of charge, voltage, current, temperature, cycle count and alarm information.

Protection behavior and BMS thresholds must be confirmed for the vehicle controller, charger and duty cycle.

Product parameters

Model-specific specifications.

Compare the model-specific electrical, mechanical and operating parameters. Final configuration remains subject to application engineering.

Selected modelBYH7230

Model: BYH7230
Nominal voltage: 73.6V
Nominal capacity: 30Ah at 0.5C, 25°C
Rated energy: 2,208 Wh
Battery type: LiFePO4 lithium battery
Cycle life: >5,000 cycles at 0.5C, 100% DOD
Monthly self-discharge: <3%
Weight: 23 kg
Dimensions: 420 × 230 × 260 mm
Charge/discharge efficiency: 100% at 0.2C
Certifications: CE · IEC 62619 · UN38.3

Certifications

CE · IEC 62619 · UN38.3

Applications

Where this family fits.

Model selection should follow the real load, duty cycle, interface, installation environment and destination-market requirements.

Electric motorcycles

Motive power for electric motorcycles requiring a compact 73.6V LiFePO4 pack.

Long-distance commuting

Stable voltage output supports daily and longer-range two-wheel travel.

Sloped and high-load routes

Designed for riding conditions where consistent discharge matters.

OEM two-wheel platforms

Enclosure, electrical interface and BMS settings can be developed around the vehicle platform.

Engineering scope

One family, configurable layers.

Product features

Incoming cell checks for internal resistance and voltage consistency
Cell safety and cycle-life testing before pack assembly
Flame-retardant, high-temperature-resistant BMS, enclosure and harness materials
100% finished-pack inspection covering BMS protection, Bluetooth communication, voltage consistency and enclosure sealing
Unique serial-number traceability for after-sales support
Ongoing field-feedback review for BMS and cell-matching improvement

Customization

Voltage and capacity configuration, including 12Ah to 100Ah options where engineering permits
Enclosure size and shape for the available installation space
Vehicle connector, charger profile and controller-current matching
Smart BMS settings and communication interface
OEM branding and application-specific integration

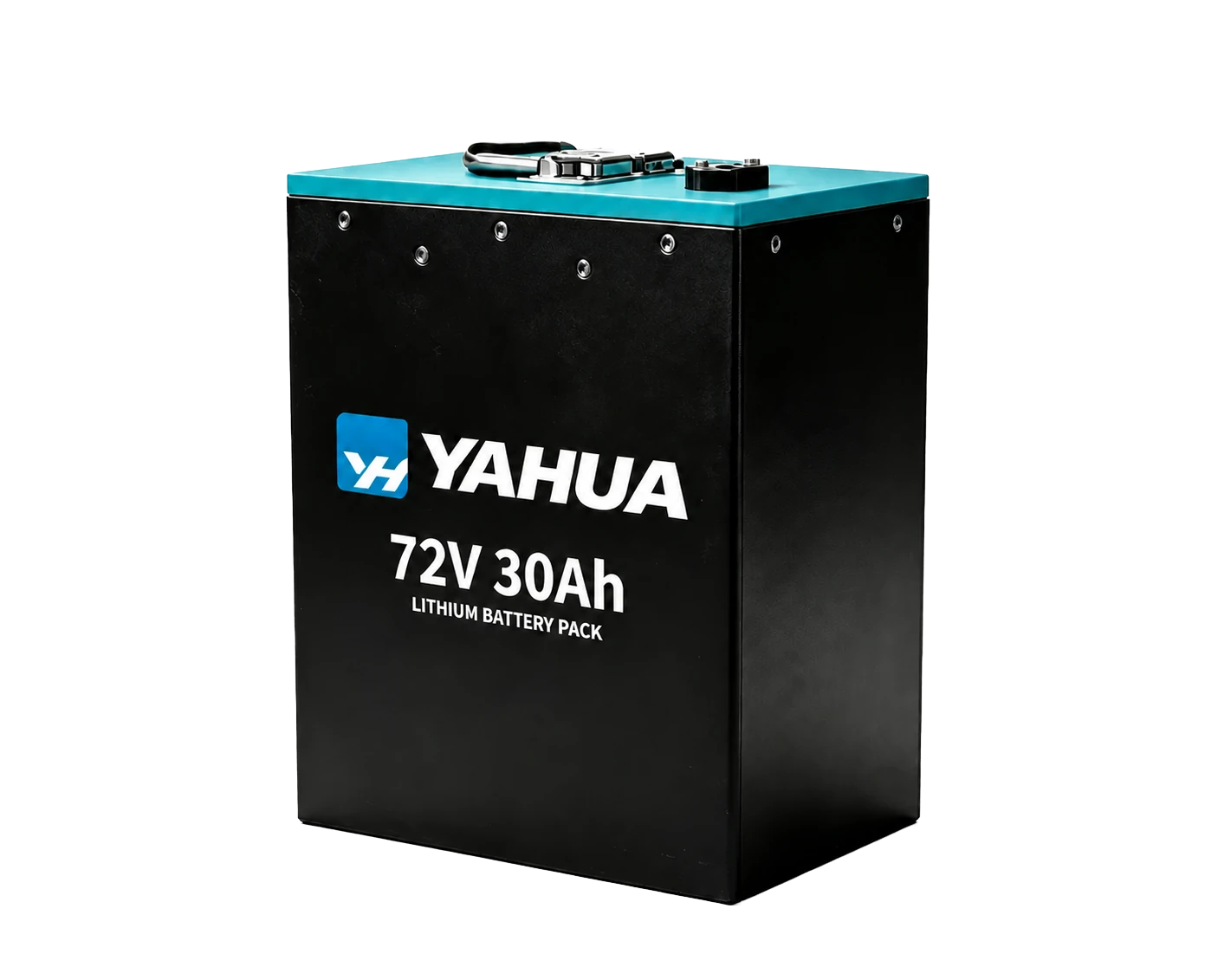

YAHUA BYH7230 72V 30Ah electric motorcycle battery on a clean white studio background

Product advantages

Core advantages.

Controlled cell selectionResistance, voltage-consistency, safety and cycle-life checks are completed before pack assembly.

Full-pack verificationEvery finished pack undergoes BMS, Bluetooth, voltage-consistency and sealing inspection before delivery.

Lifecycle traceabilityA unique serial number supports product history, maintenance and quality follow-up.

Technical support loopUser feedback is tracked to support BMS tuning, cell matching and after-sales response.
