Third-generation portable AC/DC energy storage

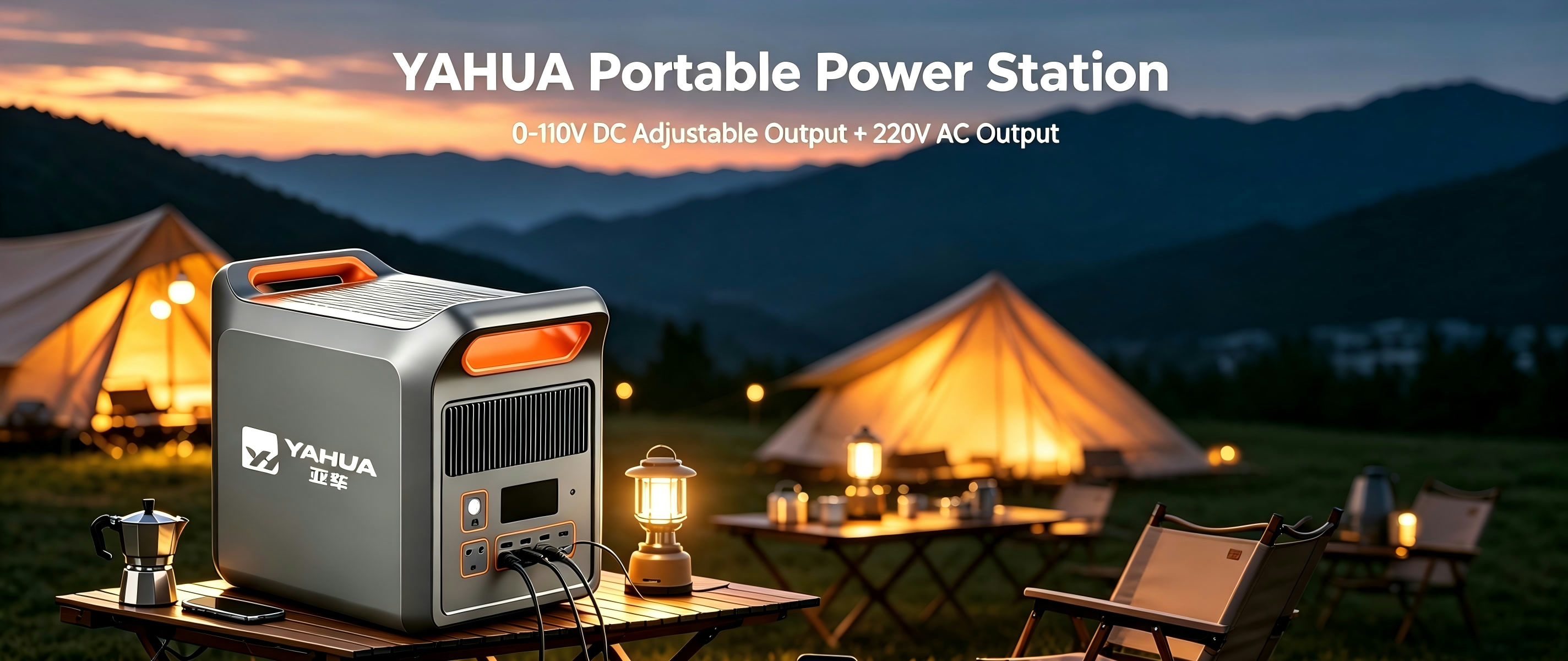

2.6 kWh Portable Power Station
A 2.6 kWh LiFePO4 portable power station with 2.4 kW rated output, 220V AC supply and selectable adjustable DC output for rapid outdoor and temporary deployment.
Product overview
Built around the application.
The YAHUA third-generation portable AC/DC energy storage system combines 2.6 kWh of LiFePO4 battery capacity with 2.4 kW rated output. It provides 220V AC power and selectable 24V, 48V, 72V, 96V and 110V DC output for applications that need quick deployment without a large fixed power supply.
The system supports outdoor camping, live streaming, mobile offices, aerial photography, night-market stalls and RV use, together with emergency lighting.
Selectable DC output
Supports 24V, 48V, 72V, 96V and 110V DC setpoints alongside 220V AC output.
Rapid deployment
A compact enclosure weighing no more than 23 kg supports temporary and outdoor use.
Outdoor-oriented system
IP54 protection, forced-air cooling and a −20°C to 50°C operating range support outdoor use.
Emergency lighting
An integrated LED light supports temporary illumination when fixed power is unavailable.

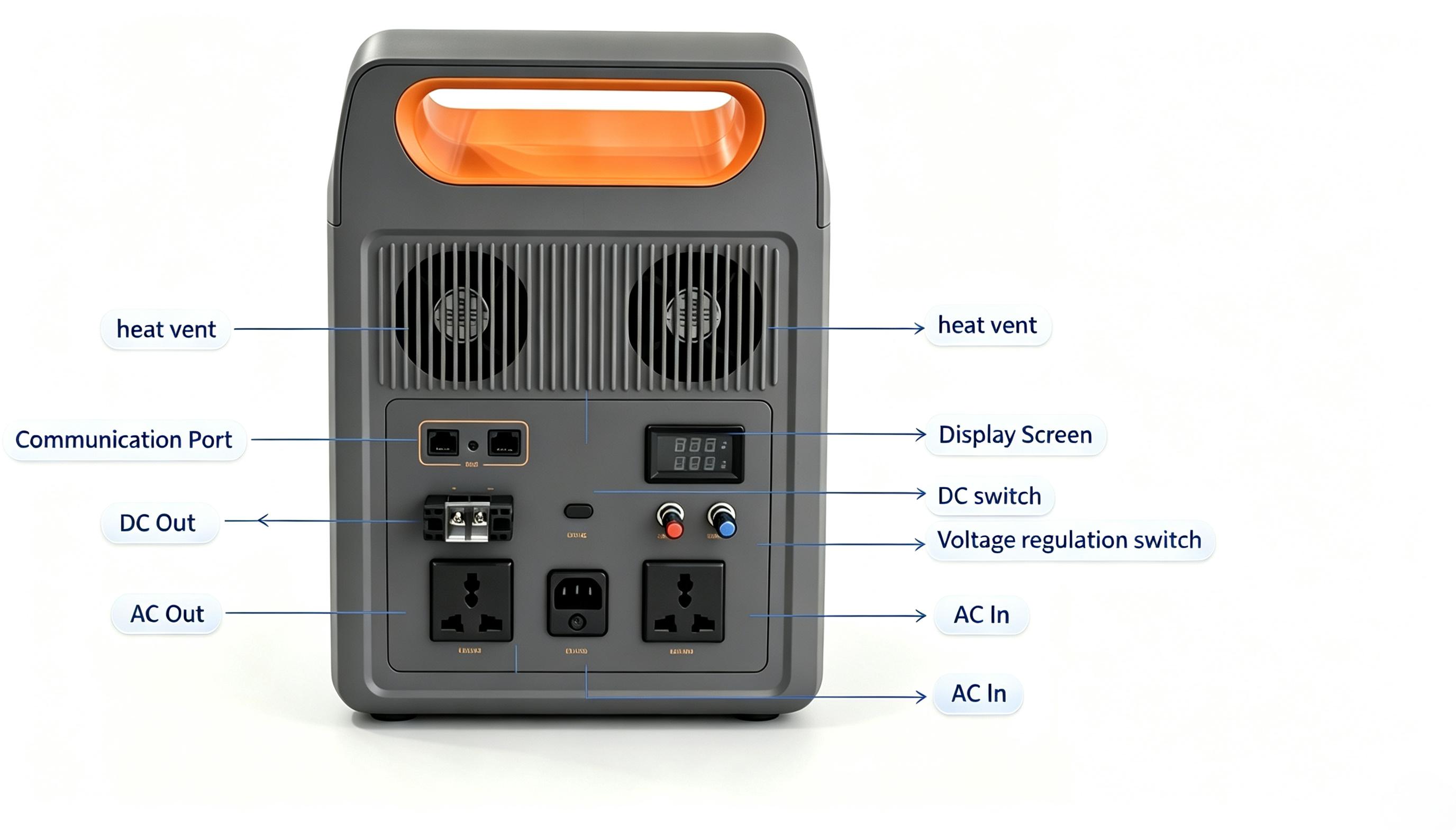

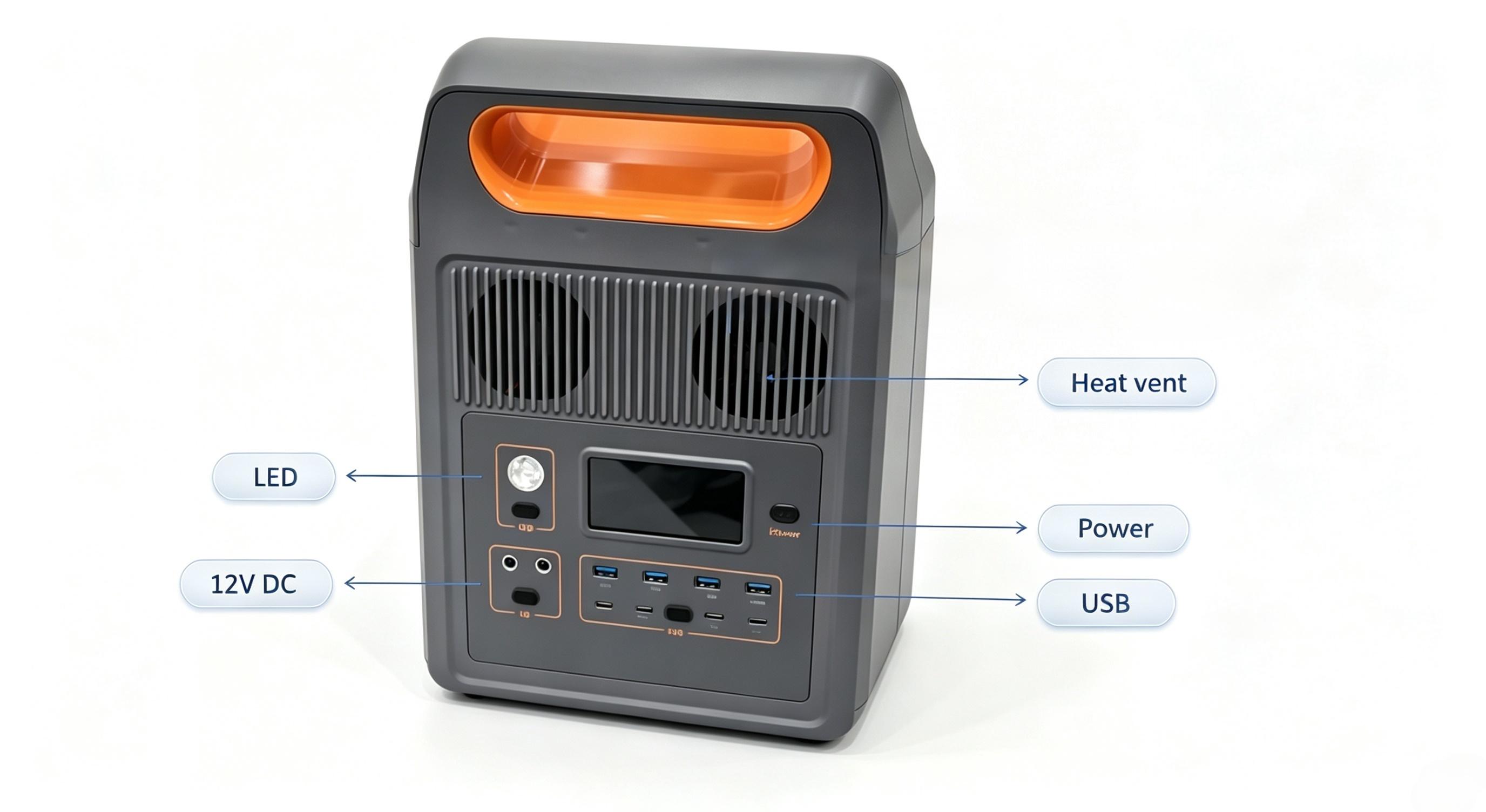

Product interfaces
Controls and connections.
Annotated views identify the controls, ventilation and AC/DC connections for the selected product.
Product parameters
Model-specific specifications.
Compare the model-specific electrical, mechanical and operating parameters. Final configuration remains subject to application engineering.
- Rated power
- 2.4 kW
- AC rated output voltage
- 220V
- DC voltage range
- 0–110V adjustable
- Rated current
- 9A
- Maximum conversion efficiency
- 96%
- Overload capacity
- 110% continuous
- Rated frequency
- 50 Hz
- Grid frequency range
- 45–55 Hz
- Grid total harmonic distortion
- ≤3% at full load
- Power factor
- 1
- Battery chemistry
- Lithium iron phosphate (LiFePO4)
- Rated energy
- 2.6 kWh
- C-rate
- ≤1C
- DC output setpoints
- 24V / 48V / 72V / 96V / 110V
- Cooling system
- Forced-air cooling
- Operating temperature
- −20°C to 50°C
- Noise
- ≤60 dB
- Protection rating
- IP54
- Charging time
- 2.5–3 hours
- Dimensions
- 442 × 264 × 358 mm
- Weight
- 23 kg; system sheet lists ≤23 kg
Applications
Where this family fits.
Model selection should follow the real load, duty cycle, interface, installation environment and destination-market requirements.

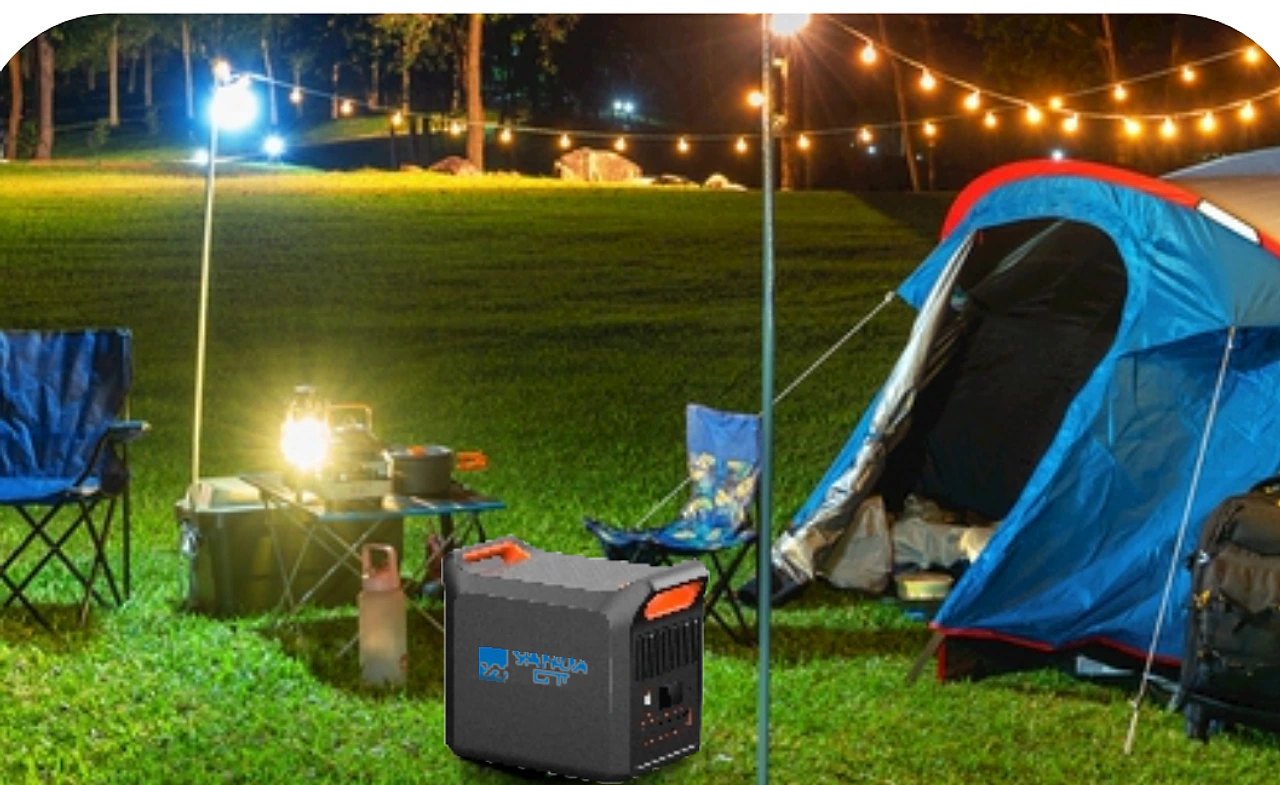

Outdoor camping
Portable AC/DC power for campsite lighting and small outdoor devices.

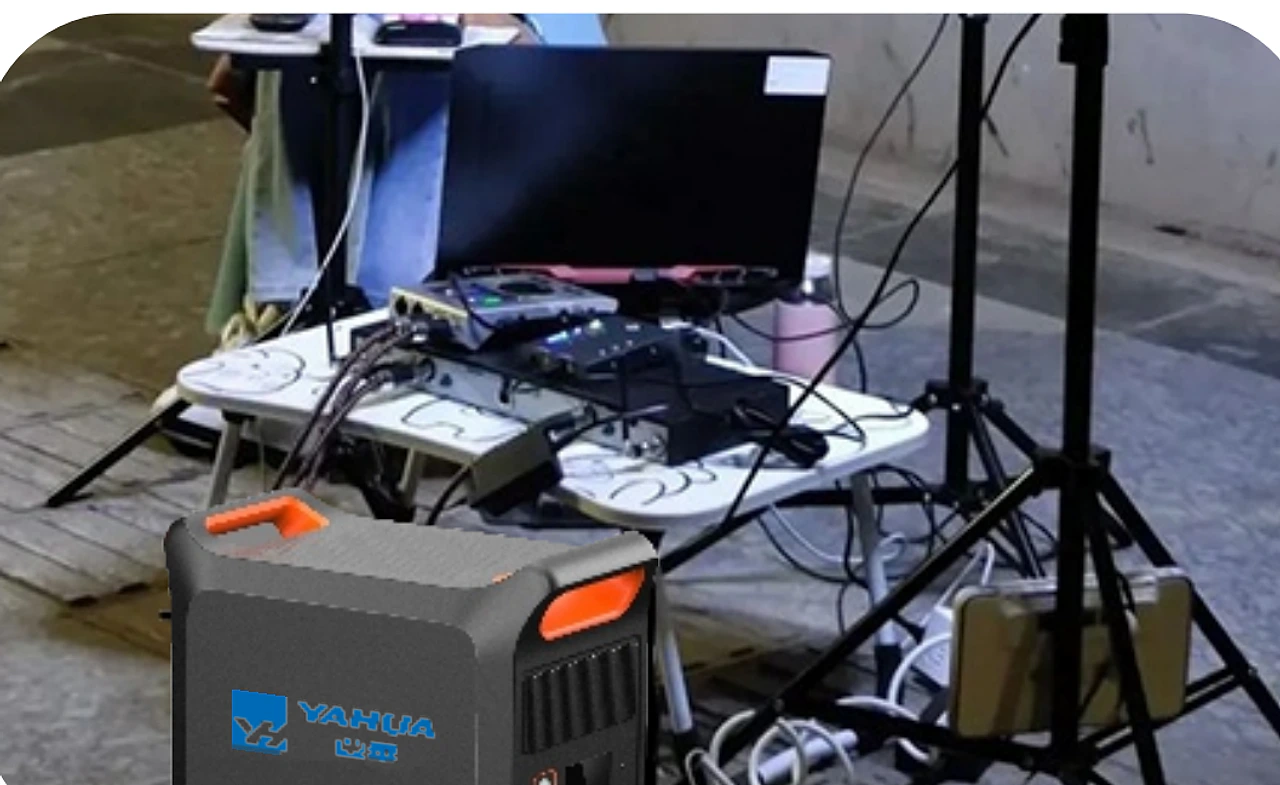

Outdoor live streaming
Temporary power for cameras, displays and supporting production equipment.

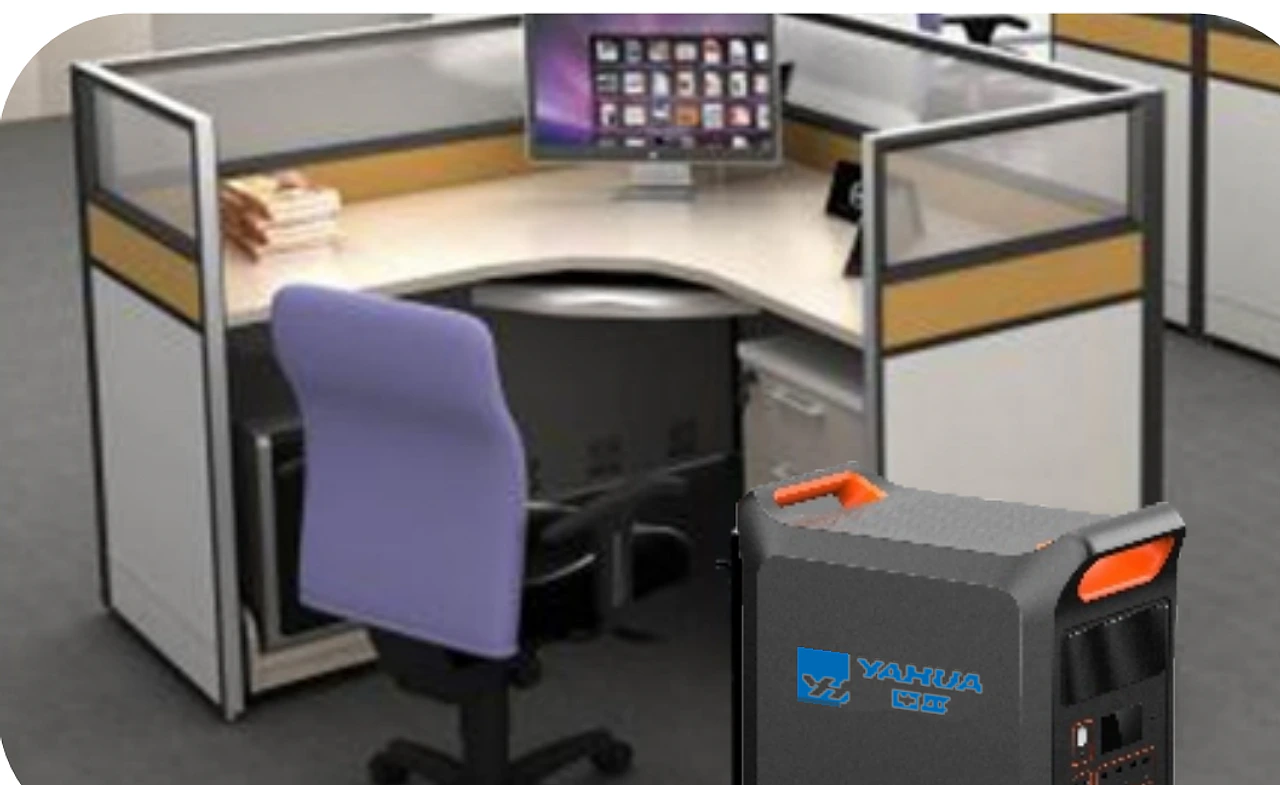

Mobile office
220V AC and device-charging access for temporary workstations.
Aerial photography
Field power support for drone and camera operations.
Night-market stalls
Rapidly deployed power for lighting and small stall equipment.

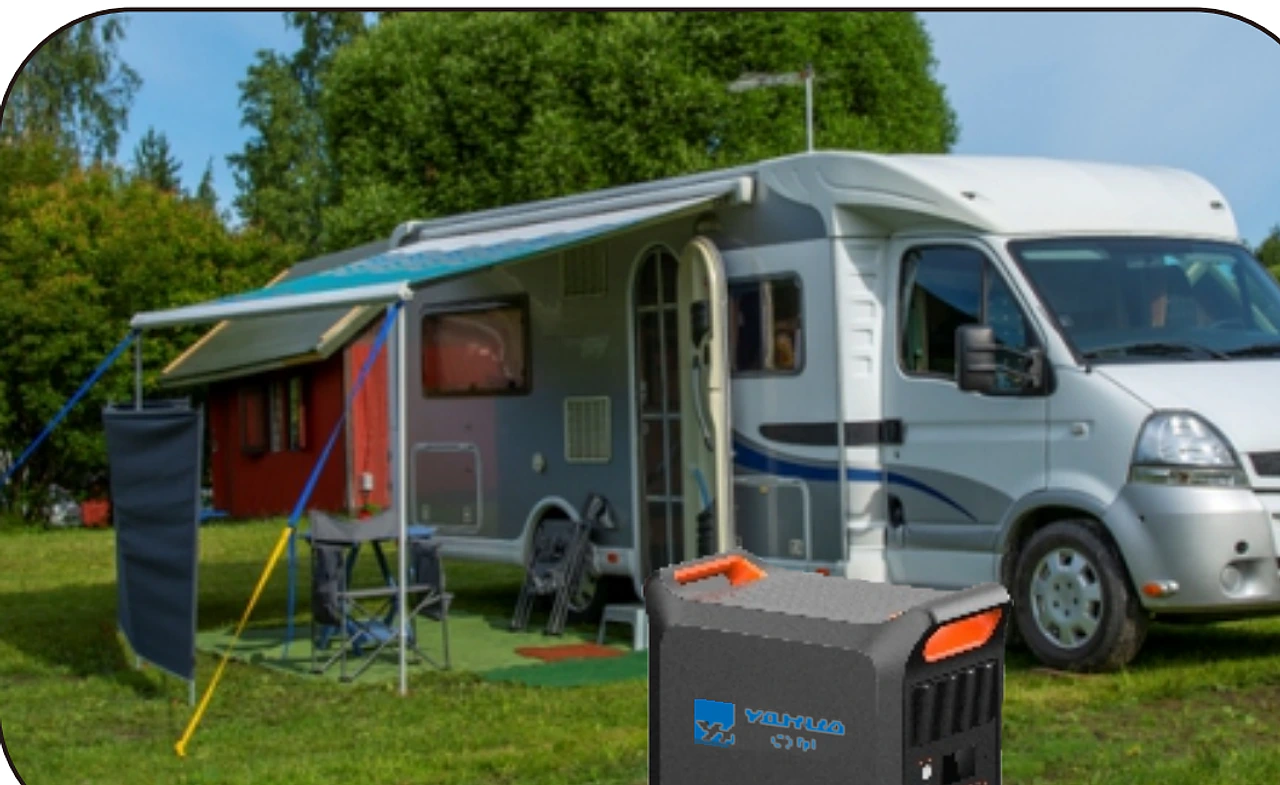

RV use
Portable power for travel, campsite and RV companion loads.
