YAHUA Mobile ESS 30/60

30kW / 60kWh Mobile Energy Storage System

A compact vehicle-deployable energy-storage system for temporary power, emergency response, off-grid work and DC charging support.

Rated power30 kW

Rated energy60 kWh

DC range200–950 Vdc

Weight560 kg

Discuss this product View specifications

Selected model30kW / 60kWh

YAHUA mobile energy storage system supporting an electric car and mobile service truck beside the power grid — **Mobile** Energy StoragePower Supply
Portable Power for EV Charging & **Grid Support**
**Easy to Move**
**EV Charging Ready**
**Emergency Grid Backup**
Reliable Power On Site. Anytime. Anywhere.

Product overview

Built around the application.

The 30kW / 60kWh system is the compact entry in YAHUA’s mobile energy-storage range. It combines grid and photovoltaic input, LiFePO₄ storage, AC and DC output, and connected monitoring for temporary, emergency and off-grid applications. Final engineering should confirm the duty cycle, output interfaces, vehicle-deployment method, environmental conditions, charging strategy and local electrical standards.

YAHUA mobile energy storage system with AC and DC output, emergency backup, solar off-grid, EV charging and remote monitoring capabilities

Five operating advantages

Built to move energy where it is needed.

Select each capability to review how the 30kW / 60kWh platform supports temporary, emergency and off-grid power.

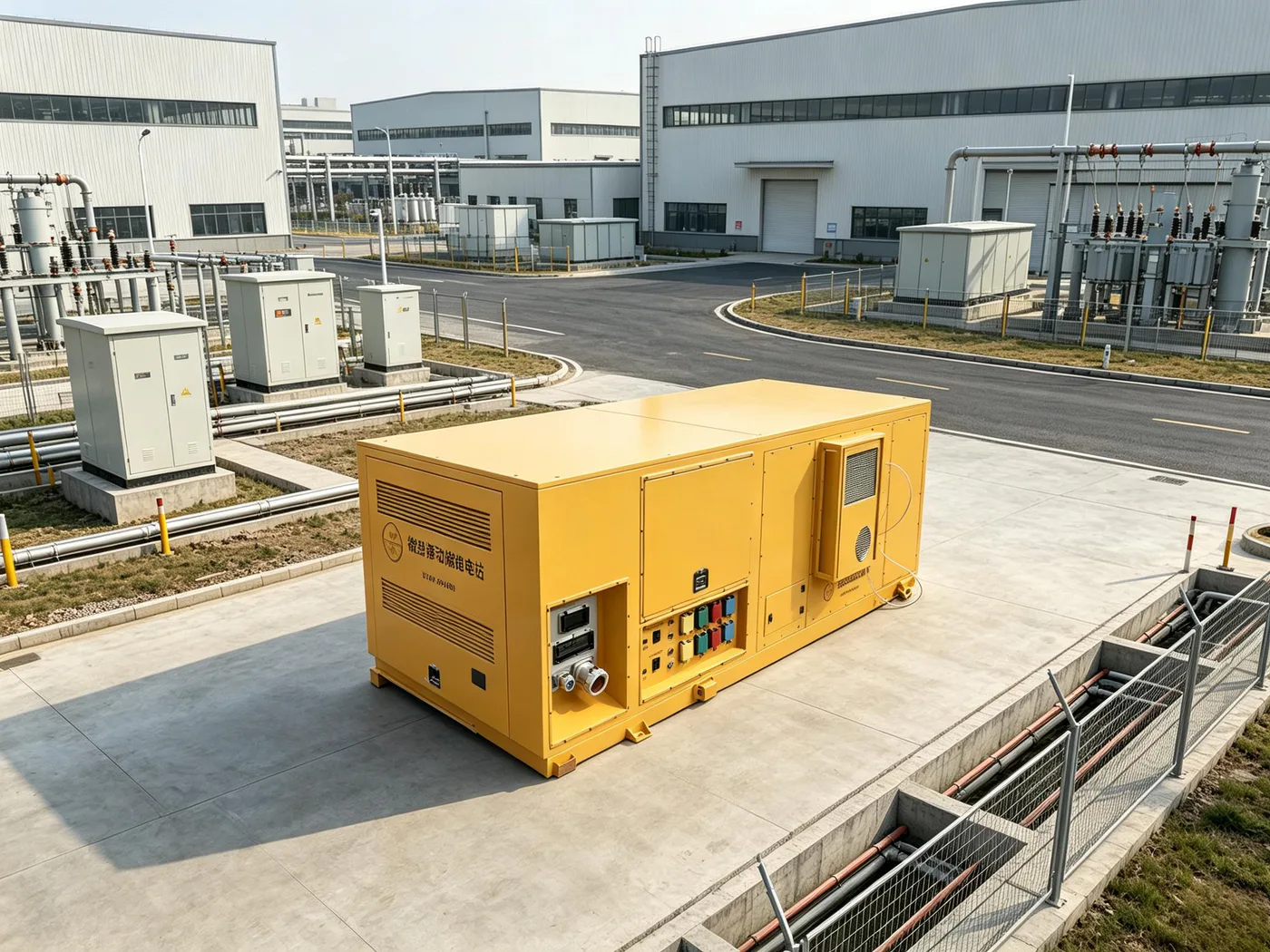

YAHUA mobile energy storage system deployed at an industrial energy site

Capability 01

Lifecycle cost control

Integrated storage can reduce generator runtime and simplify temporary-power logistics when the system is configured for the actual duty cycle.

30 kW / 60 kWh platform

System architecture

One mobile platform. Multiple energy paths.

The supplied configuration combines grid and photovoltaic input, LiFePO₄ storage, AC and DC output, and remote monitoring in one transportable enclosure.

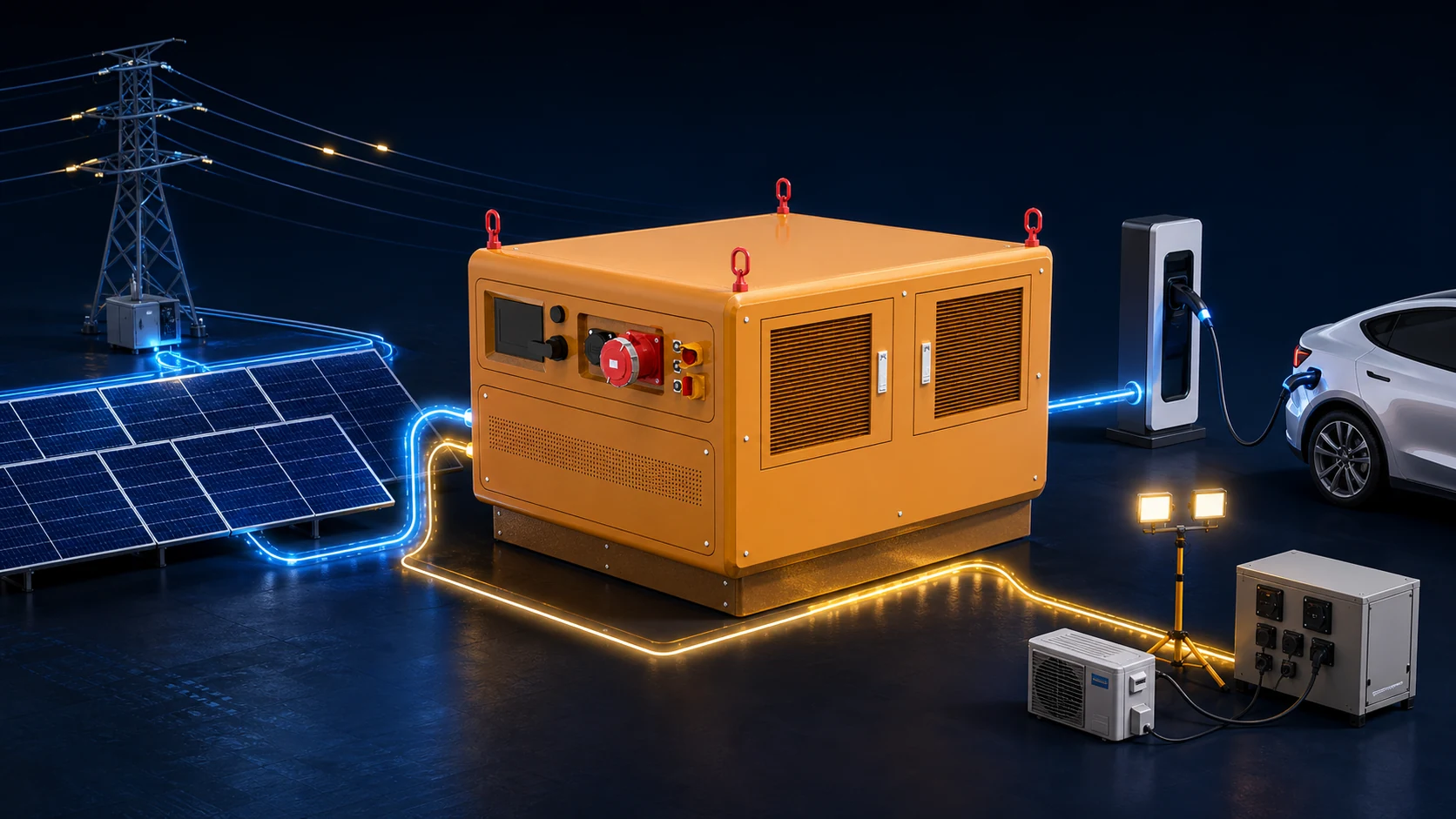

YAHUA mobile energy storage system connected to the utility grid and solar input while supplying AC loads and DC vehicle charging

01 · InputsGrid connection and photovoltaic array

02 · Energy core60 kWh LiFePO₄ storage with 30 kW conversion

03 · OutputsAC temporary power and DC emergency charging

04 · MonitoringRS485/CAN communication and GPS Cloud visibility

Product interface

Controls and connections at a glance.

The annotated product view identifies every labeled control and connection, repeated below for accessible reading.

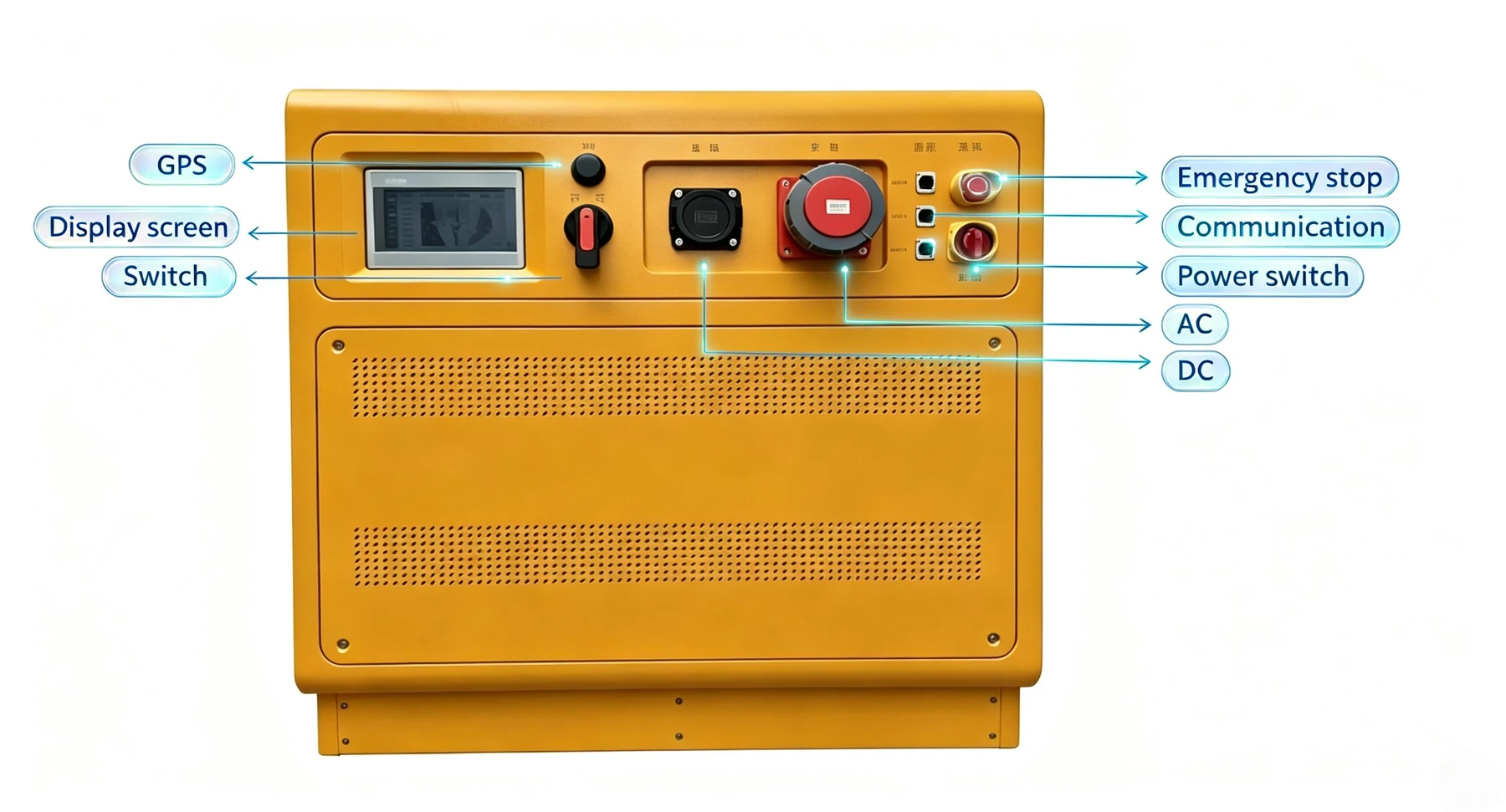

Annotated front interface showing GPS, display screen, switch, emergency stop, communication, power switch, AC and DC connections — Annotated interface view

01GPS

02Display screen

03Switch

04Emergency stop

05Communication

06Power switch

07AC connection

08DC connection

Product parameters

Model-specific specifications.

Compare the model-specific electrical, mechanical and operating parameters. Final configuration remains subject to application engineering.

Selected modelYAHUA Mobile ESS 30/60

Electrical and energy

Rated power: 30 kW
Nominal energy: 60 kWh
Stored energy: 60 kWh
Battery rated energy: 60 kWh at RT, 0.5C, BOL
Grid type: 3L+N+PE
Rated AC voltage: AC 400V (-15% to +15%)
DC voltage range: 200–950 Vdc
Maximum DC power: 30 kW
Maximum efficiency: 97%
Rated frequency: 50 Hz
Grid frequency range: 45–55 Hz
Overload capacity: 110% continuous

Battery and charging

Battery type: LiFePO₄ lithium battery
Cycle life: More than 5,000 cycles
Charge/discharge rate: 1C
Charging time: 1–1.5 hours
Storage temperature — 1 month: -20°C to 45°C (-4°F to 113°F)
Storage temperature — 1 year: 0°C to 35°C (32°F to 95°F)

Enclosure, control and safety

Casing material: Steel
Ingress protection: IP65
Communication: RS485/CAN
Monitoring: GPS Cloud
Weight: 560 kg
Dimensions: 800 × 1,000 × 1,050 mm in the primary table; the detailed table lists 1,250 mm height
Noise level: ≤60 dB
Fire protection: Aerosol firefighting

Applications

Applications of YAHUA outdoor energy storage systems.

Designed for outdoor and off-grid operations including construction, events, agricultural water systems, emergency support, high-altitude projects and rental service.

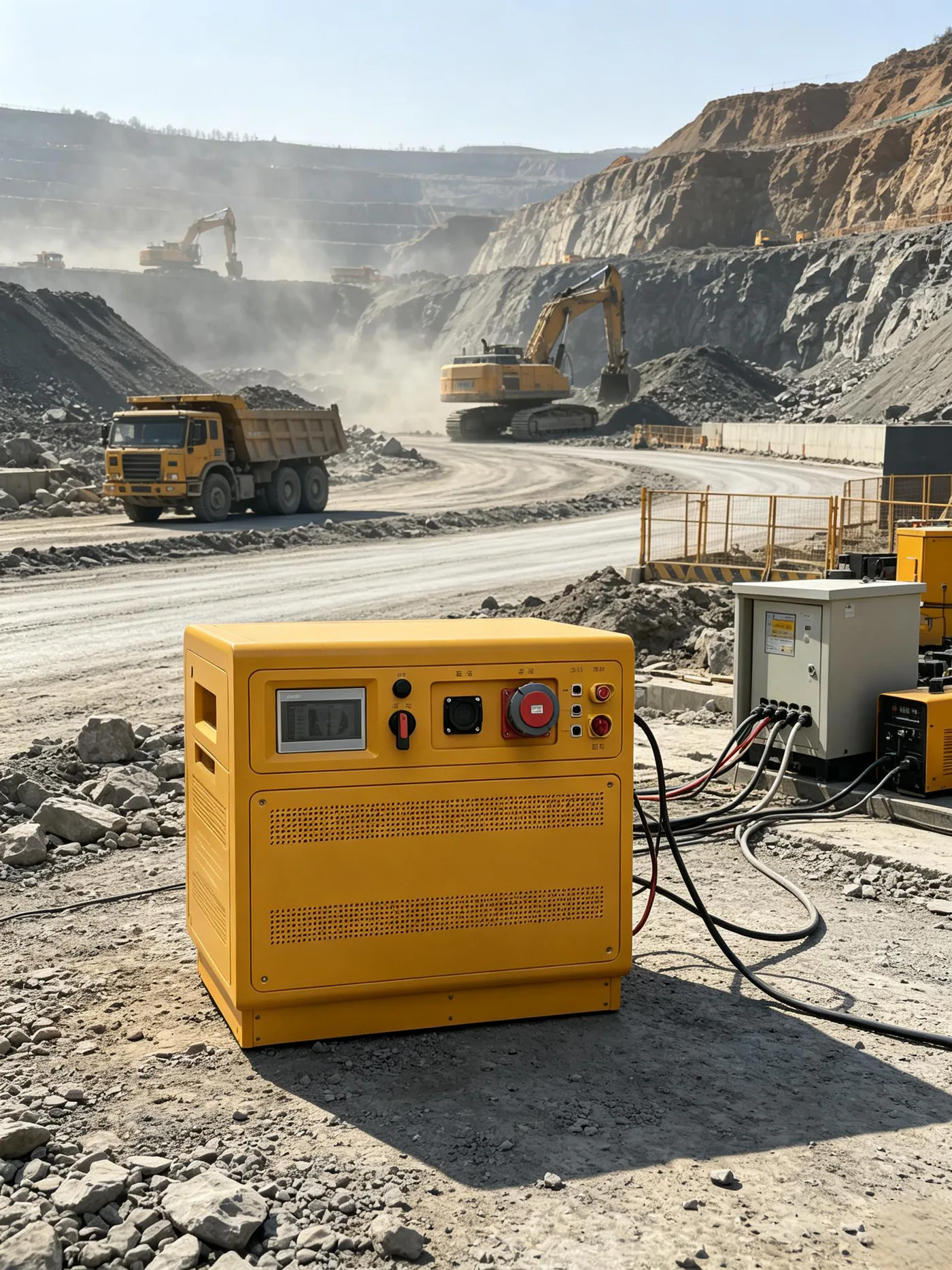

Construction and high-altitude operations

Temporary power for construction, remote worksites and demanding outdoor locations.

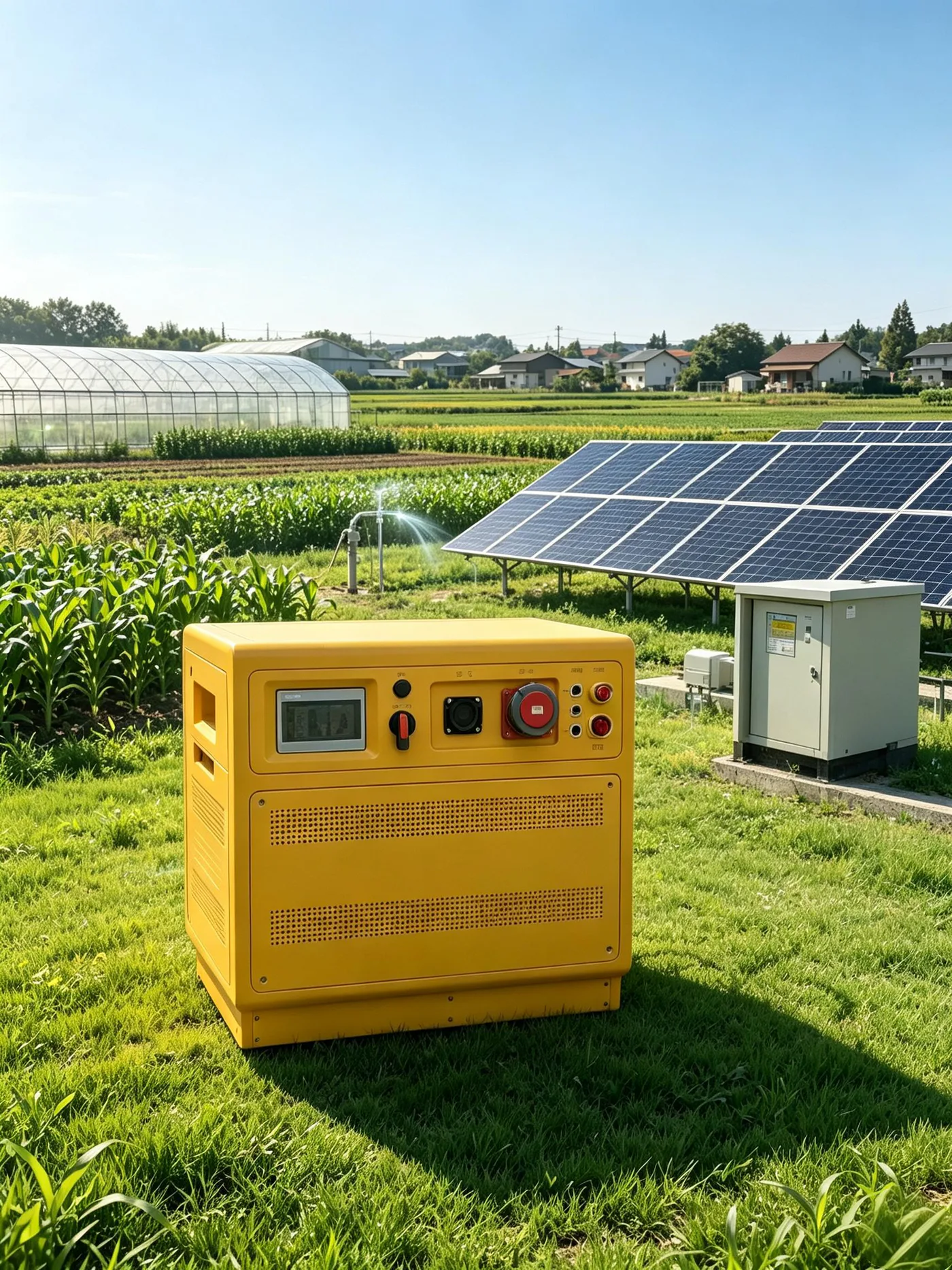

Agriculture, irrigation and ranch water systems

Off-grid energy support for farming, irrigation and ranch water infrastructure.

Grid, event and rental service

Deployable supply for grid support, large outdoor events, temporary facilities and equipment rental fleets.

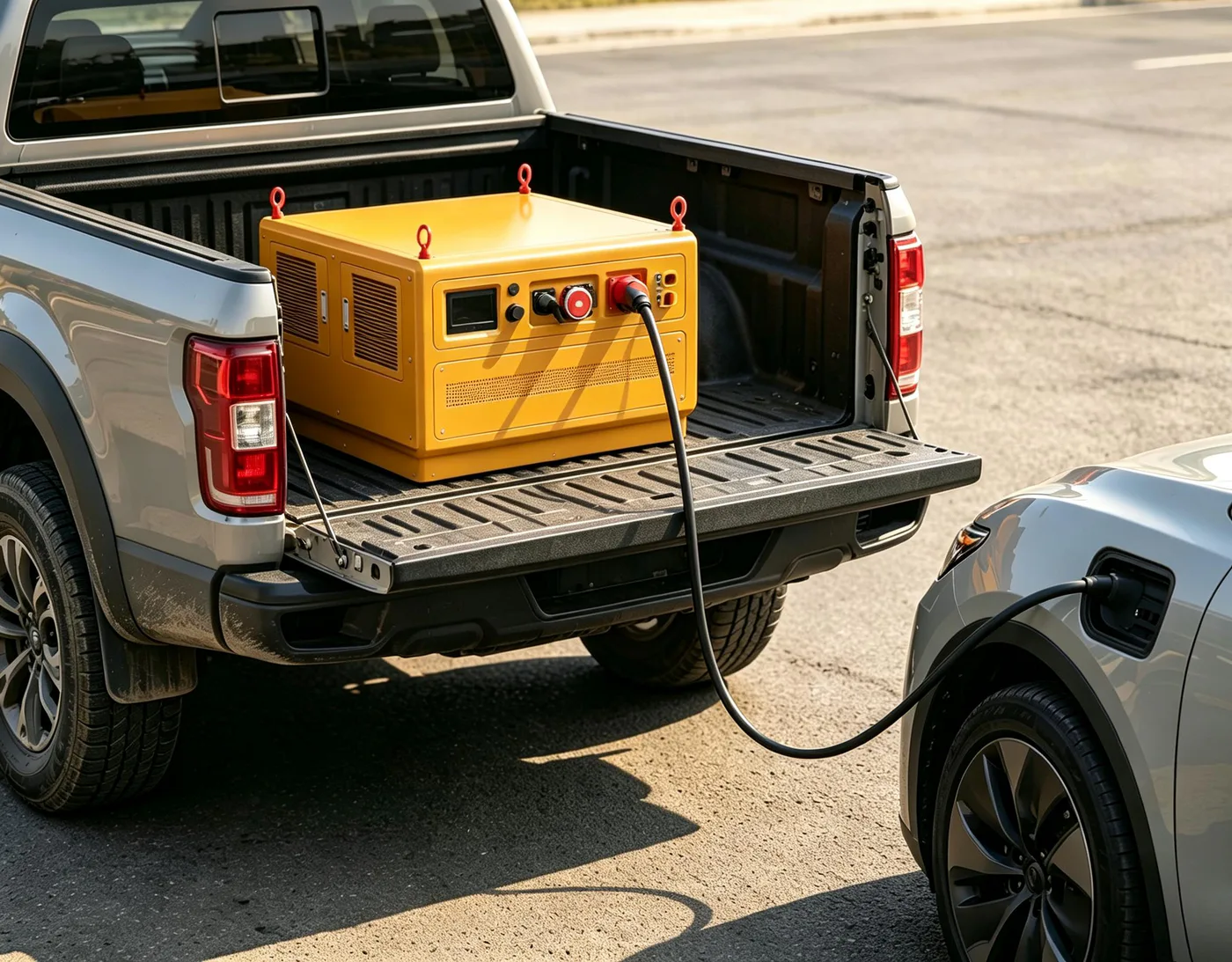

Emergency power and EV charging

Rapid-response backup energy and DC charging support where fixed supply is unavailable.

Application photography

Eight field cases in use.

Every supplied case is shown: rural emergency power, farm supply, EV charging, residential backup, solar off-grid service, grid support and two mobile service vehicles.
