BYH 96V agricultural motive series
Electric Tractor Batteries
Heavy-duty 96V LiFePO4 battery systems from 33.6 kWh to 67.2 kWh for electric tractors and agricultural equipment.
Conceptual application photography. Final integration depends on the tractor platform, load profile and installation engineering.
Basic parameters
Select the battery around the real duty cycle.

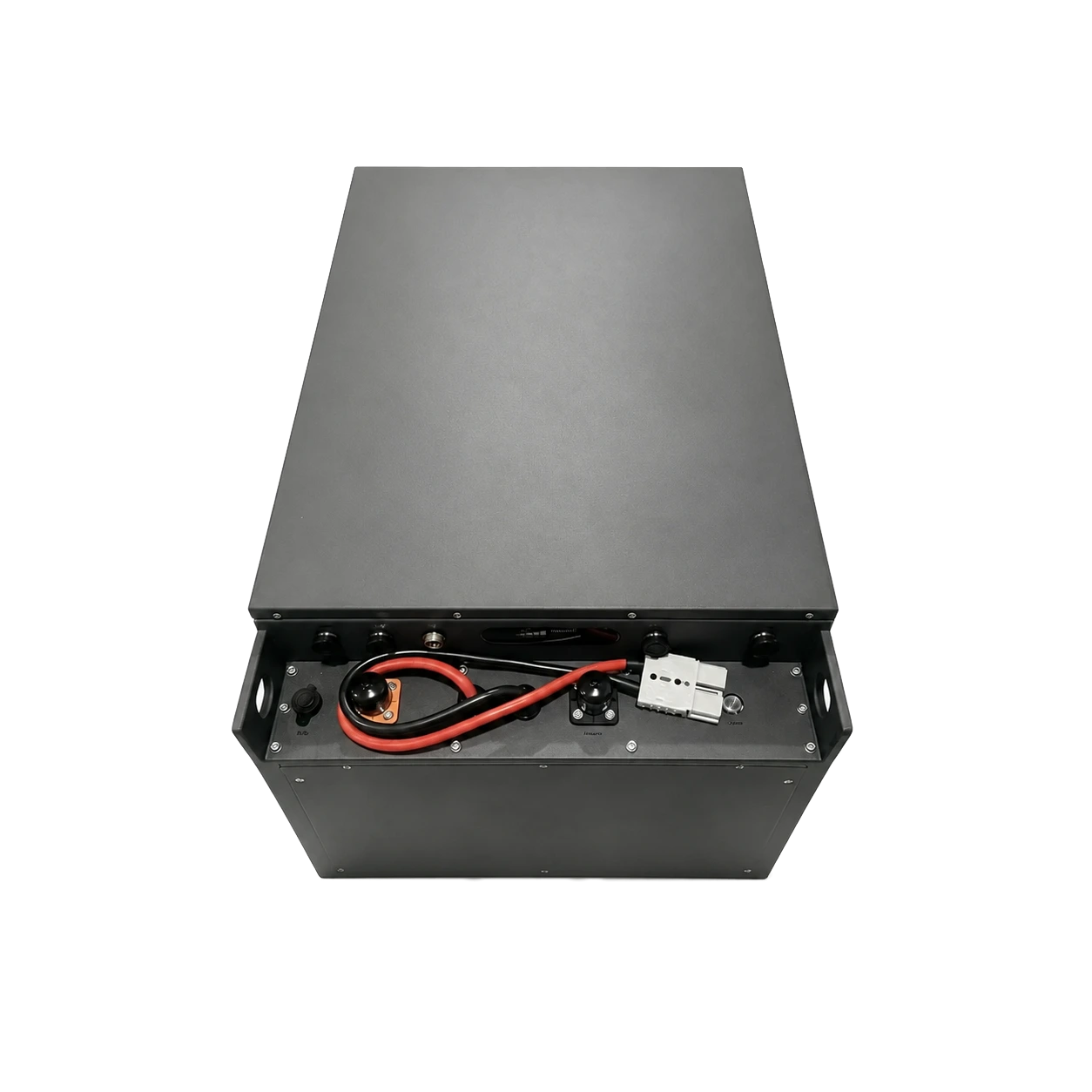

- Model
- BYH96350
- Nominal voltage
- 96V
- Nominal capacity
- 350Ah
- Energy
- 33.6 kWh
- Battery type
- LiFePO4 lithium battery
- Maximum charge current
- 100A
- Maximum continuous discharge current
- 350A
- Maximum discharge current
- 500A for 5 seconds
- Weight
- Approx. 257 kg
- Dimensions
- 930 × 470 × 368 mm maximum
- Cycle life
- >5,000
- Certifications
- CE · IEC 62619 · UN38.3
- Model
- BYH96450
- Nominal voltage
- 96V
- Nominal capacity
- 450Ah
- Energy
- 43.2 kWh
- Battery type
- LiFePO4 lithium battery
- Maximum charge current
- 100A
- Maximum continuous discharge current
- 350A
- Maximum discharge current
- 500A for 5 seconds
- Weight
- Approx. 305 kg
- Dimensions
- 828 × 438 × 495 mm maximum
- Cycle life
- >5,000
- Certifications
- CE · IEC 62619 · UN38.3

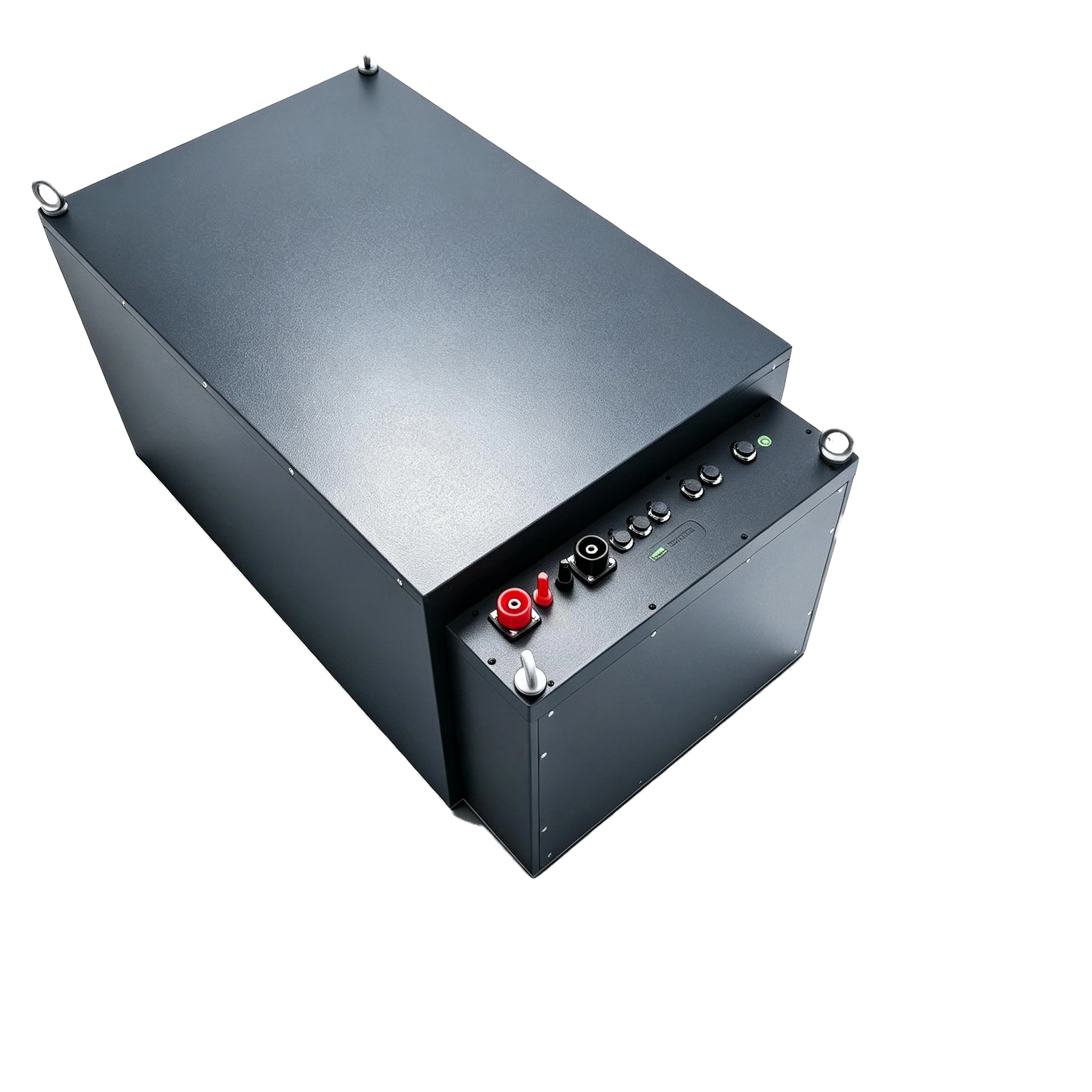

- Model
- BYH96700
- Nominal voltage
- 96V
- Nominal capacity
- 700Ah
- Energy
- 67.2 kWh
- Battery type
- LiFePO4 lithium battery
- Maximum charge current
- 100A
- Maximum continuous discharge current
- 350A
- Maximum discharge current
- 500A for 5 seconds
- Weight
- Approx. 440 kg
- Dimensions
- 965 × 545 × 460 mm maximum
- Cycle life
- >5,000
- Certifications
- CE · IEC 62619 · UN38.3
Product overview
Power engineered for demanding agricultural work.
Three 96V configurations combine heavy-duty discharge, industrial protection and connected monitoring for application-engineered tractor platforms.
Heavy-duty discharge
350A continuous discharge with a 500A maximum for five seconds.
Industrial enclosure
A steel IP65 enclosure protects the BYH96350 agricultural platform.
Cold-region configuration
Low-temperature heating can be configured around climate, charging strategy and duty cycle.
Connected monitoring
485/CAN communication supports Bluetooth and cloud monitoring for the configured system.
Final configuration remains subject to application engineering.
Heavy-duty discharge
350A continuous discharge with a 500A maximum for five seconds.
Industrial enclosure
A steel IP65 enclosure protects the BYH96450 agricultural platform.
Cold-region configuration
Low-temperature heating can be configured around climate, charging strategy and duty cycle.
Connected monitoring
485/CAN communication supports Bluetooth and cloud monitoring for the configured system.
Final configuration remains subject to application engineering.
Heavy-duty discharge
350A continuous discharge with a 500A maximum for five seconds.
Industrial enclosure
A steel IP65 enclosure protects the BYH96700 agricultural platform.
Cold-region configuration
Low-temperature heating can be configured around climate, charging strategy and duty cycle.
Connected monitoring
485/CAN communication supports Bluetooth and cloud monitoring for the configured system.
Final configuration remains subject to application engineering.
YAHUA lithium battery advantages
Designed for field reliability and application flexibility.
All-weather operation
Operating and charging strategies can be configured around the local climate and duty cycle.
Rugged enclosure
IP65 steel enclosures support demanding agricultural installation environments.
Long-cycle design
Designed for more than 5,000 cycles, subject to operating and charging conditions.
Lower maintenance
A sealed battery platform removes fuel-engine service tasks while retaining routine system inspection.
Smart BMS protection
Protection functions cover overcharge, over-discharge, overcurrent, short circuit and temperature.
High energy capacity
Three 96V configurations provide 33.6 kWh to 67.2 kWh of energy.
Connected monitoring
485/CAN communication supports Bluetooth and cloud monitoring for the configured system.
Heavy-duty output
All three models specify 350A continuous discharge and 500A maximum discharge for five seconds.
Application advantages
What changes when agricultural power goes electric.
Efficient electric operation
A correctly integrated electric drivetrain can reduce operating noise, eliminate tailpipe emissions at the point of use and reduce fuel-engine service tasks.
High-load output
All three models specify 350A continuous discharge and a 500A maximum discharge for five seconds.
Cold-region readiness
Configurable low-temperature heating supports application engineering for colder operating regions.
Long-cycle platform
Designed for more than 5,000 cycles; actual service life depends on operating and charging conditions.
Connected monitoring
Bluetooth and cloud functions provide configured access to SOC, voltage, current, temperature, alarms and history.
Industrial protection
IP65 steel enclosures and BMS protection functions support agricultural operating environments.
Customizable integration
Voltage, capacity, enclosure, mounting, communications and vehicle interfaces can be engineered around the project.
Powertrain comparison
Battery platform and diesel power.
This application-level comparison reflects typical system differences. Actual operating cost, energy use, maintenance and environmental impact depend on the tractor, local energy source, duty cycle and service conditions.
Product parameters
Model-specific specifications.
Compare the model-specific electrical, mechanical and operating parameters. Final configuration remains subject to application engineering.
- Model
- BYH96350
- Nominal voltage
- 96V
- Nominal capacity
- 350Ah
- Energy
- 33.6 kWh
- Battery type
- LiFePO4 lithium battery
- Maximum charge current
- 100A
- Maximum continuous discharge current
- 350A
- Maximum discharge current
- 500A for 5 seconds
- Weight
- Approx. 257 kg
- Dimensions
- 930 × 470 × 368 mm maximum
- Cycle life
- >5,000
- Certifications
- CE · IEC 62619 · UN38.3
- Charge temperature
- 0–60°C
- Discharge temperature
- -20–60°C
- Storage temperature
- 10–45°C
- Charge/discharge efficiency
- 100%
- IP rating
- IP65
- Casing material
- Steel
- Communication
- 485/CAN
- Monitoring
- Bluetooth and cloud
CE · IEC 62619 · UN38.3
- Model
- BYH96450
- Nominal voltage
- 96V
- Nominal capacity
- 450Ah
- Energy
- 43.2 kWh
- Battery type
- LiFePO4 lithium battery
- Maximum charge current
- 100A
- Maximum continuous discharge current
- 350A
- Maximum discharge current
- 500A for 5 seconds
- Weight
- Approx. 305 kg
- Dimensions
- 828 × 438 × 495 mm maximum
- Cycle life
- >5,000
- Certifications
- CE · IEC 62619 · UN38.3
- Charge temperature
- 0–60°C
- Discharge temperature
- -20–60°C
- Storage temperature
- 10–45°C
- Charge/discharge efficiency
- 100%
- IP rating
- IP65
- Casing material
- Steel
- Communication
- 485/CAN
- Monitoring
- Bluetooth and cloud
CE · IEC 62619 · UN38.3
- Model
- BYH96700
- Nominal voltage
- 96V
- Nominal capacity
- 700Ah
- Energy
- 67.2 kWh
- Battery type
- LiFePO4 lithium battery
- Maximum charge current
- 100A
- Maximum continuous discharge current
- 350A
- Maximum discharge current
- 500A for 5 seconds
- Weight
- Approx. 440 kg
- Dimensions
- 965 × 545 × 460 mm maximum
- Cycle life
- >5,000
- Certifications
- CE · IEC 62619 · UN38.3
- Charge temperature
- 0–60°C
- Discharge temperature
- -20–60°C
- Storage temperature
- 10–45°C
- Charge/discharge efficiency
- 100%
- IP rating
- IP65
- Casing material
- Steel
- Communication
- 485/CAN
- Monitoring
- Bluetooth and cloud
CE · IEC 62619 · UN38.3
Applications
Where this family fits.
Model selection should follow the real load, duty cycle, interface, installation environment and destination-market requirements.
Electric tractors
Application-engineered 96V LiFePO4 power for agricultural traction platforms.
Ploughing, harrowing and land preparation
Configured around continuous load, peak current, terrain and the real agricultural work cycle.
Large-area land reclamation
Model selection must account for sustained high-load duty, charging windows and thermal conditions.
Agricultural equipment electrification
Voltage, capacity, enclosure, mounting and vehicle interfaces can be tailored to the equipment platform.
Engineering scope
One family, configurable layers.
Product features
- More than 5,000 cycles
- BMS overcharge and over-discharge protection
- BMS overcurrent and short-circuit protection
- BMS overheating protection
- Bluetooth and cloud monitoring
- Configurable low-temperature heating across all models
Customization
- Voltage and capacity
- Enclosure size and mounting
- Vehicle interface and OEM integration
