YAHUA Mobile ESS 50/100
50kW / 100kWh Mobile Energy Storage System
A mid-capacity mobile energy-storage platform for temporary power, emergency response, renewable integration and field charging.
Mobile Energy StoragePower Supply
Portable Power for EV Charging & Grid Support
Reliable Power On Site. Anytime. Anywhere.
Product overview
Built around the application.
The 50kW / 100kWh mobile system provides a mid-range option for field power and energy services. It combines grid and photovoltaic input, LiFePO₄ storage, AC and DC output, and connected monitoring for temporary, emergency and off-grid applications. Final engineering should confirm the duty cycle, output interfaces, vehicle-deployment method, environmental conditions, charging strategy and local electrical standards.
Five operating advantages
Built to move energy where it is needed.
Select each capability to review how the 50kW / 100kWh platform supports temporary, emergency and off-grid power.
Capability 01
Lifecycle cost control
Integrated storage can reduce generator runtime and simplify temporary-power logistics when the system is configured for the actual duty cycle.
50 kW / 96 kWh stored energy
Capability 02
Rapid deployment
The vehicle-deployable enclosure moves AC and DC power close to the load without permanent civil works.
960 kg enclosureCapability 03
Intelligent energy management
RS485/CAN communication and GPS Cloud monitoring support connected operation and remote visibility.
RS485/CAN · GPS Cloud
Capability 04
Rugged outdoor design
A steel IP65 enclosure supports outdoor deployment, with defined storage ranges for short- and long-term storage.
Steel casing · IP65
Capability 05
PV input and off-grid supply
Photovoltaic input can be configured with the battery system to provide off-grid energy for remote and temporary applications.
PV input · off-grid supplySystem architecture
One mobile platform. Multiple energy paths.
The supplied configuration combines grid and photovoltaic input, LiFePO₄ storage, AC and DC output, and remote monitoring in one transportable enclosure.
50 kW conversion 96 kWh stored energy
LiFePO₄ storage with EMS, BMS and connected monitoring.

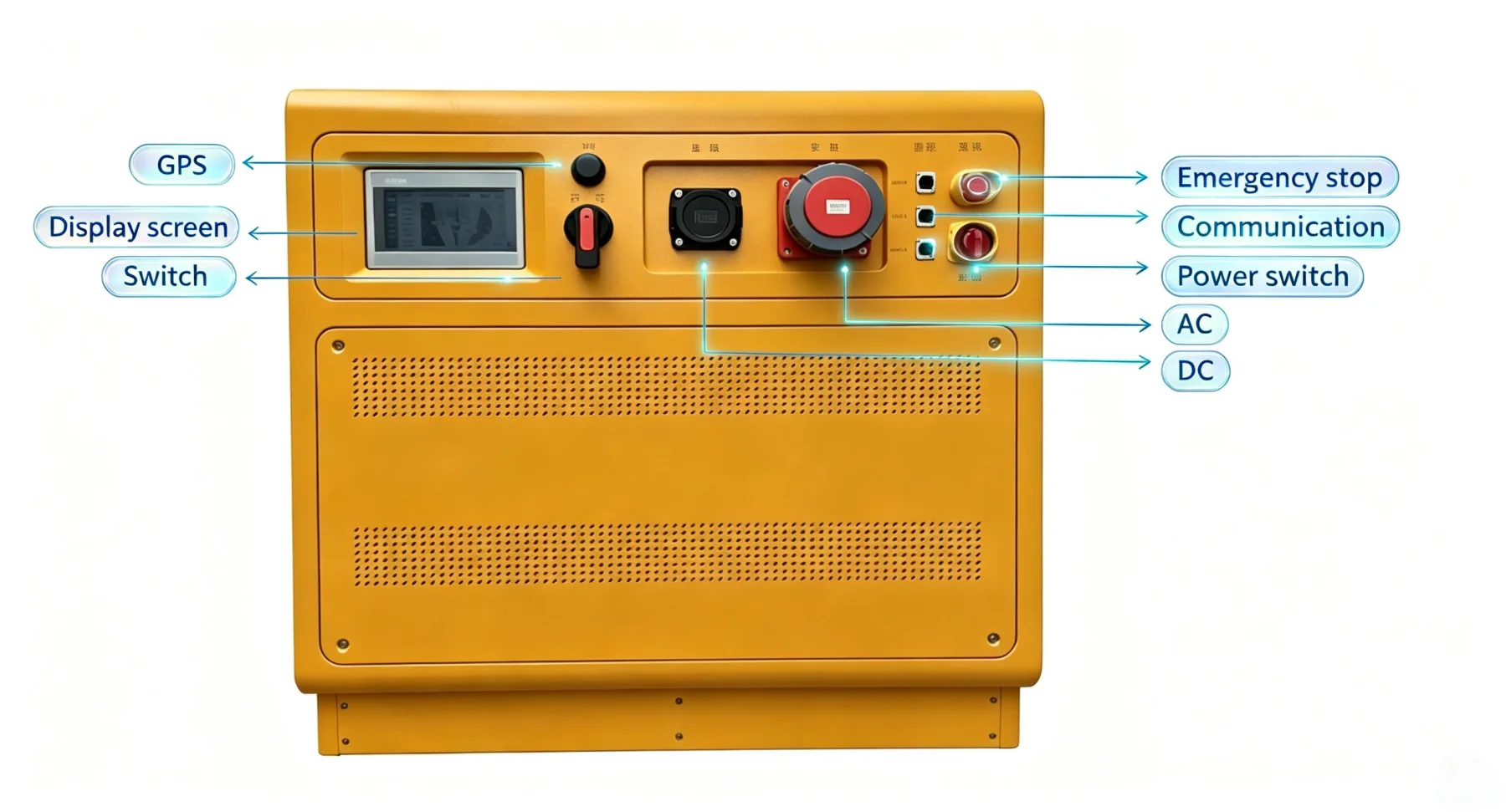

Product interface
Controls and connections at a glance.
The annotated product view identifies every labeled control and connection, repeated below for accessible reading.
Product parameters
Model-specific specifications.
Compare the model-specific electrical, mechanical and operating parameters. Final configuration remains subject to application engineering.
Electrical and energy
- Rated power
- 50 kW
- Nominal energy
- 100 kWh
- Stored energy
- 96 kWh
- Battery rated energy
- 96 kWh at RT, 0.5C, BOL
- Grid type
- 3L+N+PE
- Rated AC voltage
- AC 400V (-15% to +15%)
- DC voltage range
- 200–950 Vdc
- Maximum DC power
- 50 kW
- Maximum efficiency
- 97%
- Rated frequency
- 50 Hz
- Grid frequency range
- 45–55 Hz
- Overload capacity
- 110% continuous
Battery and charging
- Battery type
- LiFePO₄ lithium battery
- Cycle life
- More than 5,000 cycles
- Charge/discharge rate
- 1C
- Charging time
- 1–1.5 hours
- Storage temperature — 1 month
- -20°C to 45°C (-4°F to 113°F)
- Storage temperature — 1 year
- 0°C to 35°C (32°F to 95°F)
Enclosure, control and safety
- Casing material
- Steel
- Ingress protection
- IP65
- Communication
- RS485/CAN
- Monitoring
- GPS Cloud
- Weight
- 960 kg
- Dimensions
- 1,250 × 1,000 × 1,050 mm in the primary table; the detailed table explicitly lists 1,050 × 1,000 × 1,250 mm (L×W×H)
- Noise level
- ≤60 dB
- Fire protection
- Aerosol firefighting
Applications
Applications of YAHUA outdoor energy storage systems.
Designed for outdoor and off-grid operations including construction, events, agricultural water systems, emergency support, high-altitude projects and rental service.

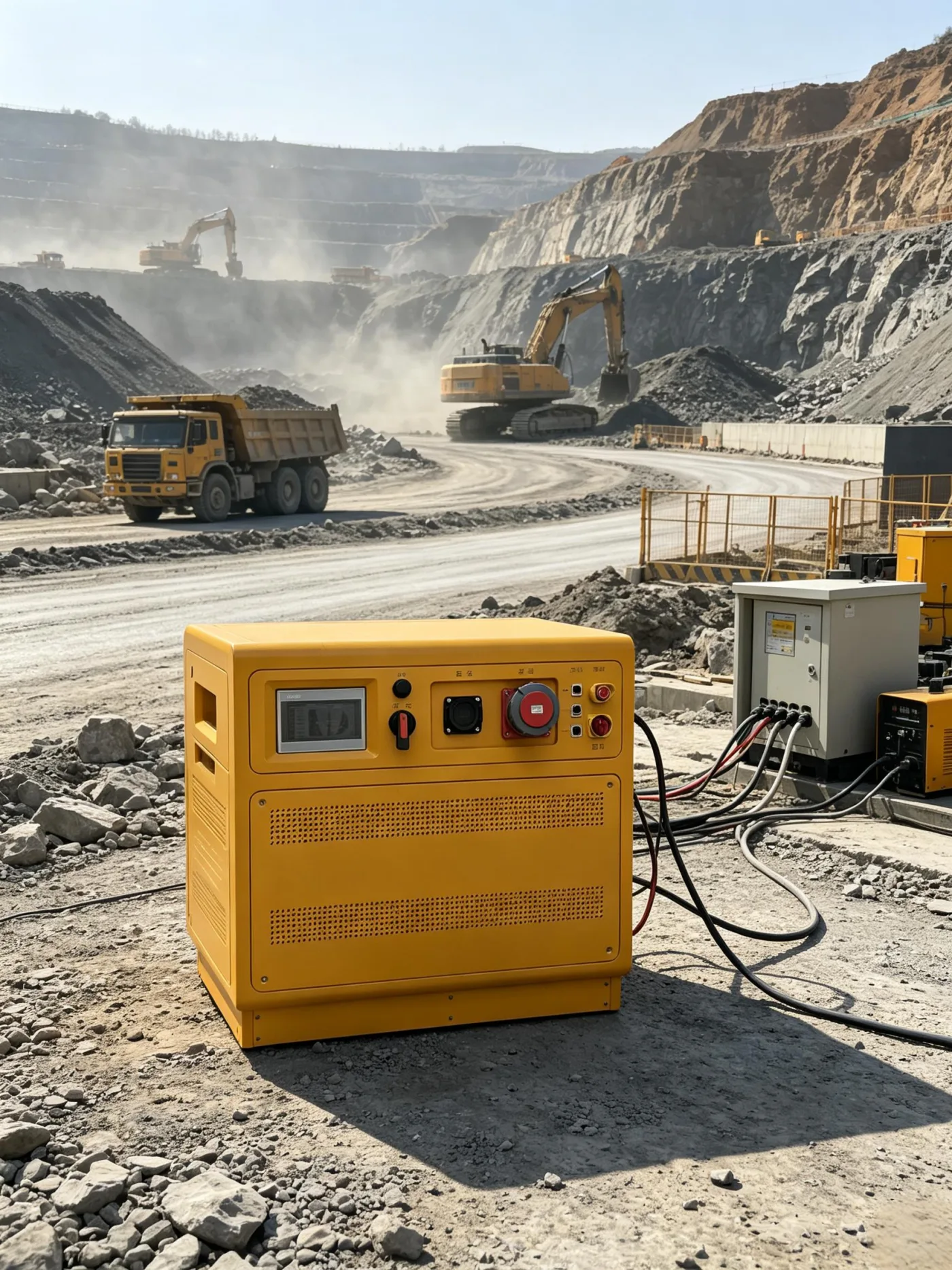

Construction and high-altitude operations
Temporary power for construction, remote worksites and demanding outdoor locations.

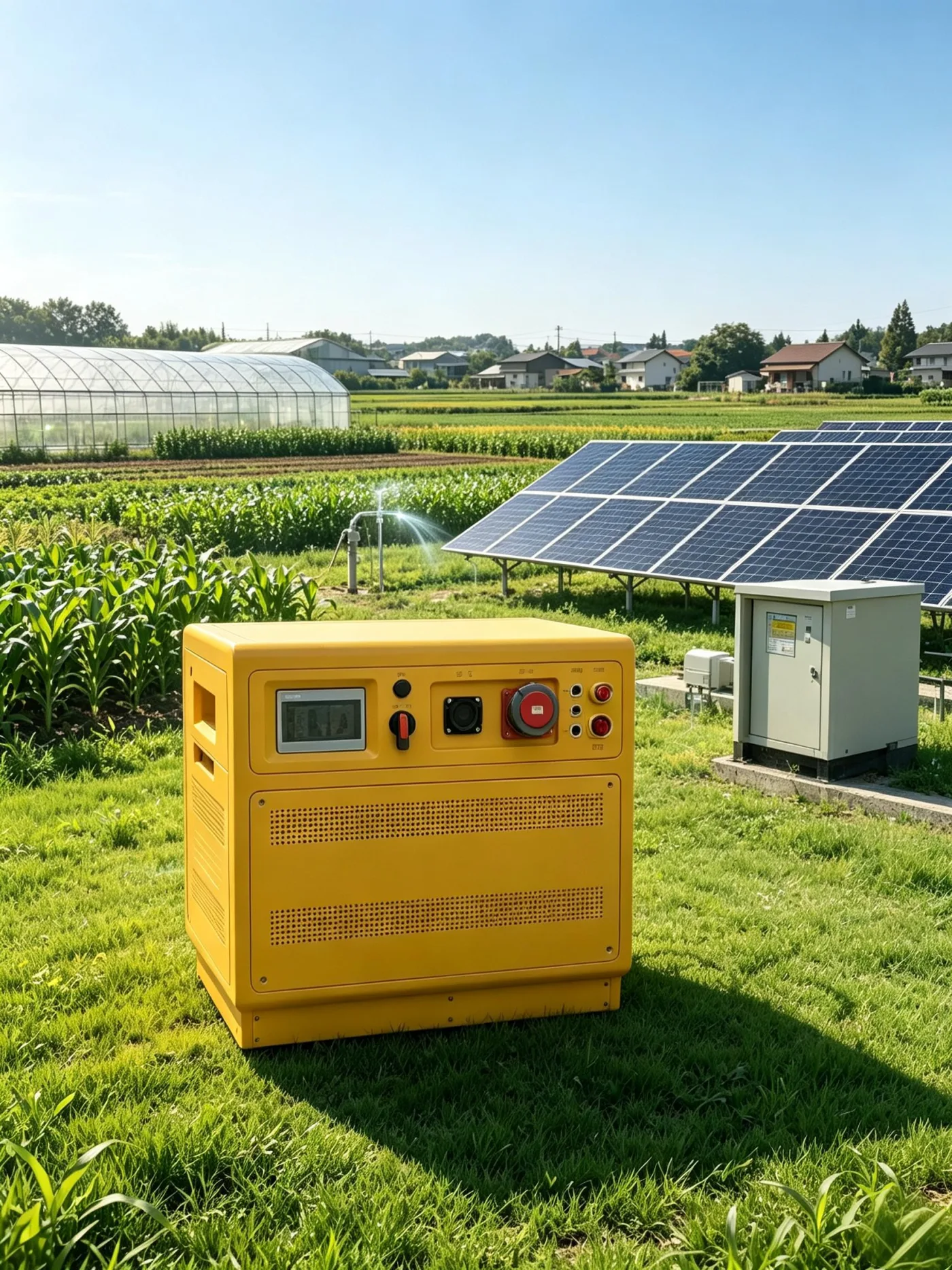

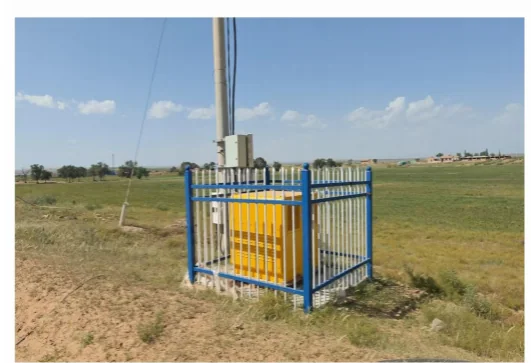

Agriculture, irrigation and ranch water systems
Off-grid energy support for farming, irrigation and ranch water infrastructure.

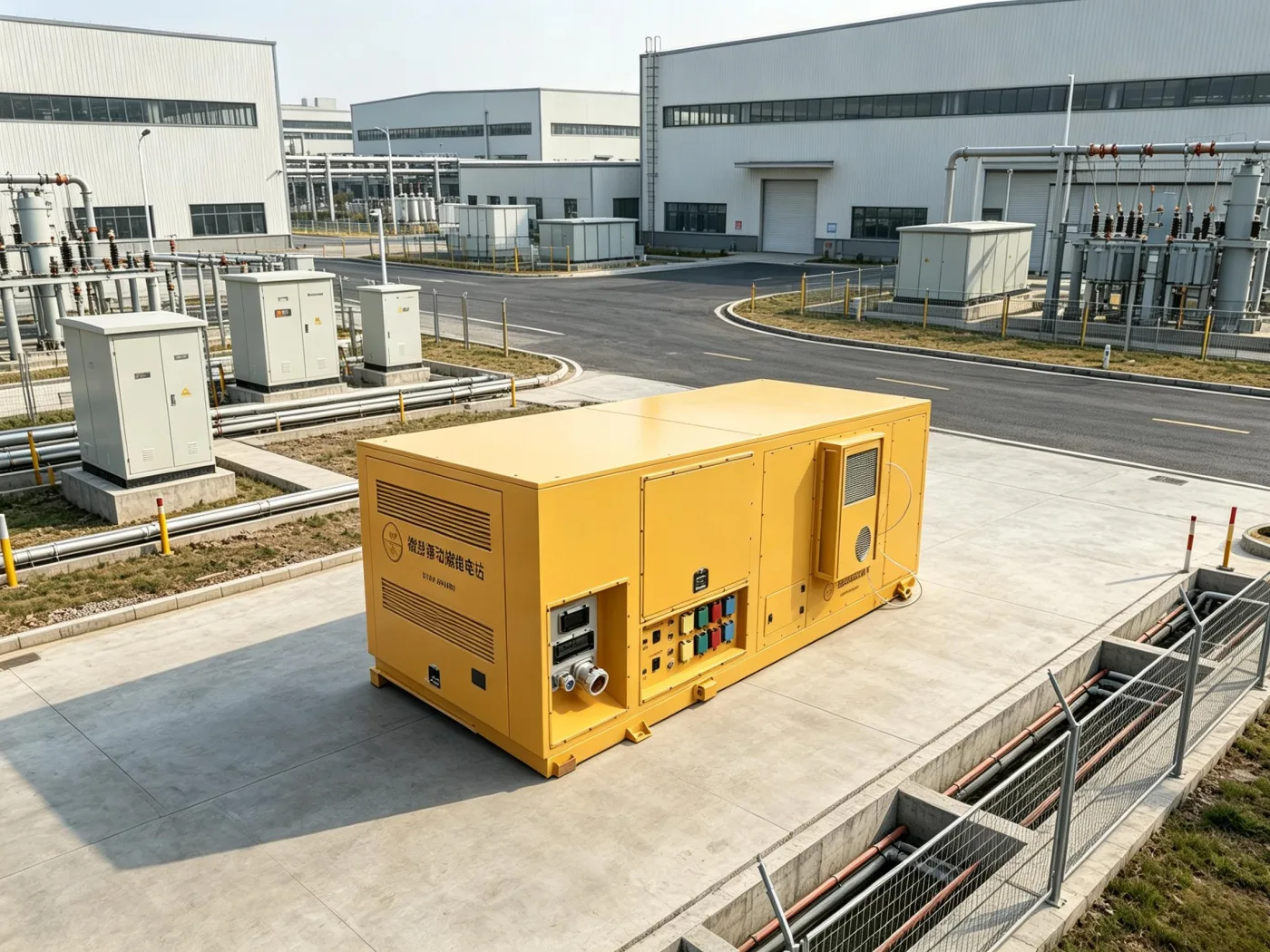

Grid, event and rental service
Deployable supply for grid support, large outdoor events, temporary facilities and equipment rental fleets.

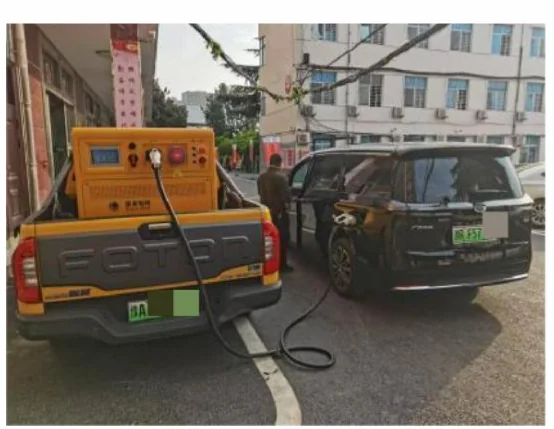

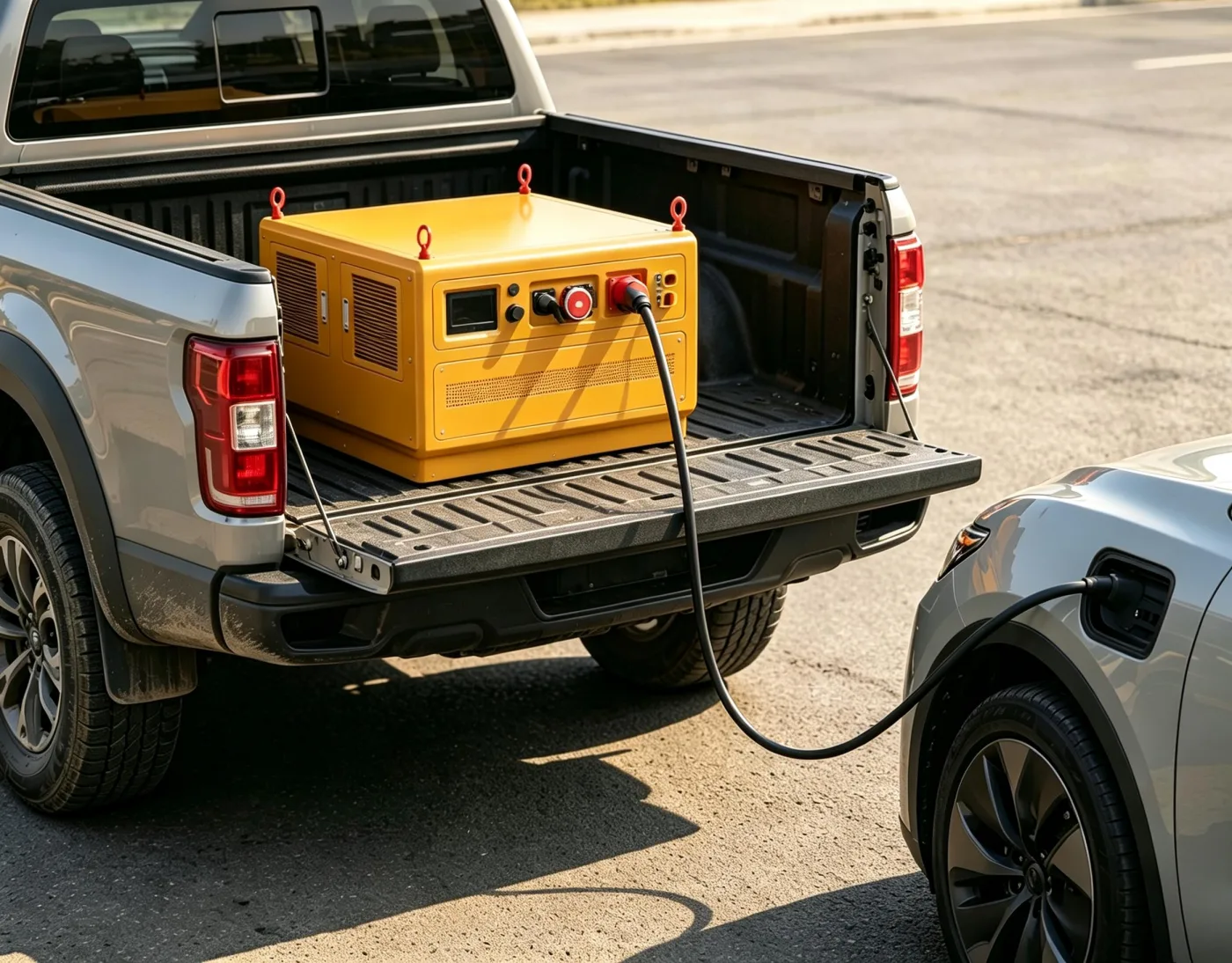

Emergency power and EV charging
Rapid-response backup energy and DC charging support where fixed supply is unavailable.
Application photography
Eight field cases in use.

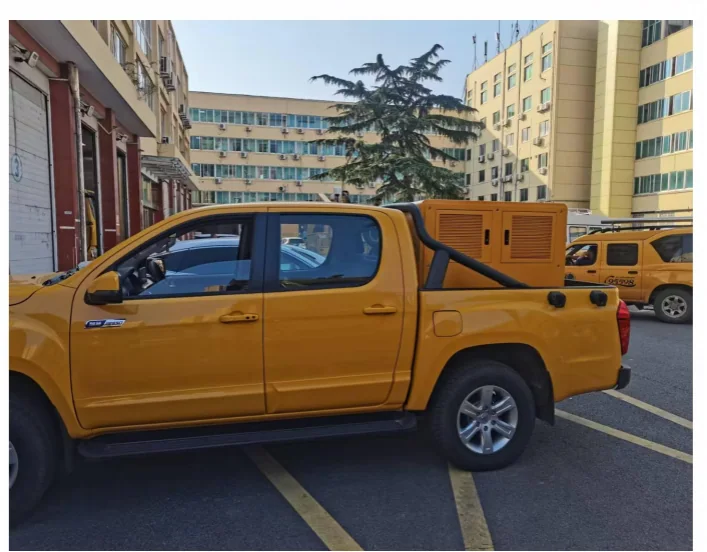

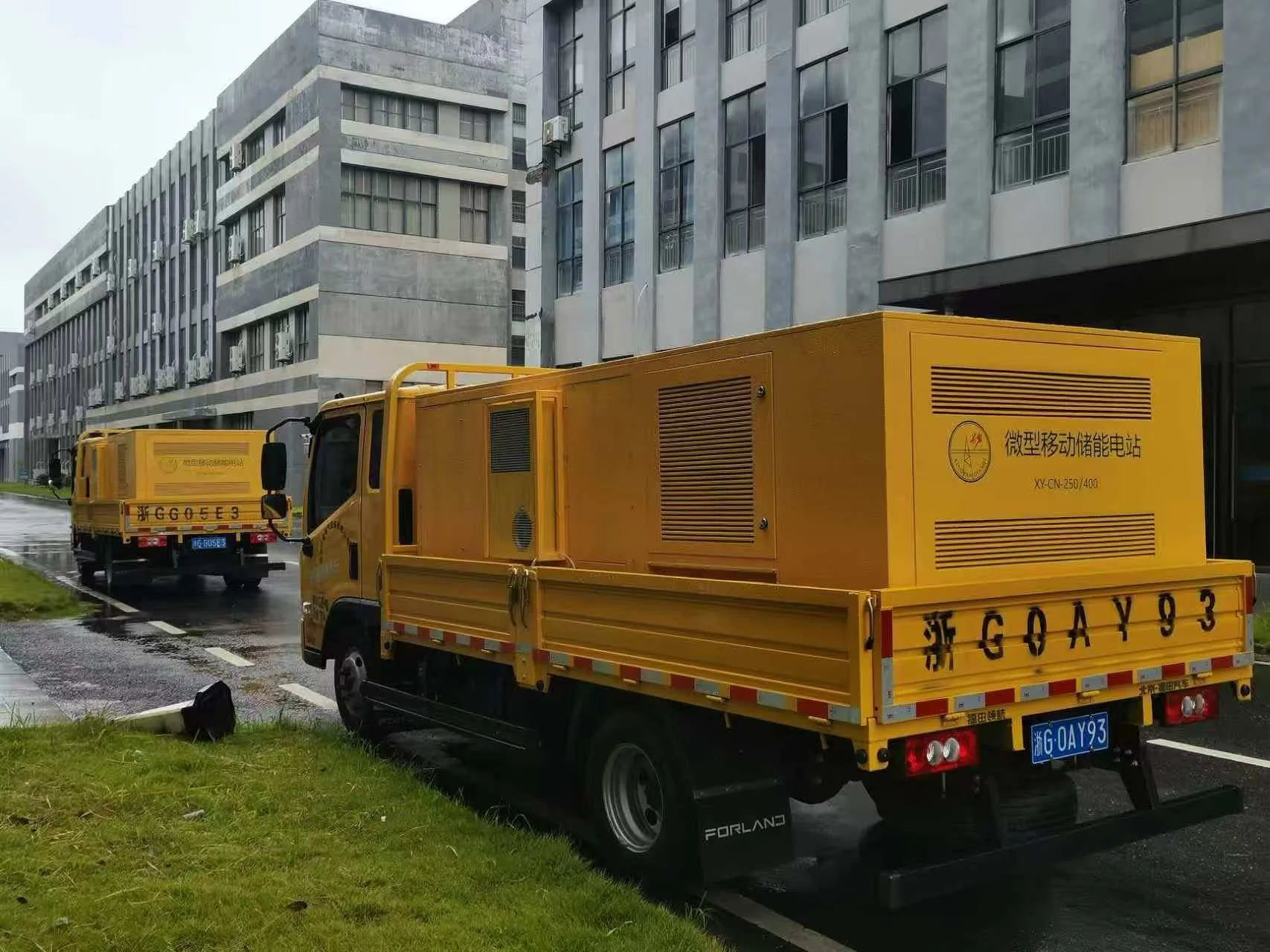

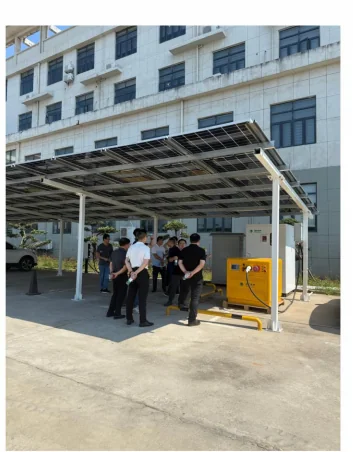

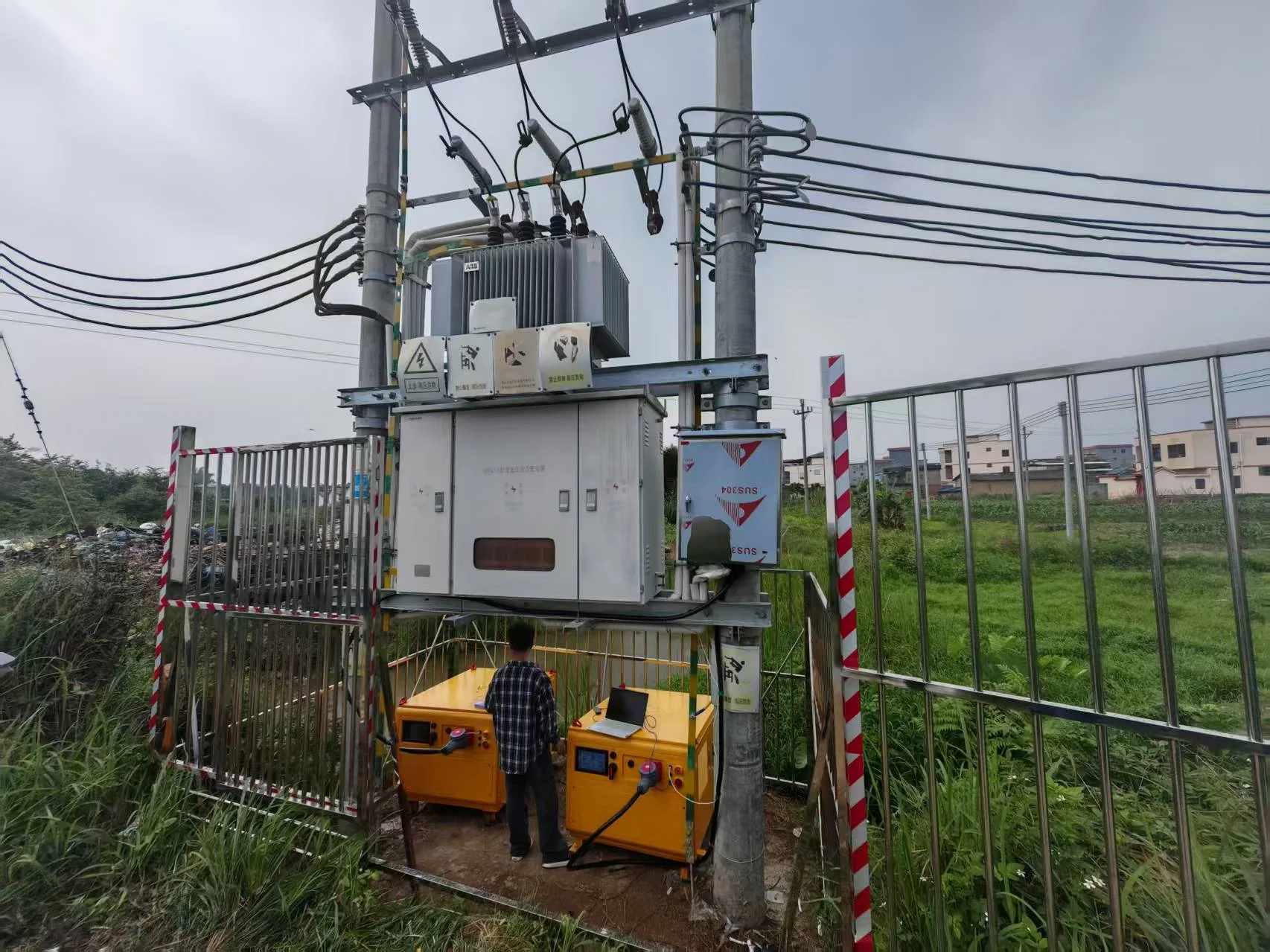

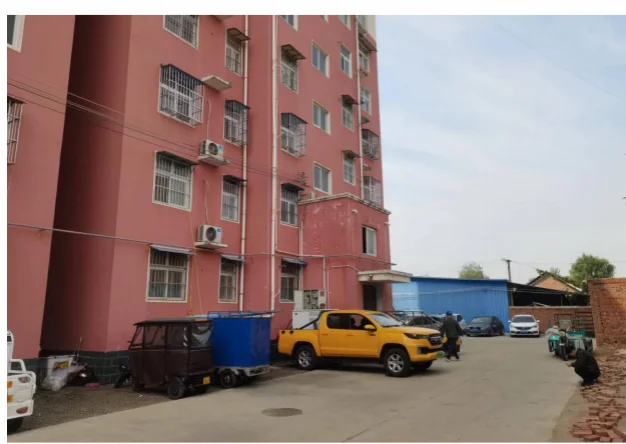

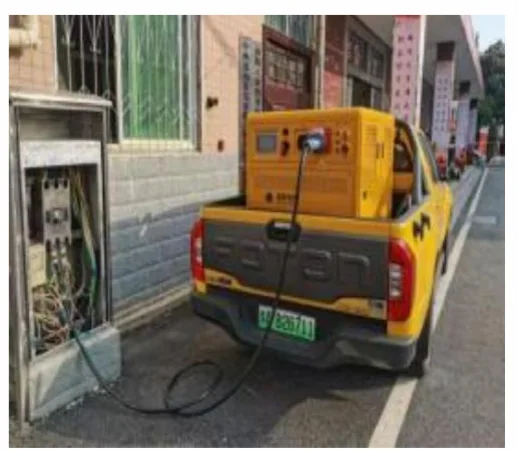

Every supplied case is shown: rural emergency power, farm supply, EV charging, residential backup, solar off-grid service, grid support and two mobile service vehicles.
