HVB-5K and HVB-10K
Stackable High-Voltage Batteries
Modular high-voltage LiFePO4 battery towers for residential and small-commercial storage, using 5.12 kWh or 10.24 kWh series modules.
Product overview
Built around the application.
Home energy storage systems allow excess renewable energy to be stored for periods of higher demand or when generation is unavailable. This can reduce grid dependence and increase household energy autonomy when the battery, inverter, protection design and load profile are engineered as one system.
The stackable HVB platform packages high-voltage battery modules into expandable towers for residential and small-commercial storage. HVB-5K uses 5.12 kWh modules and HVB-10K uses 10.24 kWh modules. Final configuration must follow the selected inverter voltage window, power requirement, communication protocol, installation environment and applicable local standards.
Two stackable module platforms
Select 5.12 kWh HVB-5K modules or 10.24 kWh HVB-10K modules, then engineer the tower around the inverter voltage window and required energy.

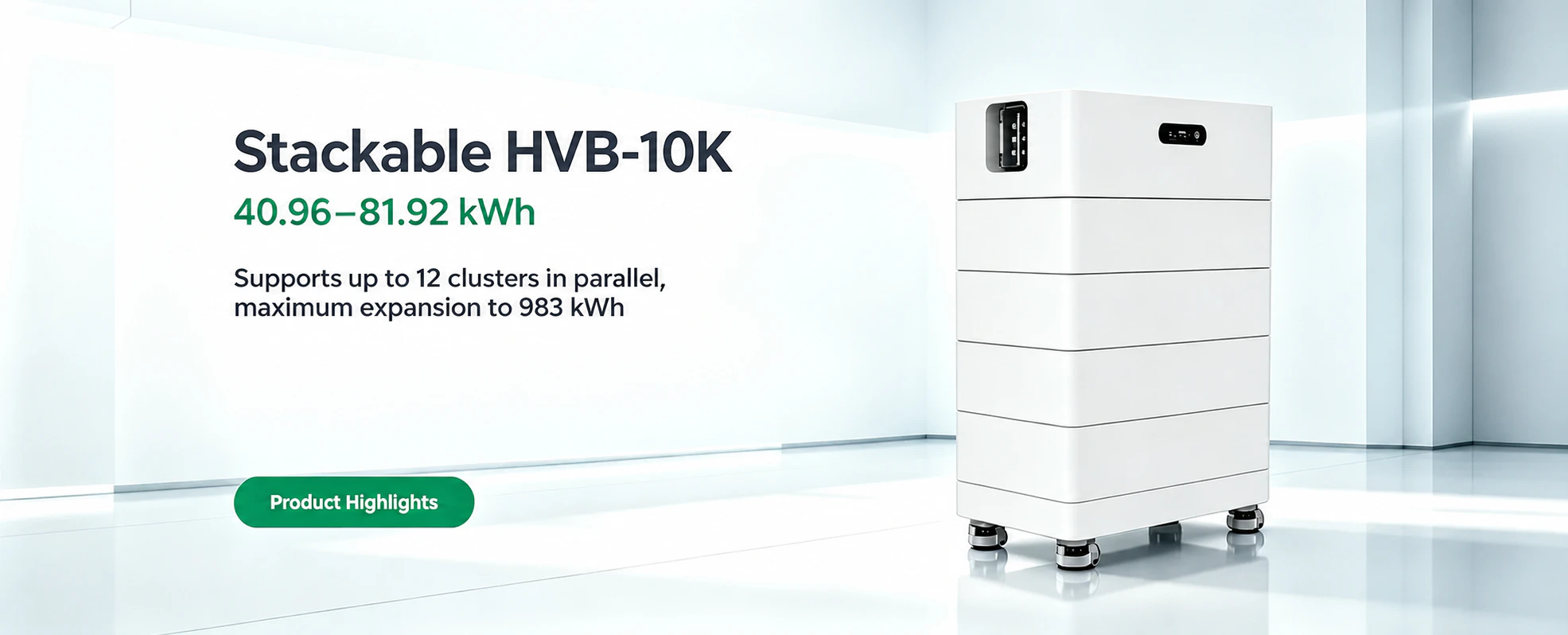

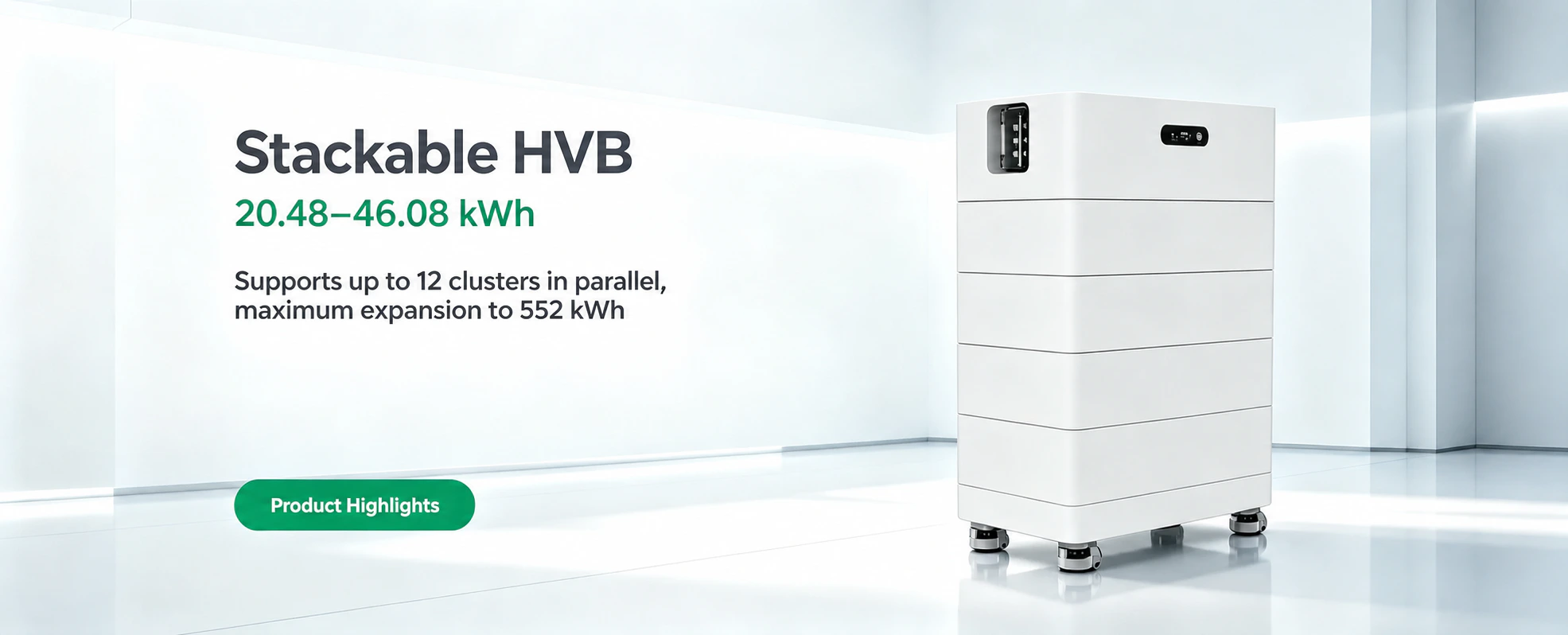

Multi-cluster expansion
Supports up to 12 clusters in parallel, scaling to 552 kWh with HVB-5K modules or 983 kWh with HVB-10K modules. Final sizing requires system engineering.
Installation-focused architecture
Zero-wiring, plug-and-play stacking and one-person installation simplify on-site deployment. Electrical work, commissioning and code compliance still require qualified project execution.
Integrated battery management
RS485/CAN communication, optional LED/Wi-Fi state-of-charge monitoring, real-time monitoring, remote control and OTA updates support system visibility.
IP54 enclosure protection
The IP54-rated enclosure supports installation in suitable indoor and protected outdoor environments. Final placement must follow site conditions and applicable installation requirements.
Defined operating envelope
The operating envelope covers charging from 0°C to 45°C, discharging from -20°C to 60°C and at least 5,000 cycles.

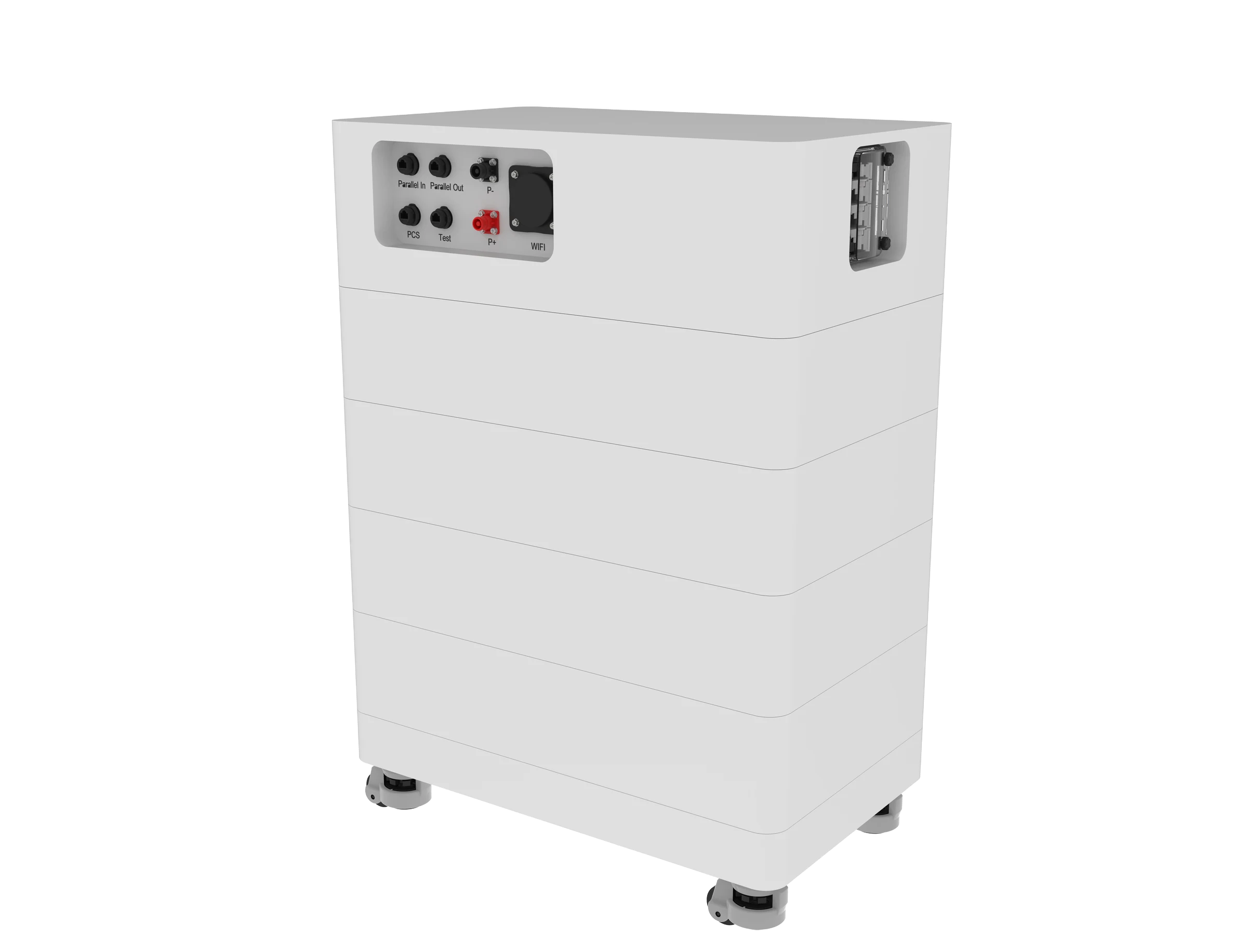

Product views
View the selected model.
Additional product views are shown where available for the selected model.
Product parameters
Model-specific specifications.
Compare the model-specific electrical, mechanical and operating parameters. Final configuration remains subject to application engineering.
Primary product parameters
- Rated energy
- 20.48 kWh
- Battery type
- LiFePO4 lithium battery
- Nominal voltage
- 409.6V
- Nominal capacity
- 50Ah
- Single-module energy
- 5.12 kWh
- Scalable system energy range
- 20–46 kWh
- Extensible modules
- 3–9
- Module weight
- 42 kg
- Maximum continuous charge/discharge current
- 50A
- System weight
- 190 kg
- System dimensions
- 650 × 830 × 400 mm
Supplied system configurations
- 4 modules · source label HVB-A-20KWH
- 409.6V · 20.48 kWh · 358.4–467.2V · 400 × 600 × 830 mm · 190 kg
- 5 modules · source label HVB-A-25KWH
- 512V · 25.6 kWh · 448–584V · 400 × 600 × 970 mm · 232 kg
- 6 modules · source label HVB-A-30KWH
- 614.4V · 30.72 kWh · 537.6–700V · 400 × 600 × 1,110 mm · 274 kg
- 7 modules · source label HVB-A-35KWH
- 716.8V · 35.84 kWh · 627.2–817.6V · 400 × 600 × 1,250 mm · 316 kg
- 8 modules · source label HVB-A-40KWH
- 819.2V · 40.96 kWh · 716.8–934.4V · 400 × 600 × 1,290 mm · 358 kg
Charge, discharge and module details
- Standard charge rate
- 0.5C
- Maximum charge current
- 50A
- Continuous discharge current
- 50A
- Maximum discharge current
- 100A for 3 seconds
- Single-module voltage
- 102.4V
- Single-module size
- 400 × 600 × 140 mm
- Single-module weight
- 42 kg
- Monthly self-consumption
- ≤3%
- Charge efficiency
- 100% at 0.5C
- Discharge efficiency
- 99% at 1C
Operation, protection and monitoring
- Nominal operating temperature
- 25°C ± 3°C (77°F ± 5°F)
- Discharge temperature
- -20°C to 60°C (-4°F to 140°F)
- Charge temperature
- 0°C to 45°C (32°F to 113°F)
- Storage temperature
- 0°C to 40°C (32°F to 104°F)
- Protection rating
- IP54
- Communication
- Optional RS485/CAN · compatible with most inverter protocols
- State-of-charge display
- Optional LED and Wi-Fi
- Cycle life
- ≥5,000 cycles
CE · IEC 62619 · UN38.3 · MSDS
Primary product parameters
- Rated energy
- 40.96 kWh
- Battery type
- LiFePO4 lithium battery
- Nominal voltage
- 409.6V
- Nominal capacity
- 100Ah
- Single-module energy
- 10.24 kWh
- Scalable system energy range
- 30–81.92 kWh
- Extensible modules
- 3–8
- Module weight
- 83 kg
- Maximum continuous charge/discharge current
- 100A
- System weight
- 360 kg
- System dimensions
- 600 × 800 × 980 mm
Supplied system configurations
- 4 modules · source label HVB-A-20KWH
- 409.6V · 40.96 kWh · 358.4–467.2V · 600 × 800 × 980 mm · approximately 350 kg
- 5 modules · source label HVB-A-25KWH
- 512V · 51.2 kWh · 448–584V · 600 × 800 × 1,157 mm · approximately 433 kg
- 6 modules · source label HVB-A-30KWH
- 614.4V · 61.4 kWh · 537.6–700V · 600 × 800 × 1,334 mm · approximately 516 kg
- 7 modules · source label HVB-A-35KWH
- 716.8V · 71.68 kWh · 627.2–817.6V · 600 × 800 × 1,511 mm · approximately 599 kg
- 8 modules · source label HVB-A-40KWH
- 819.2V · 81.92 kWh · 716.8–934.4V · 600 × 800 × 1,688 mm · approximately 682 kg
Charge, discharge and module details
- Standard charge rate
- 0.5C
- Maximum charge current
- 100A
- Continuous discharge current
- 100A
- Maximum discharge current
- 200A for 3 seconds
- Single-module voltage
- 102.4V
- Single-module size
- 600 × 800 × 177 mm
- Single-module weight
- 83 kg
- Monthly self-consumption
- ≤3%
- Charge efficiency
- 100% at 0.5C
- Discharge efficiency
- 99% at 1C
Operation, protection and monitoring
- Nominal operating temperature
- 25°C ± 3°C (77°F ± 5°F)
- Discharge temperature
- -20°C to 60°C (-4°F to 140°F)
- Charge temperature
- 0°C to 45°C (32°F to 113°F)
- Storage temperature
- 0°C to 40°C (32°F to 104°F)
- Protection rating
- IP54
- Communication
- Optional RS485/CAN · compatible with most inverter protocols
- State-of-charge display
- Optional LED and Wi-Fi
- Cycle life
- ≥5,000 cycles
CE · IEC 62619 · UN38.3 · MSDS
Applications
Where this family fits.
Model selection should follow the real load, duty cycle, interface, installation environment and destination-market requirements.
Residential solar self-consumption
Store excess renewable generation for evening demand and periods when generation is unavailable.
Residential backup energy
Configure compatible inverter and battery capacity around priority household loads and required backup duration.
Small commercial energy storage
Expand tower and cluster capacity around the site load, available space and inverter voltage window.
