BYH-16K.Pro

BYH-16K.Pro Residential Battery

A 16.07 kWh, 51.2V LiFePO4 residential battery for higher-capacity solar self-consumption and selected backup applications.

Energy16.07 kWh

Capacity314Ah

Current200A continuous

Weight125 kg

Discuss this product View specifications

Selected model16.07 kWh Residential Battery

Product overview

Built around the application.

The BYH-16K.Pro is the higher-capacity standalone model in YAHUA’s residential battery range. Its final system design should be matched to inverter capability, load profile, required backup duration, installation conditions and destination-market requirements.

16.07 kWh capacity

A higher-capacity 51.2V residential platform with a nominal capacity of 314Ah.

LiFePO4 platform

Lithium iron phosphate chemistry rated for at least 6,000 cycles.

Intelligent BMS

Integrated battery management supports electrical protection and system monitoring.

Movable enclosure

A standalone cabinet with casters supports positioning and service access during installation.

Inverter communication

RS485 and CAN interfaces support communication with compatible inverter protocols.

Parallel expansion

Supports parallel expansion subject to inverter and system engineering.

Product views

View the selected model.

Additional product views are shown where available for the selected model.

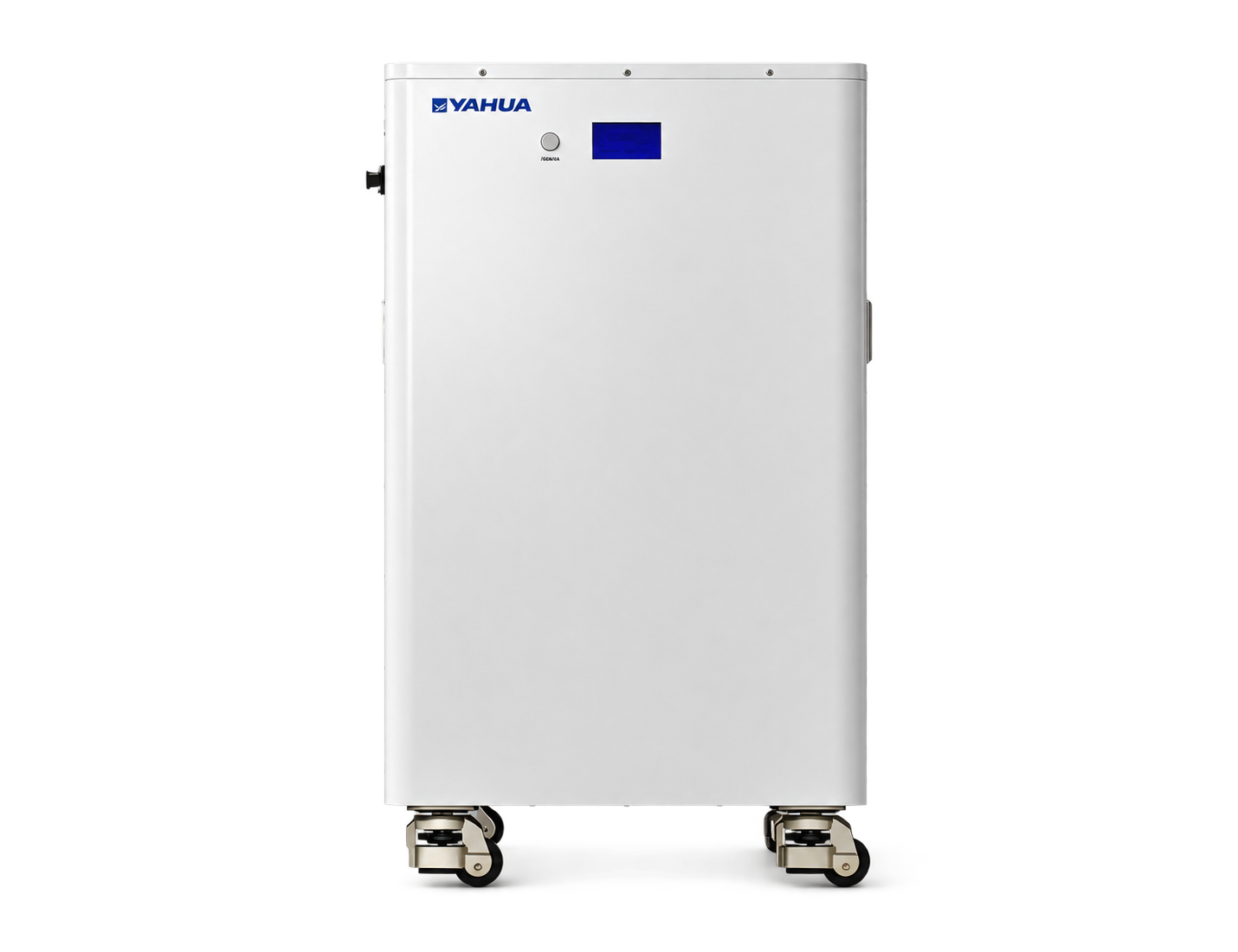

BYH-16K.Pro front enclosure view — Front enclosure view

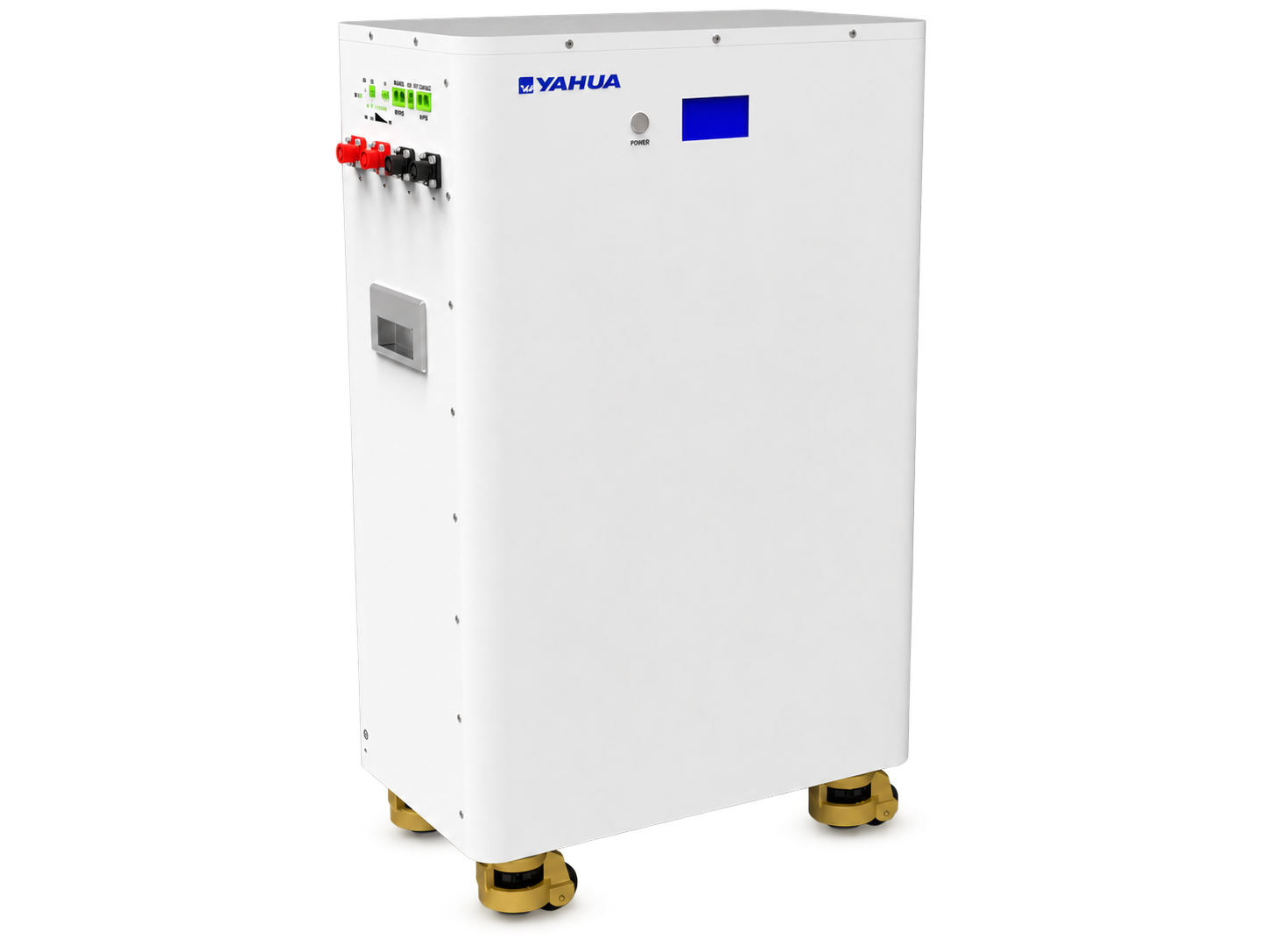

BYH-16K.Pro angled connection-side view — Angled connection-side view

Product parameters

Model-specific specifications.

Compare the model-specific electrical, mechanical and operating parameters. Final configuration remains subject to application engineering.

Selected modelBYH-16K.Pro

Electrical

Rated energy: 16.07 kWh
Nominal voltage: 51.2V
Nominal capacity: 314Ah
Maximum continuous charge/discharge current: 200A
Charge voltage: 58.4V
Maximum pulse current: 210A for less than 3 seconds

Mechanical and operating

Battery chemistry: LiFePO4
Dimensions: 780 × 550 × 345 mm
Weight: 125 kg
Protection rating: IP21
Discharge temperature: -20°C to 60°C
Charge temperature: 0°C to 45°C
Storage temperature: 0°C to 40°C

Communication and lifecycle

Communication: RS485 · RS232 · CAN
SOC display: Screen · LED · PC software
Cycle life: At least 6,000 cycles
Maximum parallel connections: Up to 50, subject to model and inverter engineering
Certifications: CE · IEC 62619 · UN38.3 · MSDS

Certifications

CE · IEC 62619 · UN38.3 · MSDS

Applications

Where this family fits.

Model selection should follow the real load, duty cycle, interface, installation environment and destination-market requirements.

Higher-capacity solar storage

Store more daytime solar generation for later residential consumption.

Residential backup

Coordinate the 16.07 kWh battery with inverter capability and the household's selected critical loads.

Selected light-commercial use

Consider the standalone cabinet for compatible higher-capacity light-commercial energy requirements.

Engineering scope

One family, configurable layers.

Product features

16.07 kWh, 51.2V LiFePO4 platform
Standalone wheeled enclosure
RS485 and CAN inverter communication
Solar self-use and backup applications

Customization

Inverter protocol matching
System capacity and accessories
Installation, cables and protection configuration

Product advantages

Core advantages.

Higher usable capacityThe 16.07 kWh platform supports larger residential storage requirements.

Standalone installationA wheeled cabinet supports practical positioning and service access.

High-cycle platformRated for at least 6,000 cycles.

System integrationRS485 and CAN interfaces support compatible inverter communication.
