BYH Pro wall-mounted series
BYH Pro Wall-Mounted Batteries
Space-conscious 51.2V LiFePO4 wall-mounted batteries in 5.12, 7.68 and 10.24 kWh configurations for residential solar and backup applications.
Product overview
Built around the application.
The BYH Pro wall-mounted series provides three residential storage capacities in a compact enclosure format. Select the model according to the inverter, load profile, required backup duration, installation surface and destination-market requirements.
LiFePO4 platform
A residential LiFePO4 battery platform rated for more than 6,000 cycles at 0.2C and 100% depth of discharge.
Intelligent BMS
Integrated battery management supports electrical protection and system monitoring.
Wall-mounted design
A compact enclosure format designed to preserve usable floor space.
Inverter communication
RS485 and CAN interfaces support communication with compatible inverter protocols.
Remote visibility
Monitoring is available through mobile applications or web portals.
Scalable capacity
Supports up to 50 parallel units, subject to the selected model, inverter and application engineering.

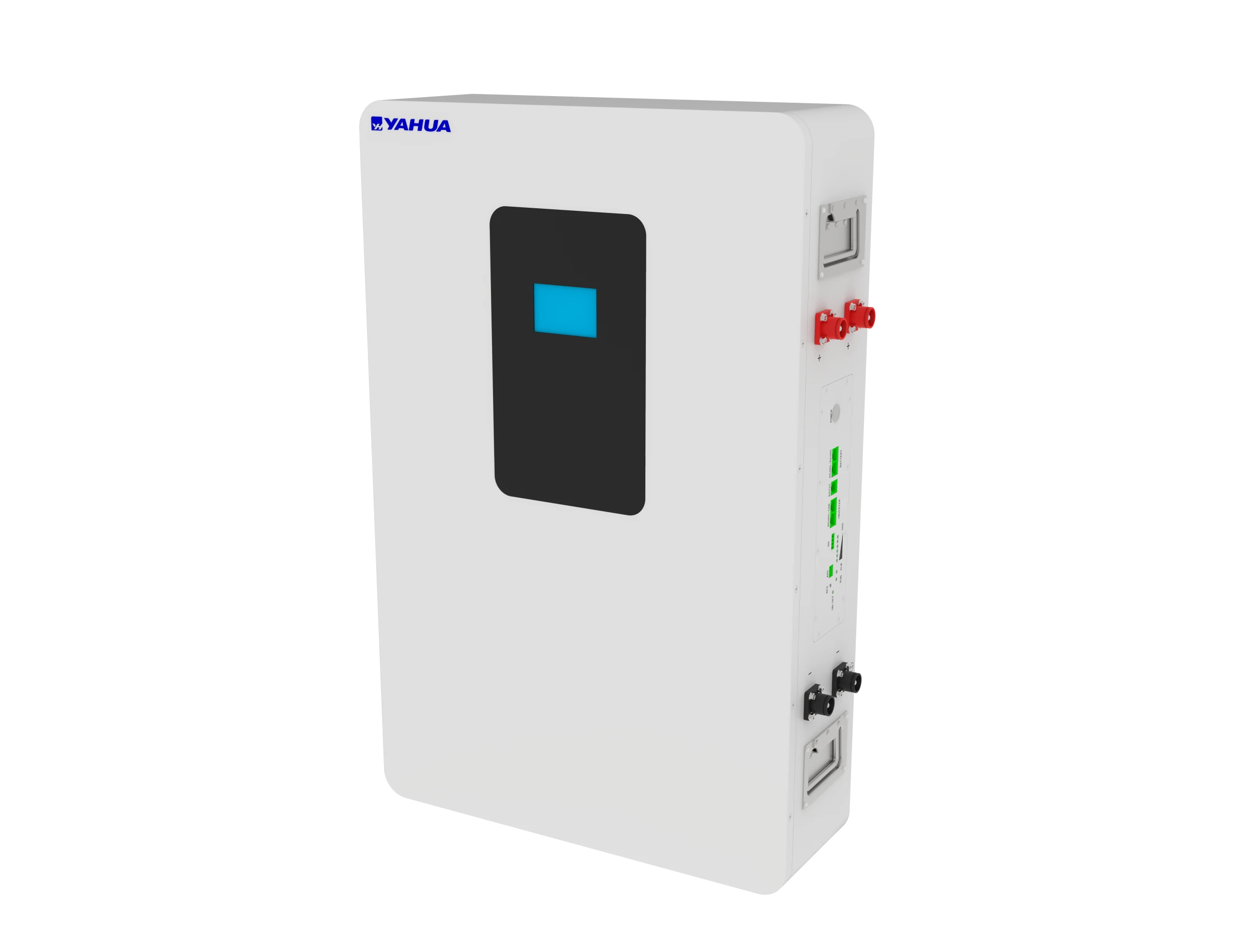

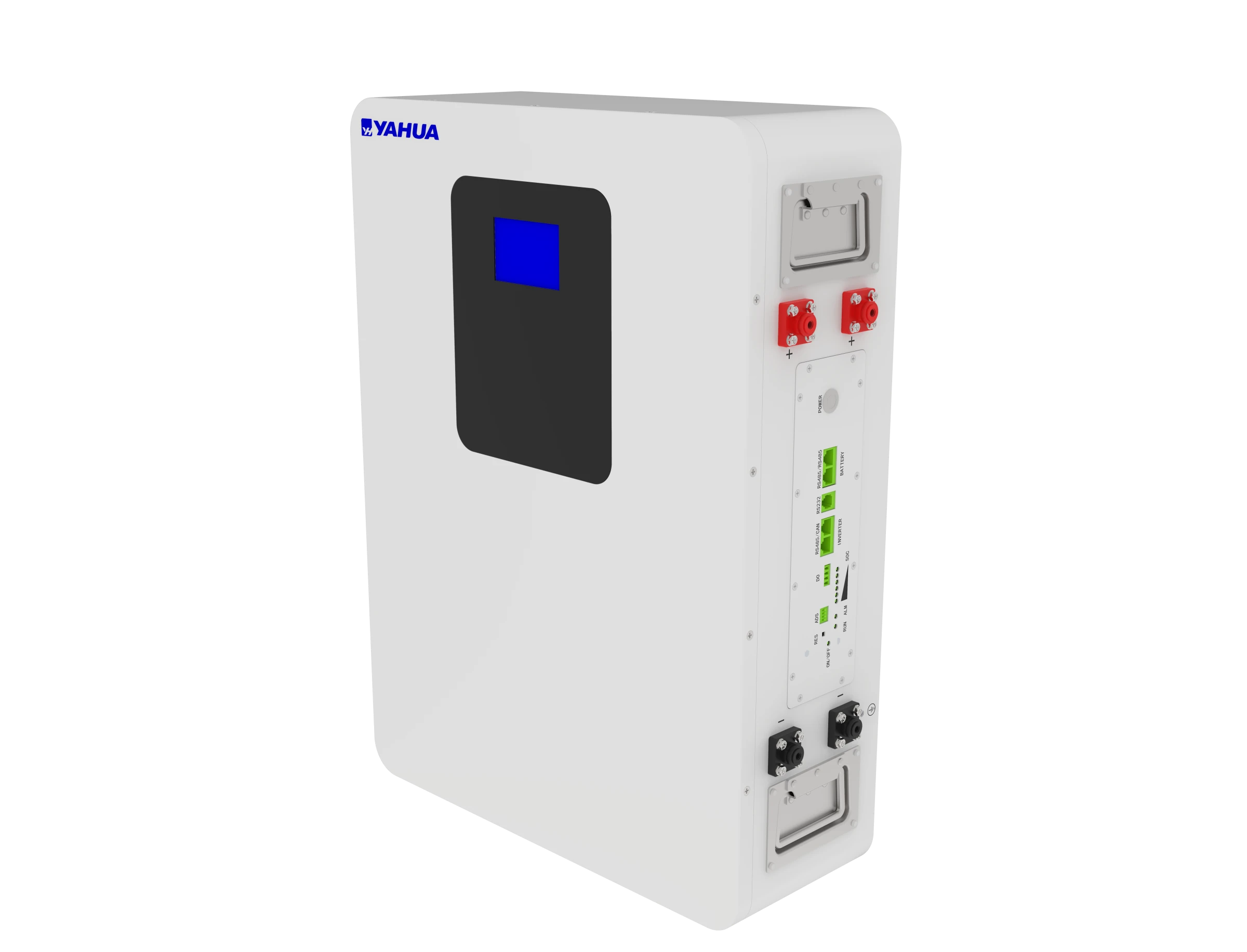

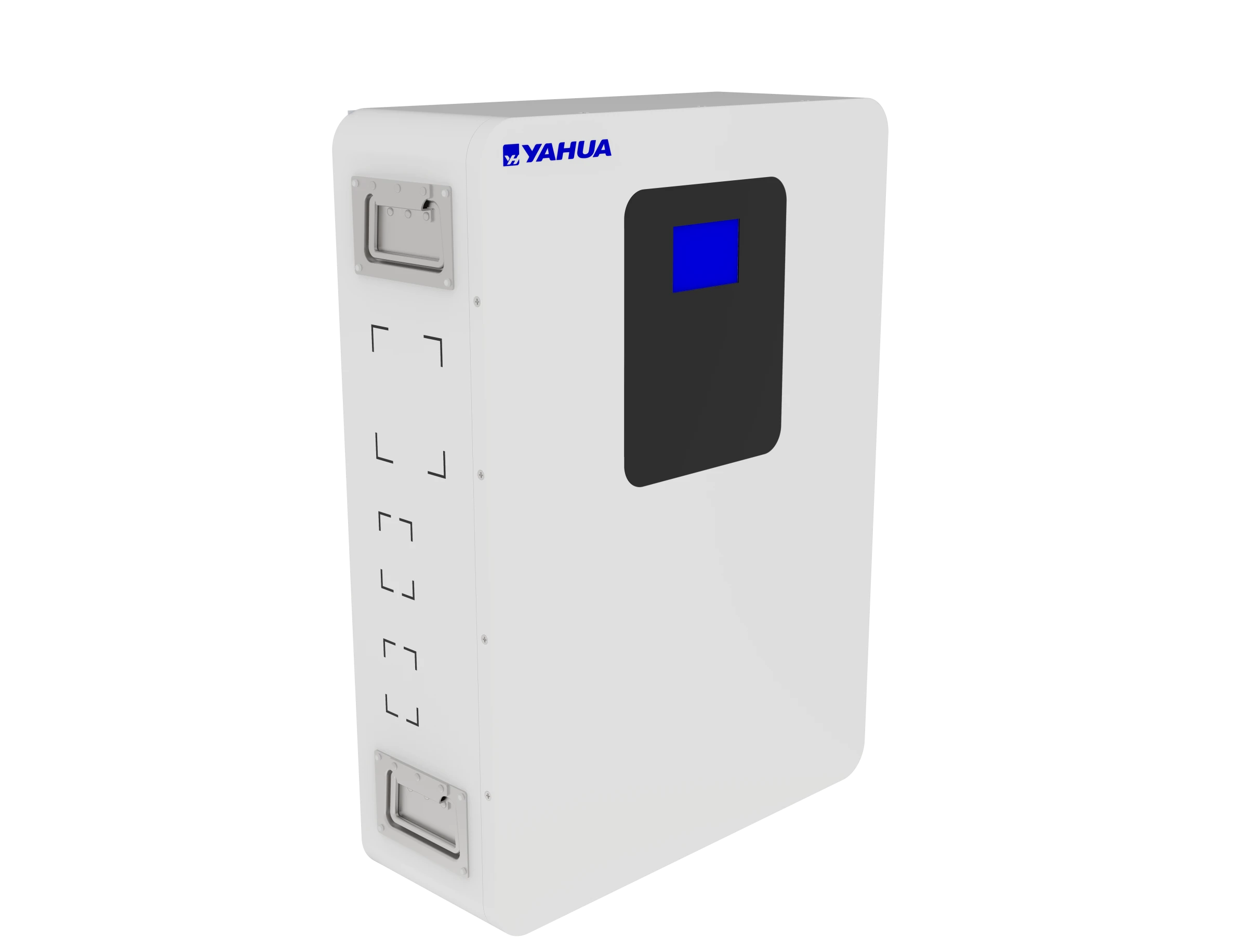

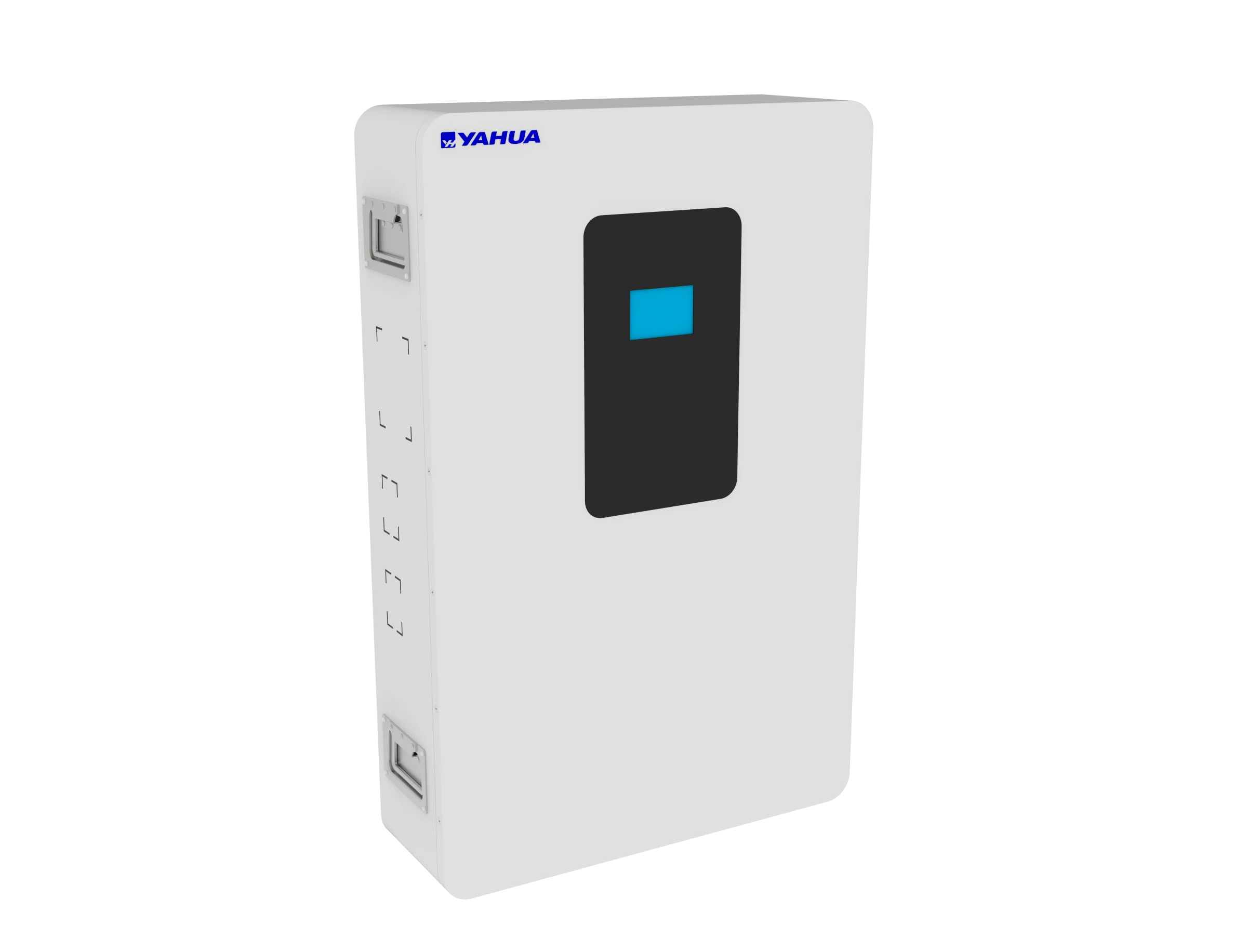

Product views
View the selected model.
Additional product views are shown where available for the selected model.
Product parameters
Model-specific specifications.
Compare the model-specific electrical, mechanical and operating parameters. Final configuration remains subject to application engineering.
Electrical
- Rated energy
- 5.12 kWh
- Nominal voltage
- 51.2V
- Nominal capacity
- 100Ah
- Maximum continuous charge/discharge current
- 100A
- Charge voltage
- 58.4V
- Maximum pulse current
- 110A for less than 3 seconds
Mechanical and operating
- Battery chemistry
- LiFePO4
- Dimensions
- 600 × 440 × 167 mm
- Weight
- 45 kg
- Protection rating
- IP21
- Discharge temperature
- -20°C to 60°C
- Charge temperature
- 0°C to 45°C
- Storage temperature
- 0°C to 40°C
Communication and lifecycle
- Communication
- RS485 · RS232 · CAN
- SOC display
- Screen · LED · PC software
- Cycle life
- More than 6,000 cycles at 0.2C and 100% DOD
- Maximum parallel connections
- Up to 50, subject to model and inverter engineering
- Certifications
- CE · IEC 62619 · UN38.3 · MSDS
CE · IEC 62619 · UN38.3 · MSDS
Electrical
- Rated energy
- 7.68 kWh
- Nominal voltage
- 51.2V
- Nominal capacity
- 150Ah
- Maximum continuous charge/discharge current
- 100A
- Charge voltage
- 58.4V
Mechanical and operating
- Battery chemistry
- LiFePO4
- Dimensions
- 780 × 505 × 167 mm
- Weight
- 55 kg
- Protection rating
- IP21
- Discharge temperature
- -20°C to 60°C
- Charge temperature
- 0°C to 45°C
- Storage temperature
- 0°C to 40°C
Communication and lifecycle
- Communication
- RS485 · RS232 · CAN
- SOC display
- Screen · LED · PC software
- Cycle life
- More than 6,000 cycles at 0.2C and 100% DOD
- Maximum parallel connections
- Up to 50, subject to model and inverter engineering
- Certifications
- CE · IEC 62619 · UN38.3 · MSDS
CE · IEC 62619 · UN38.3 · MSDS
Electrical
- Rated energy
- 10.24 kWh
- Nominal voltage
- 51.2V
- Nominal capacity
- 200Ah
- Maximum continuous charge/discharge current
- 200A
- Charge voltage
- 58.4V
- Maximum pulse current
- 210A for less than 3 seconds
Mechanical and operating
- Battery chemistry
- LiFePO4
- Dimensions
- 780 × 505 × 167 mm
- Weight
- 87 kg
- Protection rating
- IP21
- Discharge temperature
- -20°C to 60°C
- Charge temperature
- 0°C to 45°C
- Storage temperature
- 0°C to 40°C
Communication and lifecycle
- Communication
- RS485 · RS232 · CAN
- SOC display
- Screen · LED · PC software
- Cycle life
- More than 6,000 cycles at 0.2C and 100% DOD
- Maximum parallel connections
- Up to 50, subject to model and inverter engineering
- Certifications
- CE · IEC 62619 · UN38.3 · MSDS
CE · IEC 62619 · UN38.3 · MSDS
Applications
Where this family fits.
Model selection should follow the real load, duty cycle, interface, installation environment and destination-market requirements.
Solar self-consumption
Store surplus daytime generation for later household use.
Residential backup
Match the selected wall-mounted battery with the inverter and the household's critical loads.
Small commercial storage
Space-conscious wall installation for selected light-commercial energy requirements.
Engineering scope
One family, configurable layers.
Product features
- Wall-mounted 51.2V LiFePO4 format
- RS485 and CAN inverter communication
- Solar self-use and backup applications
- Parallel expansion architecture
Customization
- Inverter protocol matching
- System capacity and accessories
- Installation and cable configuration
Product advantages
Core advantages.
