BYH KT.Pro rack and floor-standing series
BYH KT.Pro Rack & Floor Batteries
Rack and floor-standing 51.2V LiFePO4 batteries in 5.12, 7.68 and 10.24 kWh configurations for flexible residential installation.
Product overview
Built around the application.
The BYH KT.Pro series groups rack and floor-standing residential batteries across three capacity levels. Final configuration should be matched to the inverter, load profile, installation method, system accessories and destination-market requirements.
LiFePO4 platform
A residential LiFePO4 battery platform rated for at least 6,000 cycles.
Rack-compatible format
Drawer-style enclosures support organized cabinet, rack or floor-standing installation.
Intelligent BMS
Integrated battery management supports electrical protection and system monitoring.
Inverter communication
RS485 and CAN interfaces support communication with compatible inverter protocols.
Service access
Front-facing controls, communication ports and power connections simplify integration and maintenance access.
Scalable capacity
Supports up to 50 parallel units, subject to the selected model, inverter and application engineering.

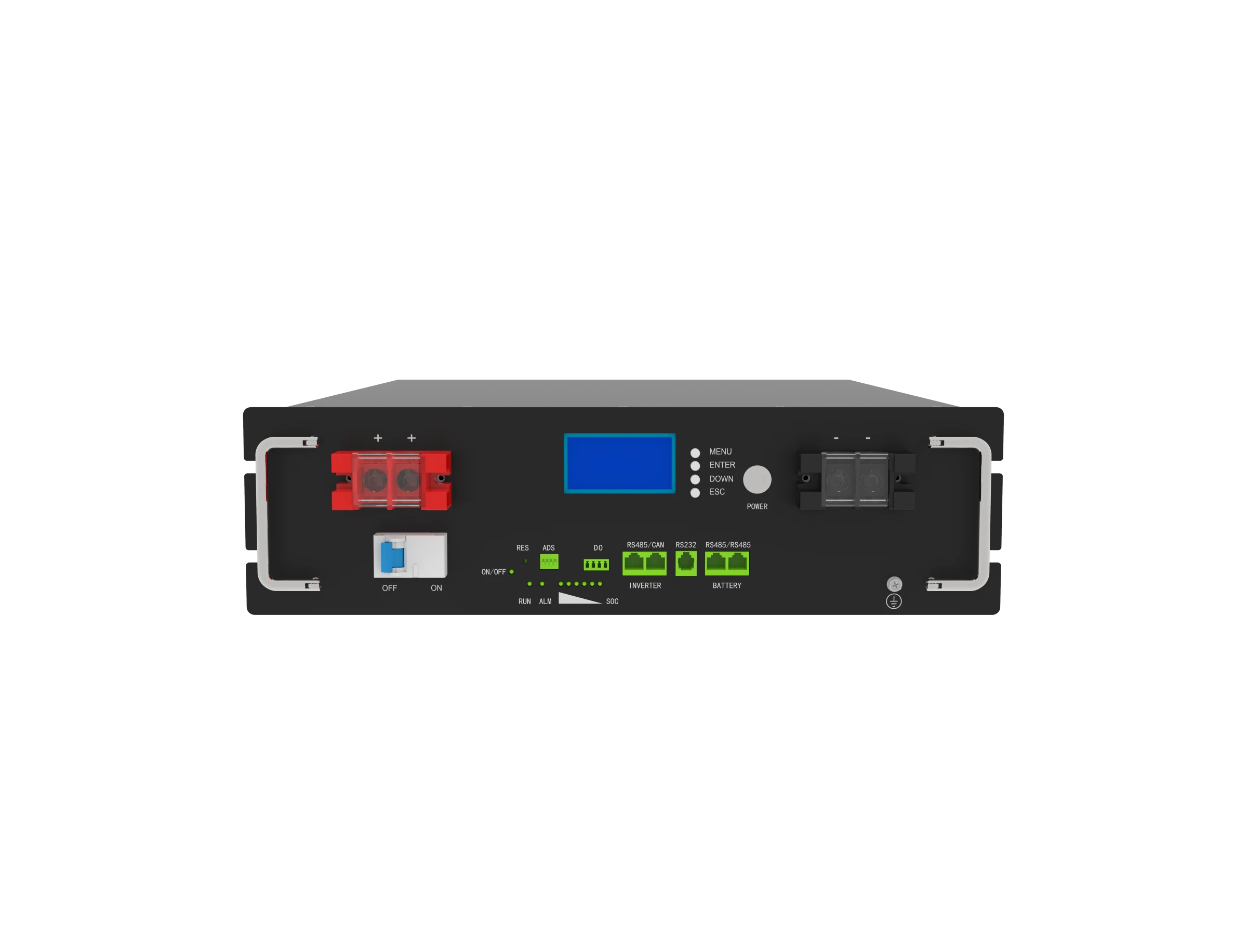

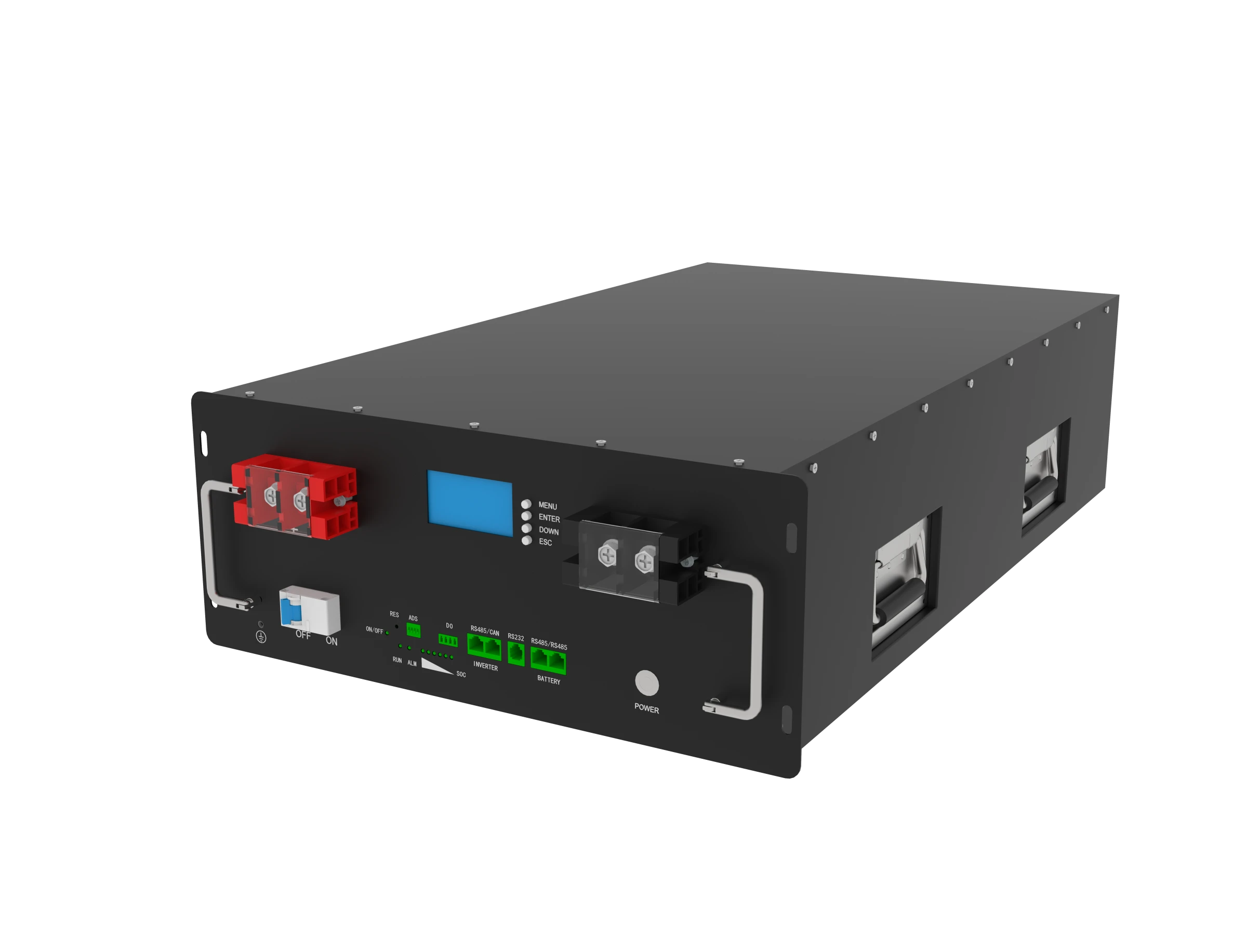

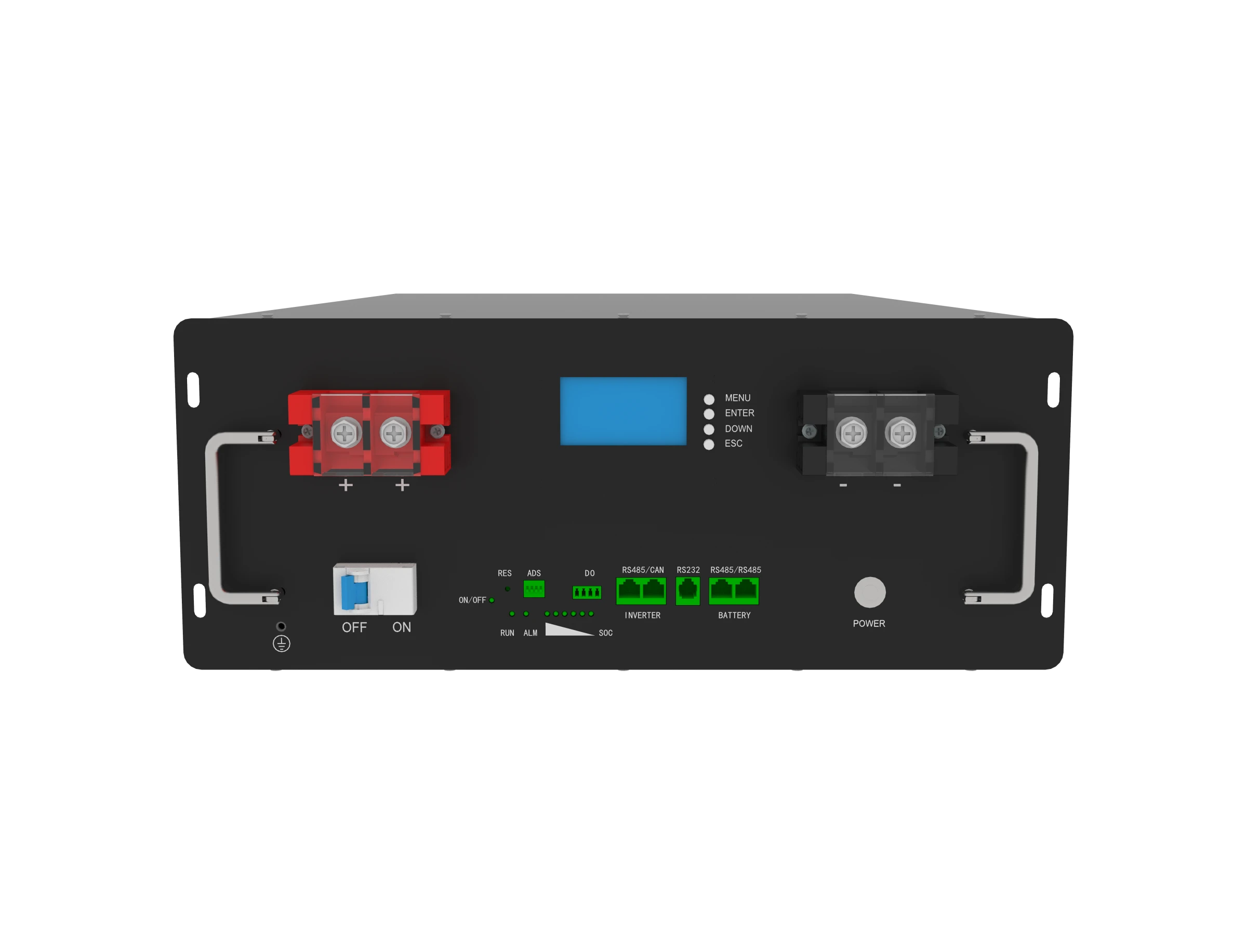

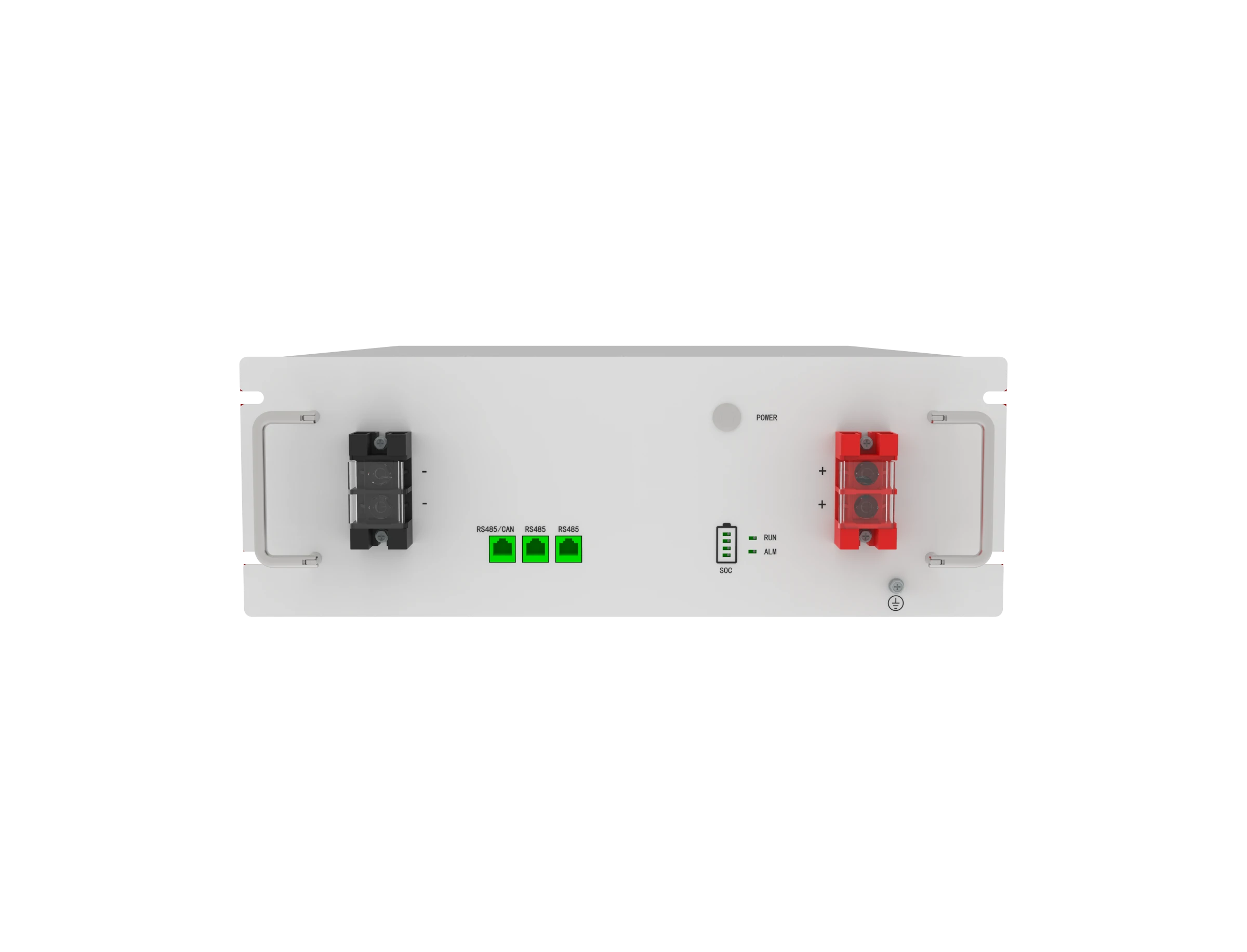

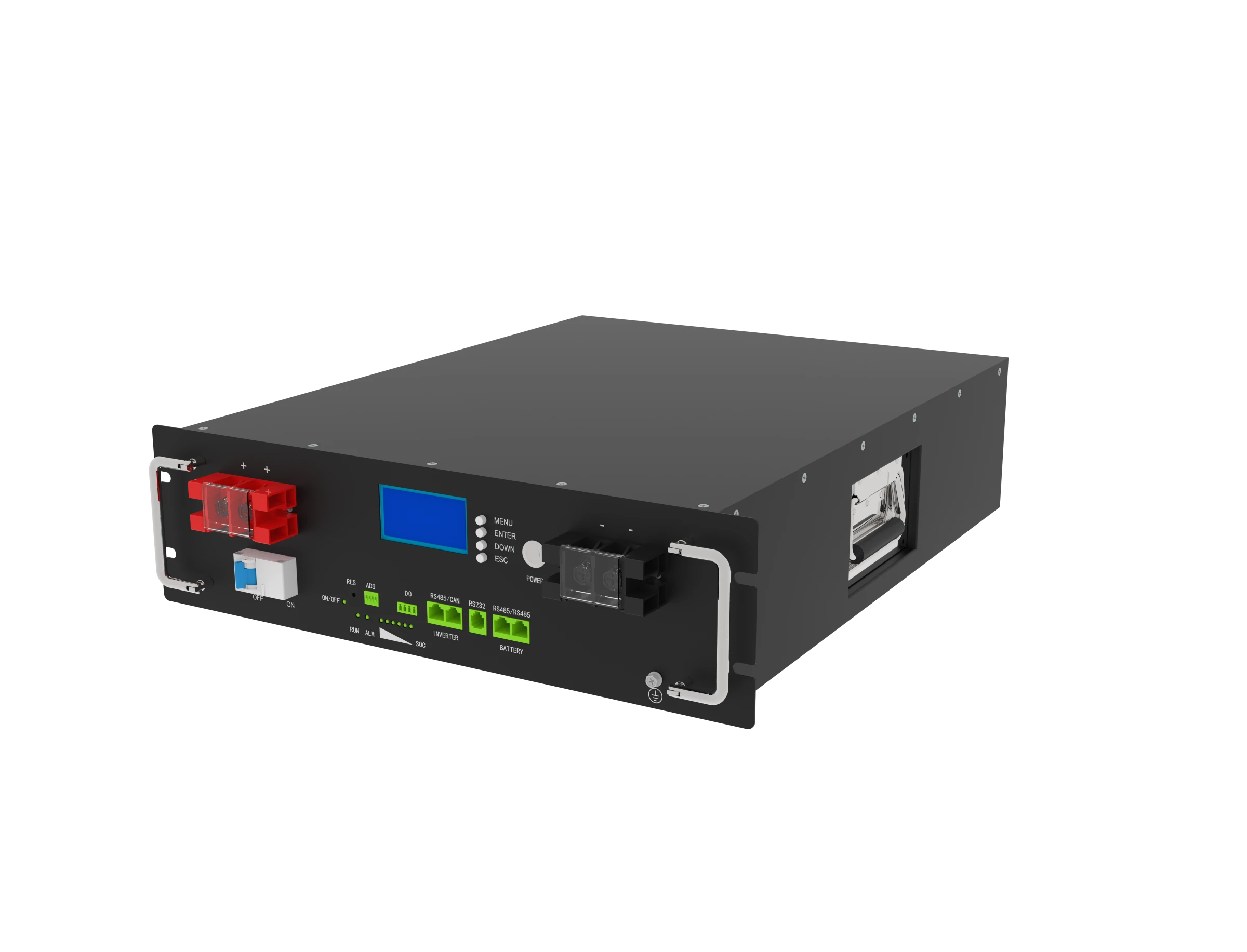

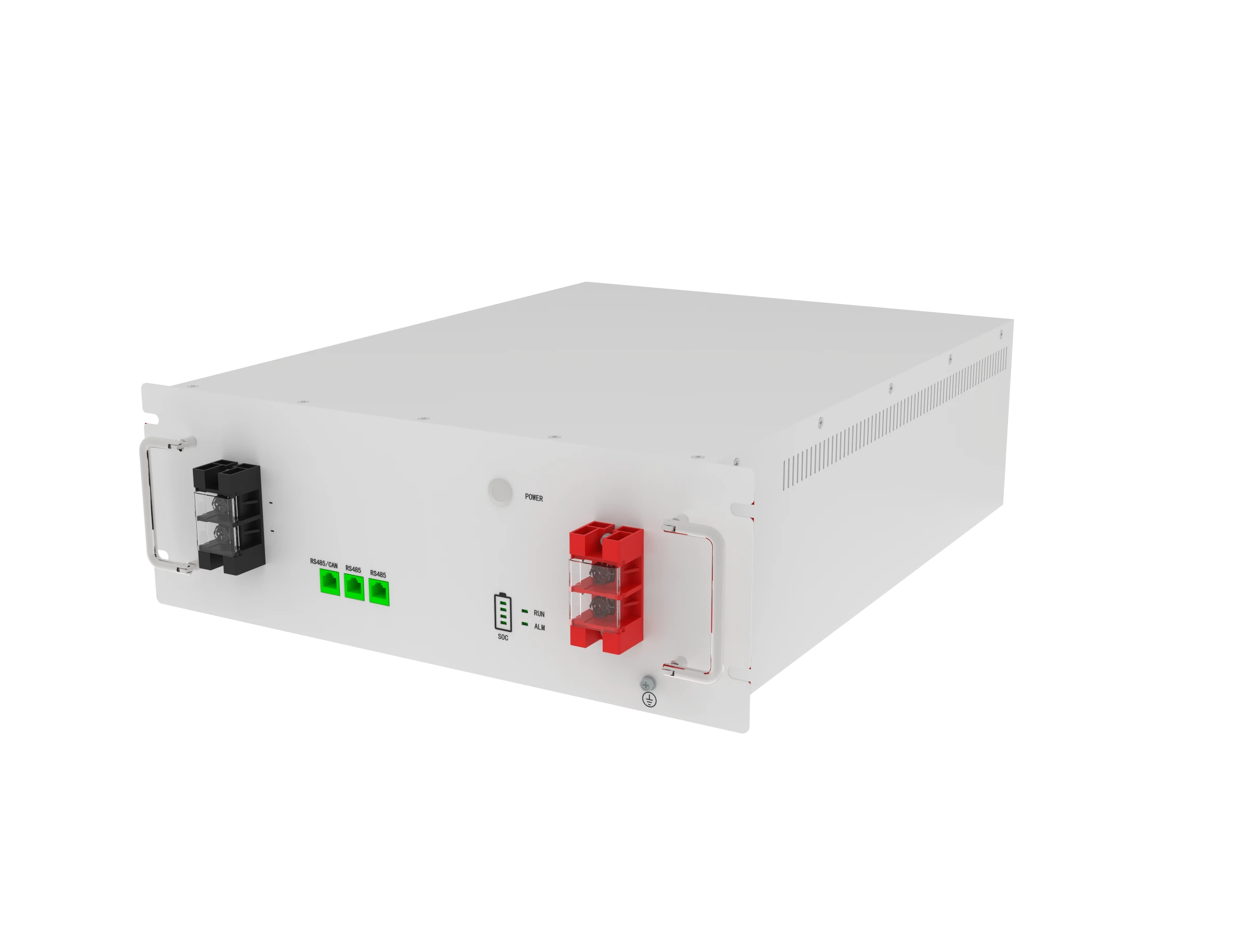

Product views
View the selected model.
Additional product views are shown where available for the selected model.
Product parameters
Model-specific specifications.
Compare the model-specific electrical, mechanical and operating parameters. Final configuration remains subject to application engineering.
Electrical
- Rated energy
- 5.12 kWh
- Nominal voltage
- 51.2V
- Nominal capacity
- 100Ah
- Maximum continuous charge/discharge current
- 100A
- Charge voltage
- 58.4V
- Maximum pulse current
- 110A for less than 3 seconds
Mechanical and operating
- Battery chemistry
- LiFePO4
- Dimensions
- 510 × 482 × 133 mm
- Weight
- 43 kg
- Protection rating
- IP21
- Discharge temperature
- -20°C to 60°C
- Charge temperature
- 0°C to 45°C
- Storage temperature
- 0°C to 40°C
Communication and lifecycle
- Communication
- RS485 · RS232 · CAN
- SOC display
- Screen · LED · PC software
- Cycle life
- At least 6,000 cycles
- Maximum parallel connections
- Up to 50, subject to model and inverter engineering
- Certifications
- CE · IEC 62619 · UN38.3 · MSDS
CE · IEC 62619 · UN38.3 · MSDS
Electrical
- Rated energy
- 7.68 kWh
- Nominal voltage
- 51.2V
- Nominal capacity
- 150Ah
- Maximum continuous charge/discharge current
- 150A
- Charge voltage
- 58.4V
Mechanical and operating
- Battery chemistry
- LiFePO4
- Dimensions
- 520 × 482 × 177 mm
- Weight
- 65 kg
- Protection rating
- IP21
- Discharge temperature
- -20°C to 60°C
- Charge temperature
- 0°C to 45°C
- Storage temperature
- 0°C to 40°C
Communication and lifecycle
- Communication
- RS485 · RS232 · CAN
- SOC display
- Screen · LED · PC software
- Cycle life
- At least 6,000 cycles
- Maximum parallel connections
- Up to 50, subject to model and inverter engineering
- Certifications
- CE · IEC 62619 · UN38.3 · MSDS
CE · IEC 62619 · UN38.3 · MSDS
Electrical
- Rated energy
- 10.24 kWh
- Nominal voltage
- 51.2V
- Nominal capacity
- 200Ah
- Maximum continuous charge/discharge current
- 200A
- Charge voltage
- 58.4V
- Maximum pulse current
- 210A for less than 3 seconds
Mechanical and operating
- Battery chemistry
- LiFePO4
- Dimensions
- 580 × 482 × 177 mm
- Weight
- 85 kg
- Protection rating
- IP21
- Discharge temperature
- -20°C to 60°C
- Charge temperature
- 0°C to 45°C
- Storage temperature
- 0°C to 40°C
Communication and lifecycle
- Communication
- RS485 · RS232 · CAN
- SOC display
- Screen · LED · PC software
- Cycle life
- At least 6,000 cycles
- Maximum parallel connections
- Up to 50, subject to model and inverter engineering
- Certifications
- CE · IEC 62619 · UN38.3 · MSDS
CE · IEC 62619 · UN38.3 · MSDS
Applications
Where this family fits.
Model selection should follow the real load, duty cycle, interface, installation environment and destination-market requirements.
Rack-integrated storage
Install the battery in a compatible cabinet or equipment rack for an organized residential energy-storage system.
Floor-standing deployment
Configure selected systems as floor-standing battery assemblies where wall mounting is not preferred.
Solar and backup systems
Match battery capacity, inverter capability and critical loads for solar self-consumption or selected backup requirements.
Engineering scope
One family, configurable layers.
Product features
- Rack and floor-standing 51.2V LiFePO4 format
- Front-access power and communication interfaces
- RS485 and CAN inverter communication
- Parallel expansion architecture
Customization
- Cabinet or rack integration
- Inverter protocol matching
- System capacity, cables and accessories
